Grooved Rolls
Product Overview

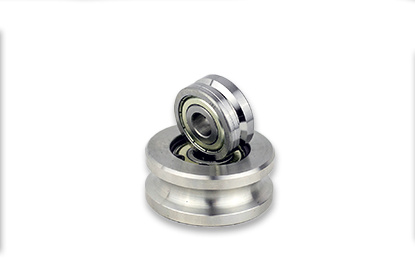

Sjogren uses its engineering and machining expertise to create precision grooved rolls that fit any straightener assembly.
These rolls, with precision-cut grooves, cater to various needs. These include flat stock, bar stock, round and shaped wire and cables, including those used on oil and gas rigs. We also offer high-speed rolls to boost spindle uptime.
Sjogren’s capabilities for innovative designs reduce disruptions, lower costs, and improve durability, making these grooved rolls the top choice in the market.
Key Benefits
Explore the essential features of our grooved rolls with our interactive model, or scroll down to access detailed technical specifications, including standard roll measurements and technical information.
1 Completely Customizable
2 Sjogren Alignment Marker

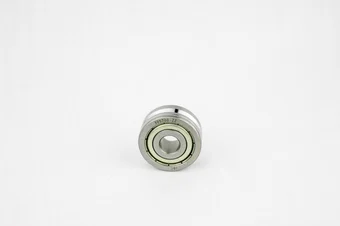

This alignment marker effectively addresses bearing width variations, simplifying the process for operators to correctly mount replacement rollers and uphold tolerances.
3 High Tensile Strength Rollers
From custom u-grooves, square, star, cotter pin shapes, we have the precision to match your needs. We can also manufacture non-metallic straightener roll surfaces.
We design to fit your production.
4 Compatibility
5 High-Speed Options
The High Speed Cartridge Assembly is adaptable to various straighteners and accommodates different roller sizes or groove shapes. This assembly features two pre-loaded bearings, ensuring exceptional straightener performance even at elevated line speeds.
The cartridge design stops over-tightening during replacement, removing a common mistake often made by less experienced operators.
Why Choose Sjogren's Grooved Rolls For Your Straightener?
1. Accuracy
2. Angle
Precision. Is. Everything.
3. Centerline
4. Clean and Mean
Industries and Applications
Sjogren grooved rolls are trusted worldwide by manufacturers in almost any industry:
Any Groove, Any Roller
Sjogren’s precision and accuracy are unmatched in the industry. with standard concentricity of .0005″ (0,0127 mm), the hairpin effect is minimized. Our centerline parallel edge is within .0005″ (0,0127 mm). Here are a few common groove shapes as examples:
Product Measurements and Technical Specifications
Grooved Roll Technical Specifications - Metric
View Standard Metric-Roll Tech Specs
Part
NumberModel Wire
DiameterD d B 108066-01 GR-07 0″-.008″
0-0,2 mm.276″
7 mm.118″
3 mm.118″
3 mm108066-03 683h-ZZ .004″-.008″
0,1-0,2 mm.276″
7 mm.118″
3 mm.118″
3 mm108067-01 GR10 .0032″–.016″
0,08 mm–0,4 mm.394″
10 mm.118″
3 mm.157″
4 mm108152-05 GR13 .008″–.020″
0,2 mm–0,5 mm.512″
13 mm.157″
4 mm.197″
5 mm108018-02 GR16 .020″–.031″
0,5 mm–0,8 mm.630″
16 mm.157″
4 mm.197″
5 mm108080-26 GR22 031″–.059″
0,8 mm–1,5 mm.866″
22 mm.315″
8 mm.276″
7 mm108080-67 GR22 .039″–.079″
1,0 mm–2,0 mm.866″
22 mm.315″
8 mm.276″
7 mm108168-01 GR23 .031″–.059″
0,8 mm–1,5 mm.906″
23 mm.315″
8 mm.276″
7 mm108168-07 GR23 .039″–.079″
1,0 mm–2,0 mm.906″
23 mm.315″
8 mm.276″
7 mm108181-00 GR26 .039″-.098″
1,0-2,5 mm1.024″
26 mm.315″
8 mm.276″
7 mm119623-00 GR26-HSM2N .039″-.098″
1,0-2,5 mm1.024″
26 mm.315″
8 mm.276″
7 mm108527-01 GR30 .059″–.118″
1,5 mm–3,0 mm1.181″
30 mm.394″
10 mm.563″
14.3 mm108191-03 GR31 .071″–.138″
1,8 mm–3,5 mm1.220″
31 mm.394″
10 mm.551″
14 mm108169-01 GR32 .059″-.157″
1,5-4,0 mm1.260″
32 mm.394″
10 mm.551″
14 mm108169-20 GR32 .079″–.157″
2,0 mm–4,0 mm1.260″
32 mm.394″
10 mm.551″
14 mm108128-12 GR35 .098″–.177″
2,5 mm–4,5 mm1.378″
35 mm.472″
12 mm.630″
16 mm108128-14 GR35 .079″-.177″
2,0-4,5 mm1.378″
35 mm.472″
12 mm.630″
16 mm108149-04 GR40 .118″–.197″
3,0 mm–5,0 mm1.575″
40 mm.591″
15 mm.630″
16 mm227662-01 GR45 .197″–.276″
5,0 mm–7,0 mm1.772″
45 mm.472″
12 mm.866″
22 mm108180-09 GR47 .157″-.315″
4,0-8,0 mm1.850″
47 mm.669″
17 mm.688″
17,5 mm227613-01 GR52 .276″–.354″
7,0 mm–9,0 mm2.047″
52 mm.472″
12 mm.827″
21 mm108607-02 GR72 .276″-.472″
7,0-12,0 mm2.835″
72 mm1.181″
30 mm.937″
23,8 mm227658-01 GR80 .315″–.591″
8,0 mm–15,0 mm3.150″
80 mm.984″
25 mm1.181″
30 mm
Grooved Roll Technical Specifications - Inch Series
View Standard IS-Roll Tech Specs
Part
NumberModel Wire
DiameterD d B 108535-04 GR-S10-A 0015″–.010″
0,038 mm–0,25 mm.1875″
4,76 mm.0937″
2,38 mm.0937″
2,38 mm108002-01 SR144SS 003″–.012″
0,076 mm–0,25 mm.250″
6,35 mm.125″
3,17 mm.1094″
2,79 mm108069-01 R2ZZ .003″–.015″
0,076 mm–0,38 mm.375″
9,52 mm.125″
3,17 mm.1562″
3,97 mm108070-01 R3ZZ .015″–.032″
0,38 mm–0,81 mm.500″
12,7 mm.1875″
4,76 mm.196″
4,99 mm108072-00 R4AZZ .030″–.062″
0,76 mm–1,57 mm.750″
19,05 mm.250″
6,35 mm.2812″
7,14 mm108087-01 5201ZZ .062″–.125″
1,57 mm–3,17 mm1.259″
32,00 mm.472″
12,0 mm.625″
15,87 mm108093-01 5303ZZ .125″–.250″
3,17 mm–6,35 mm1.850″
47,00 mm.669″
16,99 mm.875″
22,23 mm118653-01 Tool Steel
Sleeve.250″–.375″
6,35 mm–9,525 mm2.43″
61,98 mm.669″
16,99 mm1.05″
26,77 mm119415-01 Tool Steel
Sleeve.375″–.500″
9,52 5mm–12,7 mm3.25″
82,55 mm.787″
19,99 mm1.12″
28,57 mm
Download the Application Data Sheet
Complete the Application Data Sheet to engage our expert engineering team today and implement Sjogren quality straighteners into your production!
See some of our satisfied customers
Grooved Roll FAQ
What is the difference that the alignment marker makes?
THE DIFFERENCE THAT SJOGREN’S ALIGNMENT MARKER MAKES:
A feature found only on Sjogren rollers, the alignment marker assures the operator that the wire’s centerline is maintained exactly from one roller to the next. The Sjogren alignment marker accounts for variations in bearing width and makes it easy for the operator to identify the correct way to mount replacement rollers to maintain tolerances.
The benefits include;
- Reduction in set-up time
- Vastly improves centerline alignment
- Improved productivity increases profits
How do you place the grooved roll with the orientation marker?

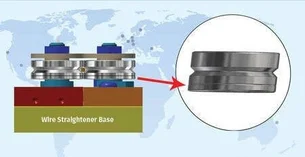

Review the following image for visual representation. you want the marker groove closest to the straightener base.
How do you set your grooved rolls on a straightener to eliminate curves?
Once you have mounted your rolls, you will adjust each knob slightly to slightly push the wire or rod down, and up respectively. Review the image below for a visual representation. the goal is to push just enough until the output is straight. This may take 2 or more planes, depending on your product.
What is the recommended maintenance schedule for grooved rolls?
The maintenance of your rolls is significantly influenced by their usage frequency, the surrounding environment, and the type of product being straightened. Below is a recommended maintenance schedule for vee and radius grooves, tailored for low, medium, high-carbon, and non-ferrous materials, based on 80-100 hours of machine operation.
Groove Type Material Replacement Frequency VEE Low Carbon 9 months VEE Medium Carbon 6 months
VEE High Carbon 3 months VEE Nonferrous 12-18 months Radius Low Carbon 12 months Radius Medium Carbon 9 months Radius High Carbon 6 months Radius Nonferrous 15-21 months What do these models cost?
Our grooved rolls are engineered with precision, and our products stand out for their durability and quality.
Each application is custom to your application but its important to consider that pricing is swayed by volume. We provide volume pricing on all of our grooved rolls, no matter the shape of the cut, allowing you to benefit from cost efficiencies when ordering in bulk.
Our production process is optimized to reduce costs when manufacturing more units in a single run, and we share these savings with you.
Not ready to connect with us yet?
Dive deeper into our product lines and find the optimal solution for you, or dive into our news section to find the latest updates from how-to’s to upcoming events and past.
Experience the Sjogren advantage—where simple ideas shape extraordinary solutions.
Sjogren News
Products Lines
Get Your Grooved Rolls Quoted – Fast & Reliable Pricing And Delivery!
Tell us your wire processing needs, and our team will provide a tailored quote quickly. Get the best solution for precision wire straightening today!
