Torsion Twist Tester

The Ultimate Solution for Wire Quality Twist Testing

Twelve Twist Programs to Guarantee Flawless High Carbon Steel Wire and Copper/Aluminum Rod

Product Overview

Sjogren’s Torsion Twist Tester is available in three distinct models, each designed to cater to a broad spectrum of testing needs. It offers 12 customizable twisting programs, complete with cycle memory, ensuring comprehensive testing. Ideal for assessing brittleness, inclusions, hidden seams, and other defects, this tester is essential for evaluating high carbon steel wire or copper/aluminum rods.

The Torsion Twist Tester meticulously rotates a wire sample around its center to evaluate brittleness, inclusions, hidden seams, and other imperfections. Available in three models accommodating wire diameters from .010″ to .750″ (0.2mm to 19mm), it empowers your quality testing team to achieve faster, more efficient, and assured results.

Get your TTT Quote!

Key Benefits

Discover the key features of the Torsion Twist Tester using our interactive model, or scroll down to explore more about the quality testing automation standard in the wire industry from Sjogren Industries!

Jump to TTT Model Options

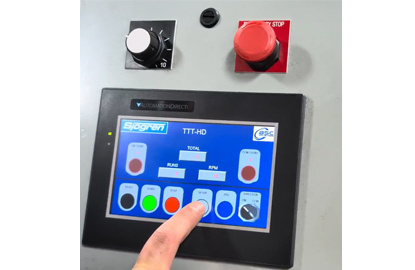

1 Programmable

Programmable counter with automatic forward/reverse capability. The Sjogren TTT includes a digital, touch screen display for efficiency and quality.

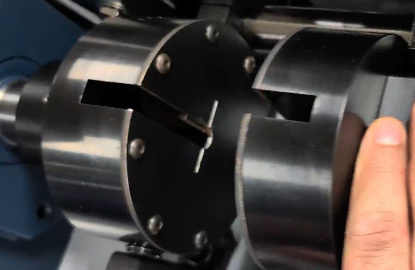

2 Holding Chucks

The TTT from Sjogren features advanced holding chucks with replaceable jaws, delivering reliable and precise clamping force for a secure and uniform grip on test pieces.

3 Semi-Automatic

Safe, semi-automatic operation provides consistent output test results: meets ASTM Test Specifications E558 and A930

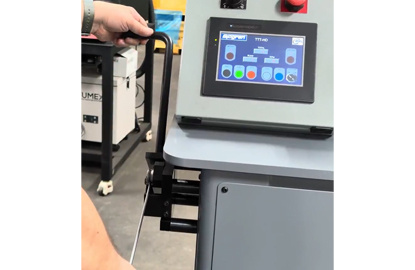

4 Angle Bender (optional)

Not Shown on Interactive model, a manual bender is available on the left of the machine to add a 90° bend to each side of the test rod/wire to ensure firm grip in chucks, especially for very hard steel.

5 Linear Weight

Depending on test specifications, in order to avoid small diameter wires coiling upon themselves, a linear weight can be introduced to prevent this.

The weight is dependent on the strength of the material and the test specifications.

6 Models for Any Strength

Light, medium, and heavy-duty models available ranging form 1/3hp to 1.5hp for testing tensile strengths up to 450,000 PSI and speeds of up to 120 RPM with test sample lengths from as small as 2" (0,50 mm) to 24" (610 mm).

Why Choose Sjogren's Torsion Twist Tester?

The TTT meets ASTM Test Specifications E558 and A930 for ultimate quality assurance of your wire or rod.

1. Reliability

Semiautomatic and digital, set your test parameters from RPMs to runs with touchscreen display

2. Options

With three models available and a wide range of jaws, your testing is secure with Sjogren Industries

3. Visibility

The TTT has a large viewing window on the safety closure allowing for visual confirmation of test sample quality

4. Flexibility

Easy and dynamic, programmable testing allows you to set any parameters you or your customer requires

Industries and Applications

The Sjogren Torsion Twist Tester is trusted by many industries that require quality assurance including:

Talk with a Specialist

Industrial & Construction Manufacturing

Strength and flexibility for almost any wire or rod testing

Wire Processing & Wire Production

Where your wire quality is essential for any type of metal from the softest to the hardest

Aerospace

Mission-critical components require clear testing for any wire or rod

Energy Sector

High-tensile wire and rod used in energy components often tested with twisting

Automotive

Ensure any high-tensile spring wire or automotive steel is able to twist to specification

Industrial & Construction Manufacturing

Strength and flexibility for almost any wire or rod testing

Wire Processing & Wire Production

Where your wire quality is essential for any type of metal from the softest to the hardest

Aerospace

Mission-critical components require clear testing for any wire or rod

Energy Sector

High-tensile wire and rod used in energy components often tested with twisting

Automotive

Ensure any high-tensile spring wire or automotive steel is able to twist to specification

Product Ranges For The Torsion Twist Tester

View The Standard Tooling Block Arrangements

Specs	LD Model	MD Model	HD Model
Power	1/3 HP 220V; 3 Amp; 1 PH, 60Hz	1 Hp, 220 VAC; 5 Amp; 1 PH, 50/60 Hz	1-1/2 HP 220V; 10 Amp; 1 PH, 60Hz
Wire Range	.010″ to .090″ 0,25 mm to 2,3 mm	.15″ to .375″ 3,81 mm to 9,53 mm	.090″ to .312″ 2,3 mm to 8,0 mm
Max Tensile Strength	450,000 PSI (3100 Mpa)	70,000 PSI (483 Mpa) Copper or aluminum	450,000 PSI (3100 Mpa) or with extended capacity up to .375″ (9,5 mm) dia. material at 220,000 PSI (1860 Mpa)
Sample Length Capacity	2″ to 15″ 0,50 mm to 380 mm	6″ to 20″ 152 mm to 500 mm	6″ to 24″ 150 mm to 610 mm
Max Operating Speed	120 RPM	60 RPM	30 RPM
Machine Width	56″ 1422 mm	56″ 1422 mm	56″ 1422 mm
Machine Depth	27″ 685 mm	27″ 685 mm	27″ 685 mm
Machine Height	50″ 1270 mm	50″ 1270 mm	50″ 1270 mm
Working Height at Centerline of Wire	39″ 1000 mm	39″ 1000 mm	39″ 1000 mm
