CL | Control Line Tubing Straighteners for Oil & Gas Applications

High-Precision Wire and Tube Straightening for Offshore and Land-Based Operations

Product Overview

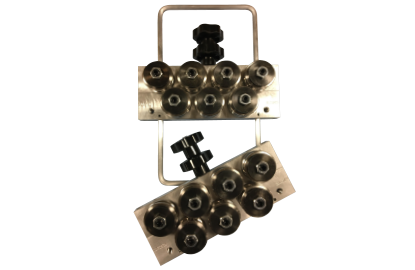

Sjogren’s Control Line Tubing Straighteners are engineered for offshore and land-based oil and gas applications. They provide precision alignment and tension control for slicklines, wirelines, and measuring lines, reducing downtime and improving operational efficiency.

With a lightweight and ergonomic design, these straighteners are easy to handle, even with gloves. The precision-engineered rollers help keep your lines straight, supporting wellbore operations with reliability and accuracy, regardless of the conditions.

Get your CL Straightener Quote!

Key Benefits

Learn more about the control line straightener with our interactive model! You can dive right into technical specifications and model numbers here or scroll down the page!

Jump to Tech Specs

1 Ergonomic Handheld Design

Lightweight aluminum body for operator comfort and better control.

2 Customizable Configurations

Offered with configurations of 5 or 7 rolls per plane, these models cater to diverse wire tension requirements, with sizes spanning from .250 inches to .750 inches.

3 High Tensile Strength Rollers

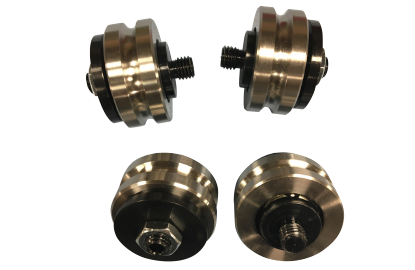

Our Control Line series features custom rolls available in standard stainless steel or they can be modified to use alternative non-metal materials, designed to meet your precise specifications and endure high-stress conditions.

4 Compact Size for Tight Spaces

Designed for easy handling by any operator! Our control line series straighteners are engineered to fit into confined operating areas without compromising performance and are generally light enough to be manually managed as you guide cables down while maintaining consistent slack tension.

5 Consistent Wire Tension

Precision alignment minimizes wire breakage and maintains accurate measuring.

Why Choose Sjogren's Control Line Straighteners?

Sjogren’s Control Line Tubing Straightener is trusted by the largest oil and gas leaders around the globe because it delivers precise wire alignment in high-stress environments, every time it is put into action. Its ergonomic design reduces operator fatigue and its precision-machined rollers ensure consistent performance.

1. Built for Oil & Gas

Handles high-stress offshore and land-based environments.

2. Adaptable for Varying Wire Sizes

Stainless steel and our other trusted construction materials withstand harsh environmental conditions.

3. Operator Comfort

Lightweight design minimizes strain during extended use.

4. Flexible Configurations

5 or 7 roll configurations for different wire tension needs in multiple sizes.

Industries and Applications

The Control Line Tubing Straightener is trusted by major players in:

Oil & Gas

Used for slicklines, wirelines, and measuring lines on offshore and land-based rigs.

Energy & Power

Precision alignment for high-stress wire transmission.

Industrial Manufacturing

Effective in demanding production environments.

Oil & Gas

Used for slicklines, wirelines, and measuring lines on offshore and land-based rigs.

Energy & Power

Precision alignment for high-stress wire transmission.

Industrial Manufacturing

Effective in demanding production environments.

Product Measurements and Technical Specifications

Control Line Series Breakdown by tube size models

View CL 250 Models

P/N	Model	Extended Description	Roll Diameter D	Tube Size	Number of Rolls Per Plane	Length	Weight
206645-03	IS-507JR-1P U-GR-.250” DIA.	Designed with a steel base, no handles and 5 steel rolls per plane for .250” tubing	32 mm (1.26″)	6,35 mm (.250″)	5	114,3 mm (4.5″)	1,82 kg (4 lbs.)
206645-05	IS-507JR-1P-S U-GR-.250” DIA.	Designed with a steel base with handles and 5 steel rolls per plane for .250” tubing	32 mm (1.26″)	6,35 mm (.250″)	5	133,4 mm (5.25″)	2,73 kg (6 lbs.)
338503-03	NL-507-1PR U-GR-.250”DIA.	Designed with a steel base, no handles and 5 steel rolls per plane for .250” tubing	32 mm (1.26″)	6,35 mm (.250″)	5	142,75 mm (5.62″)	2,73 kg (6 lbs.)
886187-02	NL-245-1PR U-GR-.250” DIA.	Designed with a steel base, no handles and 5 steel rolls per plane for .250” tubing	47 mm (1.85″)	6,35 mm (.250″)	5	235,7 mm (9.28″)	7,27 kg (16 lbs.)
448578-01	CL-250-5-1P-S U-GR-.250” DIA.	Designed with an aluminum base with handles and 5 stainless steel rolls per plane for .250” tubing	52 mm (2.05″)	6,35 mm (.250”)	5	260,1 mm (10.24″)	3,6 kg (8 lbs.)
886580-01	CL-52-7-1P U-GR-.250” DIA.	Designed with an aluminum base with handles and 7 stainless steel rolls per plane for .250” tubing	52 mm (2.05″)	6,35 mm (.250”)	7	260,1 mm (10.24″)	4,55 kg (10 lbs.)

View CL 375 Models

P/N	Model	Extended Description	Roll Diameter D	Tube Size	Number of Rolls Per Plane	Length	Weight
448578-02	CL-375-5-1P-S U-GR-.375” DIA.	Designed with an aluminum base with handles and 5 stainless steel rolls per plane for .375” tubing	52 mm (2.05″)	9,35 mm (.375”)	5	260,1 mm (10.24″)	3,6 kg (8 lbs.)
448356-00	CL-52-7-1P U-GR-.375” DIA.	Designed with an aluminum base with handles and 7 stainless steel rolls per plane for .375” tubing	52 mm (2.05″)	9,35 mm (.375”)	7	260,1 mm (10.24″)	4,55 kg (10 lbs.)

View CL 500 Models

P/N	Model	Extended Description	Roll Diameter D	Tube Size	Number of Rolls Per Plane	Length	Weight
448578-03	CL-500-5-1P-S U-GR-.500” DIA.	Designed with an aluminum base with handles and 5 stainless steel rolls per plane for .500” tubing	80 mm (3.15″)	12,7 mm (.500”)	5	457,2 mm (18.00″)	10,4 kg (23 lbs.)
448578-08	CL-500-7-1P-S U-GR-.500” DIA.	Designed with an aluminum base with handles and 7 stainless steel rolls per plane for .500” tubing	80 mm (3.15″)	12,7 mm (.500”)	7	457,2 mm (18.00″)	12,7 kg (28 lbs.)

View CL 625 Models

P/N	Model	Extended Description	Roll Diameter D	Tube Size	Number of Rolls Per Plane	Length	Weight
448578-04	CL-625-5-1P-S U-GR-.625” DIA.	Designed with an aluminum base with handles and 5 stainless steel rolls per plane for .625” tubing	80 mm (3.15″)	15,87 mm (.625”)	5	457,2 mm (18.00″)	10,4 kg (23 lbs.)
448578-09	CL-625-7-1P-S U-GR-.625” DIA.	Designed with an aluminum base with handles and 7 stainless steel rolls per plane for .625” tubing	80 mm (3.15″)	15,87 mm (.625”)	7	457,2 mm (18.00″)	12,7 kg (28 lbs.)

View CL 750 Models

P/N	Model	Extended Description	Roll Diameter D	Tube Size	Number of Rolls Per Plane	Length	Weight
448578-05	CL-750-5-1P-S U-GR-.750” DIA.	Designed with an aluminum base with handles and 5 stainless steel rolls per plane for .750” tubing	80 mm (3.15″)	19,05 mm (.750”)	5	457,2 mm (18.00″)	10,4 kg (23 lbs.)
448578-10	CL-750-7-1P-S U-GR-.750” DIA.	Designed with an aluminum base with handles and 7 stainless steel rolls per plane for .750” tubing	80 mm (3.15″)	19,05 mm (.750”)	7	457,2 mm (18.00″)	12,7 kg (28 lbs.)

Download the Application Data Sheet

Complete the Application Data Sheet to engage our expert engineering team today and implement Sjogren quality straighteners into your production!

Tell Us Your Specs - Get Your Solution!

See some of our satisfied customers

Control Line Tubing Straightener FAQ

Learn more from frequently asked questions about our Control Line Tubing Series straighteners from others like you!

How does the ergonomic design help operators?
These control line straighteners are lightweight (as lightweight as we can make them without compromising quality!) and well-balanced, making them easier to use for long periods without strain.
How do I order replacement rolls to stay ahead of downtime?
Contact us with your model number and wire specs for custom options. You can use the contact form at the bottom of this page or you can email our team directly at sales@sjogren.com.
Can these control line models handle tough offshore conditions?
Yes — the aluminum and other model body materials and stainless steel rollers and even our rollers made of other materials are made to resist corrosion from saltwater and harsh environments.
What’s the difference between 5-roll and 7-roll models?
Our 7-roll models offer better precision, while 5-roll models allow quicker adjustments.
What do these models cost?
Our products are made of the highest quality materials, with precision engineering. They may cost more than your average straightener from competitors, but they last longer.

We do offer volume pricing on almost all of our products, so take this into consideration when requesting quotation!

It costs our manufacturing line less to produce 5 or more of a product than it does to produce 1 in one run, and we share these savings with you.
Do you have a control line straightener catalog available?
We do! It is easily accessible for download in our main menu, and also here!

Get Your Custom CL straightener Quote – Fast & Reliable Pricing and Delivery!

Tell us your wire processing needs, and our team will provide a tailored quote quickly. Get the best solution for precision wire straightening today!
