Light Duty Wire Puller

Strong, Lightweight, and Built for Precision Wire Pulling

Product Overview

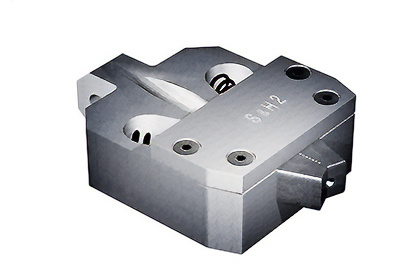

The Sjogren Light Duty Wire Puller is a high-performance solution for wire diameters up to .5″ (12,7 mm) and a maximum pull force of 10,031 lbs. (4.550 kg). Designed to improve production efficiency, it minimizes wire marking and slippage while ensuring secure, consistent pulling strength.

Compatible with Sleeper-Hartley style puller assemblies, the Light Duty Wire Puller offers a wide range of hook-up and pull chain options, including a spring-loaded safety chain that reduces wire damage. Its lightweight design ensures easy handling without sacrificing strength or durability.

Only available from Sjogren and our affiliates noted on our rep locator page!

Get your Light-Duty Puller Quote!

Key Benefits

Get to know the light duty Sleeper & Hartley style puller with our interactive model, highlighting some of its key benefits!

You can also skip right down to technical specifications which will provide you dimensions and options.

We also provide:

standard recommended full puller assemblies
accessories
spare parts including jaws and springs!

Jump to Tech Specs

1 Handles Wire Diameters up to 5″(12,7 mm)

Provides strong, consistent grip across a range of wire sizes without slippage. Small divot in jaw lips allows for easier wire insertion.

2 High Pull Force of 10,000 lbs. (4.550 kg)

Maintains secure grip under high tension, reducing breakage and production delays.

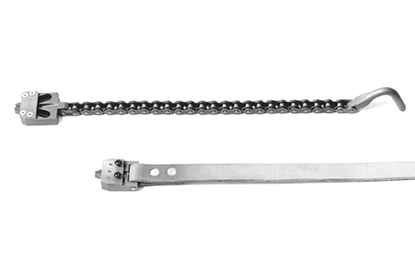

3 Flexible Hook-up Options

Compatible with multiple pull chain configurations, including spring-loaded safety chains.

4 Easily Replaced Puller Jaws

Jaws can be replaced without special tools, reducing downtime and improving efficiency.

5 Easy Opening

The ergonomic design allows for effortless one-handed operation. Small divot on jaw lips allows for easy wire insertion.

Why Choose a Light Duty Wire Puller from Sjogren?

1. Secure Grip Under High Tension

Maintains consistent pulling force without wire slippage or deformation.

2. Fast Setup and Integration

Designed for easy connection with Sleeper-Hartley Puller Block assemblies.

3. Durable & Lightweight Construction

Strong enough to handle high loads while remaining easy to handle.

4. Cost-Effective Performance

Provides high pull strength and long service life at a competitive price point.

Industries and Applications

The Sjogren Light Duty Wire Puller meets the demands of industries requiring precision and strength:

Wire Drawing & Processing

Ensures secure grip and consistent performance in high-volume production.

Automotive Manufacturing

Handles almost any wire used for automotive components with precision.

Medical Device Manufacturing

Precision wire handling for surgical tooling and wiring requiring High precision with high-tensile strengths.

Aerospace

Provides secure grip for structural and specialty wire applications.

Construction Manufacturing

Facilitates efficient wire and cable management for reinforcing wire for infrastructure projects as an example.

Electronics

Fine wire processing for circuit assembly and components.

Wire Drawing & Processing

Ensures secure grip and consistent performance in high-volume production.

Automotive Manufacturing

Handles almost any wire used for automotive components with precision.

Medical Device Manufacturing

Precision wire handling for surgical tooling and wiring requiring High precision with high-tensile strengths.

Aerospace

Provides secure grip for structural and specialty wire applications.

Construction Manufacturing

Facilitates efficient wire and cable management for reinforcing wire for infrastructure projects as an example.

Electronics

Fine wire processing for circuit assembly and components.

Product Measurements and Technical Specifications

The Sleeper and Hartley light-duty wire pulling models are best-in-class for lighter-weight wire drawing operations. With many options from thumb-release models to aluminum shoe accessories and easy replacement parts, you will find all you need with Sjogren. Check out some of the standard specifications below for our light-duty pullers, along with some recommended standard assemblies for your full pulling dog, chain, and hook that fits your production set up with perfection.

All tables below are collapsible. Just click or tap on the blue line you want to open up to find all dimension tables and options!

SH Light Duty Puller Specifications

View Light Duty Puller Models and Tech Specs

Grip Style	Part No.	Grip Head No.	Max. Pointed Size	Min. Wire Size	Max Pull (lbs./kg)	A (in/mm)	B (in/mm)	C (in/mm)	D (in/mm)	Dia “E” (in/mm)	F (in/mm)	Weight (lbs./kg)	Replaces SH Model
A	300628-02	SH #0	.078″ 1,9 mm	N/A	1,500 lbs. 680 kg	1.88″ 47,63 mm	1.50″ 38,10 mm	0.81″ 20,64 mm	1.00″ 25,40 mm	0.19″ 4,76 mm	N/A	.5 lbs. 0,2 kg	SH 443-0
B	300510-02	SH #1	.156″ 4,0 mm	.062″ 1,6 mm	2,000 lbs. 907 kg	2.50″ 63,50 mm	1.75″ 44,45 mm	0.81″ 20,64 mm	0.38″ 9,53 mm	0.22″ 5,56 mm	1.94″ 49,21 mm	.5 lbs. 0,2 kg	SH 443-1
B	301393-02	SH #2	.203″ 5,2 mm	.125″ 3,2 mm	3,000 lbs. 1360 kg	2.75″ 69,85 mm	2.00″ 50,80 mm	0.94″ 23,81 mm	0.50″ 12,70 mm	0.22″ 5,56 mm	2.13″ 53,98 mm	1 lbs. 0,5 kg	SH 443-2
B	301394-02	SH #3	.375″ 9,5 mm	.093″ 2,4 mm	7,500 lbs. 3402 kg	3.38″ 85,73 mm	2.38″ 60,33 mm	1.00″ 25,40 mm	0.81″ 20,64 mm	0.31″ 7,94 mm	2.50″ 63,50 mm	1.5 lbs. 0,7 kg	SH 443-3
B	304255-02	SH #4	.5″ 12,7 mm	.25″ 6,4 mm	10,000 lbs. 4536 kg	4.50″ 114,30 mm	3.25″ 82,55 mm	1.50″ 38,10 mm	1.00″ 25,40 mm	0.39″ 9,92 mm	3.25″ 82,55 mm	3.25 lbs. 1,5 kg	SH 443-4

SH Standard Grip Assembly Recommendations

View SH Wire Puller Grip Complete Assembly Recommendations

Assembly Number	Grip Head Number	Max. Pointed Size	Min. Wire Size	Max Pull (lbs./kg	Chain Size	Hook Size	Standard Length “L”	Weight (lbs./kg)
227419-00	SH #0	.078″ 1,9 mm	N/A	700 lbs. 317.5 kg	520	S&H #1	18.25″ 463,55 mm	1.5 lbs. 0,7 kg
300510-01	SH #1	.156″ 3,9 mm	.0625″ 1,6 mm	1,000 lbs. 454 kg	520	S&H #1	19.75″ 501,65 mm	1.5 lbs. 0,7 kg
301393-01	SH #2	.203″ 5,2 mm	.125″ 3,2 mm	1,500 lbs. 680. 4kg	50	S&H #2	20.75″ 527,05 mm	2.5 lbs. 1,1 kg
301394-01	SH #3	.375″ 9,5 mm	.093″ 2,4 mm	3,000 lbs. 1361 kg	80	S&H #3	23.13″ 587,38 mm	4.5 lbs. 2,0 kg
304255-01	SH #4	.5″ 12,7 mm	.25″ 6,3 mm	5,000 lbs. 2268 kg	100	S&H #4	39.00″ 990,60 mm	11.25 lbs. 5,1 kg

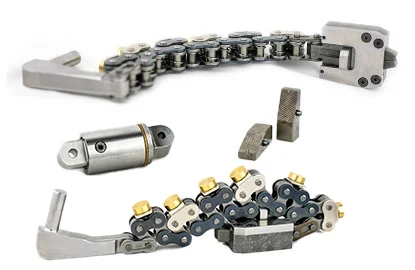

Accessories & Chains/Hooks for SH Model Pullers

Our comprehensive assemblies for all pullers come with an extensive array of options, including safety chains, roller chains, and hooks such as top hole and swivel hooks with adapters, ensuring seamless integration into any production line. Discover more about our accessory and assembly options below!

Accessories

View Aluminum Shoes for SH Style Grips (Pullers)

*An optional aluminum shoe can help reduce marking on the capstan caused by slap during start-up.

Part No.	Fits Grip Head	Thickness “A”
227431-00	SH #0	0.19″ (4,76 mm)
227432-00	SH #1	0.19″ (4,76 mm)
227443-00	SH #2	0.25″ (6,35 mm)
227169-00	SH #3	0.25″ (6,35 mm)
227185-00	SH #4	0.25″ (6,35 mm)

Replacement Parts for SH Model Pullers

View All SH Puller Models Replacement Jaws

Part No.	Jaw Model	A	B	C	D	∅E	Teeth per Inch (Diamond)	Replaces Model
106643-00	SH #0	0.31″ (7,94 mm)	0.88″ (22,23 mm)	0.38″ (9,53 mm)	0.19″ (4,76 mm)	0.19″ (4,76 mm)	25	443-0-H
106644-00	SH #1	0.44″ (11,11 mm)	1.19″ (30,16 mm)	0.44″ (11,11 mm)	0.38″ (9,53 mm)	0.27″ (6,75 mm)	25	443-6-L
106645-00	SH #2	0.50″ (12,70 mm)	1.31″ (33,34 mm)	0.50″ (12,70 mm)	0.38″ (9,53 mm)	0.27″ (6,75 mm)	16	443-6-Z
106646-01	SH #3	0.56″ (14,29 mm)	1.50″ (38,10 mm)	0.56″ (14,29 mm)	0.50″ (12,70 mm)	0.31″ (7,94 mm)	16	443-6-C
106647-00	SH #4	0.75″ (19,05 mm)	2.00″ (50,80 mm)	0.63″ (15,88 mm)	0.50″ (12,70 mm)	0.44″ (11,11 mm)	16	443-8-C

*Custom tooth patterns (diamond, straight, and angled cuts in 25, 16, and 10 teeth per inch) available upon request

View All SH Puller Model Replacement Springs

Part No.	Fits Grip Head	Outside Diameter “D”	Free Length “L”	Wire Diameter “D”	Replaces S&H No.
106110-00	SH #0	0.19″ (4,76 mm)	1.25″ (31,75 mm)	0.02″ (0,40 mm)	443-0-L
106110-01	SH #1	0.25″ (6,35 mm)	1.50″ (38,10 mm)	0.03″ (0,79 mm)	443-6-M
106110-02	SH #2	0.25″ (6,35 mm)	1.63″ (41,28 mm)	0.03″ (0,79 mm)	443-6-H
106110-03	SH #3	0.28″ (7,14 mm)	2.00″ (50,80 mm)	0.05″ (1,19 mm)	443-6-D
106110-04	SH #4	0.41″ (10,32 mm)	2.50″ (63,50 mm)	0.06″ (1,59 mm)	443-8-D

Chains for SH Pullers

View Safety Chain Options

Part No.	Chain Size	Max Die Pull (lbs. / kg)	Pitch Length “A”	Standard Length (Extended) “B”	Standard Length (Collapsed) “C”
447747-01	50	1,500 lbs. 681,8 kg	.625″ 15,87 mm	15.62″ 396,75 mm	8.12″ 206,25 mm
447614-04	80	3,000 lbs. 1363,6 kg	1.00″ 25,4 mm	17.00″ 431,80 mm	9.00″ 228,60 mm
447713-02	100	5,000 lbs 2272,7 kg	1.25″ 31,75 mm	31.25″ 539,75 mm	16.25″ 412,75 mm
448355-01	140	10,000 lbs 4536,0 kg	1.75″ 44,45 mm	33.25″ 844,55 mm	19.25″ 488,95 mm

View Roller Chain Options

Size	Pitch “P”	Height “H”	Width “W”	Max Pull Rating (lbs./kg)	Weight (lbs./kg)
520	0.63″ 15,88 mm	0.56″ 14,29 mm	0.25″ 6,35 mm	1,000 lbs. 453,6 kg	0.5 lbs. 0,7 kg
50	0.63″ 15,88 mm	0.56″ 14,29 mm	0.38″ 9,53 mm	1,500 lbs. 680,4 kg	.75 lbs. 1,1 kg
80	1.00″ 25,40 mm	0.94″ 23,81 mm	0.63″ 15,88 mm	3,000 lbs. 1360,8 kg	1.5 lbs. 2,2 kg
100	1.25″ 31,75 mm	1.13″ 28,58 mm	0.75″ 19,05 mm	5,000 lbs. 2268 kg	2.5 lbs. 3,7 kg
140	1.75″ 44,45 mm	1.63″ 41,28 mm	1.00″ 25,40 mm	10,000 lbs. 4536 kg	4.75 lbs. 2,15 kg
160	2.00″ 50,80 mm	2.00″ 50,80 mm	1.25″ 31,75 mm	13,000 lbs. 5896,8 kg	6.25 lbs. 2,83 kg

Hooks for SH Pullers

View Top Hole Hook Options

Part Number	Adapter	Chain Size	Pull Rating	A	B	C	Hole ∅ in Block
228422-01	119639-01	80 & 100	3000 / 5000 lbs. 1361 / 2268 kgs	1.17″ 29.6 mm	.77″ 19.6 mm	.768″ 19.5 mm	.787″ 20 mm
228422-03	119639-01	80 & 100	3000 / 5000 lbs 1361 / 2268 kgs	1.05″ 26.6 mm	.87″ 22.1 mm	.730″ 18.5 mm	.747″ 19 mm

View Swivel Hook Options

Part Number Length “B” Range ∅ Hook “A” Range

338986-xx
0.6-1.4”
15-35,5 mm 0.39-1.18″
10,0-30,0 mm

Part Number	Length “B” Range	∅ Hook “A” Range
338986-xx	0.6-1.4” 15-35,5 mm	0.39-1.18″ 10,0-30,0 mm

S&H Hooks

Part No.	Hook Size	Length “A”	Length “B”	Diameter “C”	Pin Diameter “D”	Thickness “E”	Max Pull Rating (lbs./kg)	Weight (lbs./kg)
107262-00	#1	1.94″ 49,21 mm	1.88″ 47,63 mm	0.44″ 11,11 mm	0.22″ 5,56 mm	0.38″ 9,53 mm	3,000 lbs. 1360,8 kg	.25 lbs. 0,11 kg
107264-00	#2	2.63″ 66,68 mm	2.00″ 50,80 mm	0.56″ 14,29 mm	0.22″ 5,56 mm	0.50″ 12,70 mm	5,000 lbs. 2268 kg	.5 lbs. 0,23 kg
206152-00	#3	3.25″ 82,55 mm	2.25″ 57,15 mm	0.63″ 15,88 mm	0.33″ 8,33 mm	0.75″ 19,05 mm	8,000 lbs. 3628,8 kg	.75 lbs. 0,34 kg
204258-00	#4	3.75″ 95,25 mm	3.13″ 79,38 mm	0.88″ 22,23 mm	0.39″ 9,92 mm	1.00″ 25,40 mm	15,000 lbs. 6804 kg	1.5 lbs. 0,68 kg
204258-23	#4	3.75″ 95,25 mm	3.13″ 79,38 mm	1.16″ 29,5 mm	0.39″ 9,92 mm	1.00″ 25,40 mm	15,000 lbs. 6804 kg	2 lbs. 0,91 kg
204258-35	#4	3.75″ 95,25 mm	3.13″ 79,38 mm	0.77″ 19,5 mm	0.39″ 9,92 mm	1.00″ 25,40 mm	15,000 lbs. 6804 kg	1.75 lbs. 0,79 kg

View RC (Roller Chain) Hook Options

Body Style	Part Number	∅ Hook “A” Range	Length “B” Range	Max Pull Rating (lbs./kg)	Weight lbs./kg)
Type 1	228565-xx	.315″ -.77″ 8 mm-19,5 mm	1.38″ -1″ 35 mm-25 mm	3,300 lbs. 1497 kg	.56 lbs. 0,3 kg
Type 2	339052-xx	1.160″ -0.768″ 29,5 mm-19,5 mm	1″ -1.91″ 25 mm-48,5 mm	10,000 lbs 4535 kg	2.2 lbs 1 kg

Download the Application Data Sheet

Complete the Application Data Sheet to engage our expert engineering team today and implement Sjogren quality straighteners into your production!

Tell Us Your Specs - Get Your Solution!

See some of our satisfied customers

SH Puller Frequently Asked Questions

Learn more from frequently asked questions about our Sleeper & Hartley puller models.

What is the difference between a regular SH puller and the Thumb-Release models?
The Thumb release model allows easy one-handed management to grip a wire and to release it. See this video for a visual representation!
What is the recommended maintenance schedule for SH pullers and parts?
Recommended Product Maintenance Schedule
Maintenance is essential to avoid unplanned downtime! See the above chart for recommendations. This is also dependent on how often these are being used. Heavy usage will impact how long the parts will last.

Contact us with your model number and wire specs for custom options. You can use the contact form at the bottom of this page or you can email our team directly at sales@sjogren.com.
What wire sizes can the SH Wire Puller handle?
Our SH puller models can handles max wire sizes ranging from .078″ (1,9 mm) up to .5″ (4,0mm) with maximum pull forces ranging from 1,500 lbs. (680 kg) to 10,000 lbs. (4536 kg)! For light duty, these pack a solid punch in terms of durability and strength.
Can Sleeper & Hartley Puller Models handle specialty wires?
Yes, they are expertly engineered to handle high-tensile and non-ferrous wires without compromising grip strength.
What do these models cost?
Our products are made of the highest quality materials, with precision engineering.

We do offer volume pricing on almost all of our products, so take this into consideration when requesting quotation!

It costs our manufacturing line less to produce 5 or more of a product than it does to produce 1 in one run, and we share these savings with you.
How does the spring-loaded safety chain improve performance?
The safety chain aids in easier and SAFER attachment, prevents surface damage to your capstan with its brass shoes. These awesome chains also reduce slippage, in turn improving wire quality and overall production efficiency. When it comes to cost efficiency, they will perform longer, reducing costs over time (speaking to you, procurement team😉!)
