Bench Top Wrap Tester
Quality Testing For Wire Springs and Coated Metallic Wire

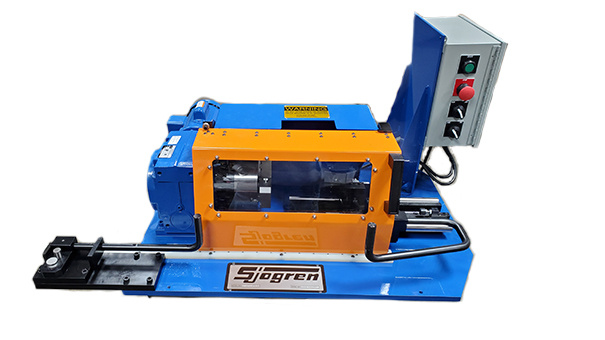

A benchtop testing machine designed to assess spring wire deformation and verify coating adhesion, ensuring the insulation of protected wires remains uncompromised.
Product Overview
The Bench Top Wrap Tester from Sjogren Industries is expertly crafted to evaluate the ductility of spring wire and assess the adhesion of coatings on metallic wire. This precision instrument adheres to the stringent testing standards set by the American Wire Producers Association for steel products and is built to US Safety and Electrical Standards.
The Sjogren Wrap Testing Machine features an adjustable, rotating chuck and a sliding mandrel support carriage, providing operators with precise control over the wraps on the mandrel. The test consists of coiling the wire in a closely spaced helix to enable visual inspection for cracks or fractures.
Key Benefits
Discover the key features of the Sjogren Wrap Tester using our interactive model, or scroll down to explore more about the ultimate spring and coated wire testing machine in the industry, from Sjogren Industries!
1Wide Wire Range
Spring Wire Diameter Range:
- .050" to .375"
- 1,27 mm to 9,5 mm
Machine Dimensions:
- Width: 28″ (71cm)
- Length: 52″ (132cm)
- Height: 22″ (56cm)
- Weight: 400 lbs. (182 kg)
2Mandrel Capacity
Mandrels and mandrel support bushings are not supplied as part of the standard machine but can be supplied optionally upon request. Mandrel diameters are dependent upon the exact wire diameter being tested and what specification is required for wrapping around a mandrel of 1x to 4x the diameter of the wire.
The Wrap Tester is engineered for optimal performance, accommodating mandrel diameters from .050" to 1.5" or 1.27 mm to 38 mm.
Ensure to note your requirement for mandrels spacers and bushings, and the sizes required on your form, or when speaking with a member of the Sjogren Team.
3Drive Unit
Two standard drive units offer 50Hz and 60Hz with .5hp constant speed motors.
There is also a 124:1 gear reducer that drives the rotating chuck at an approximate speed of 13.9 RPM.
A limit switch positioned to the rear of the sliding carriage de-energizes the motor after the carriage has passed, ending the wrap cycle. A limit switch mounted above the chuck prevents machine operation if the guard is not closed.
4Interlocked Guard
An interlocked guard keeps any flying metal from ejecting outside of the front of the machine during testing, ensuring operator safety.
Note there is a viewing window on the cover that is not shown in the interactive model.
5Dual Operational Modes
With easy operation and optimal interchangeable mandrel set up, there are also two operational modes to ensure you get the most out of your wrap testing for absolute quality of your product.
Mode 1 utilizes the wire guide bushing in the tooling block and the wire much me drawn completely through the bushing.
Mode 2* eliminates the use of the wire guide bushing and utilizes the slotted opening of the guide bar on the tooling block to support the wire during wrapping.
*The wrapping cycle must be manually stopped before the wire sample is pulled completely through the guide bar, and then Forward/Reverse switch is used to safely remove the built up spring pressure in the wire so it can be removed from the machine.
6Sliding Carriage
Wire guide assembly is mounted to a sliding carriage to support mandrel and control sample wrap spacing
Why Choose Sjogren's Wrap Tester?
The WT from Sjogren is designed to meet American Wire Producers Association steel products testing specifications for ultimate quality assurance.
-
1. Sliding Carriage
- Wire guide assembly is mounted to a sliding carriage to support mandrel and control sample wrap spacing
-
2. Designed For Bench Setting
- Install on your own bench that can hold 400lbs. (182kg) or have Sjogren's standard swivel caster rolling cart for mobility.
-
3. Safety
- Interlocked guards allow for safe visual inspection throughout testing, ensuring operator safety
-
4. Customized For You
- Test your wire to your specs with a wide opening for a variety of mandrel, spacer and bushing kits
Industries & Applications
The Sjogren Bench Top Wrap Tester is trusted in many industries that require optimal quality assurance including:

Industrial & Construction Manufacturing

Wire Processing & Wire Production

Aerospace

Medical Wire Production
Trust your vital coated wire and springs for medical equipment are strong and safe for probes, valves, tubing assemblies, and more

Automotive

Energy and Power
Ensure coated wiring or electrical spring can withstand tests before entering the field
Optional Standard Tooling Block Arrangements
We offer 3 tooling block arrangements covering three wire ranges. Customizations are always an option at Sjogren. Sample kits are also available that include mandrel, spacer, and bushings. The size requirements must be determined by you.
View The Standard Tooling Block Arrangements
Part Number | Description |
---|---|
885892-02 | 50 Hz Wrap Tester Less Tooling |
885892-03 | 60 Hz Wrap Tester Less Tooling |
Tooling Block Arrangements | |
885893-01 | Tooling For Wire Diameters .050" - .162" 1,27mm - 4,11mm |
885894-01 | Tooling For Wire Diameters .162" - .257" 4,11mm - 6,53mm |
885895-01 | Tooling For Wire Diameters .257" - .375" 6,53mm - 9,53mm |
Connect With A Specialist
Work with our team of wire tooling experts to determine the ideal part for you, or let us know which you need! Our team is here to support your production in any way we can.
See some of our satisfied customers




Wrap Tester FAQ
Why aren't mandrels, spacers and bushing included with the base models?
Mandrels and mandrel support bushings are not supplied as part of the standard machine but can be supplied optionally upon request. Mandrel diameters are dependent upon the exact wire diameter being tested and what specification is required for wrapping around a mandrel of 1x to 4x the diameter of the wire.
We can supply these at your request for an additional cost
Where are the details for the wrap test parameters?
Details for the wrap test can be found in the ASTM 8370 Section 4.7
How do I ensure the best outcome for my reverse bend test?
Ensure that your test piece is placed properly in the guides, and grips, and you bend the piece completely 90° in each direction, each interval per your testing requirements.
One direction completely bent and back to its original position is considered one bend.
Repeat in the opposite direction without interruption
What does the Sjogren Wrap Tester cost?
Sjogren stands out in the market with unparalleled quality. Our pricing is tailored to your specific production requirements.
Depending on your specific needs, you must take into consideration the total costs of the base model at the specific Hz you require and the tooling block. The mandrel spacer and bushing kits can be purchased or manufactured separately, or we can manufacture them for you for an additional cost.
You can expect to pay around the $30k-$40k range for your wrap tester with all tooling and kits included.
All Sjogren products come with Sjogren's quality assurance guarantee for life and comprehensive support for all your wire tooling and quality testing needs.
What are additional key features of the Wrap Tester from Sjogren?
- A mounted bender prepares the test sample for easy insertion into the wrap tester.
- Quick clamps and dovetail mount ensure simple positioning.
- An instructional video is available for the entire wrap tester here!
