Manual Wire Pointer
Easier Wire Drawing With Pointer Precision
Save Time And Reduce Operator Fatigue
Product Overview

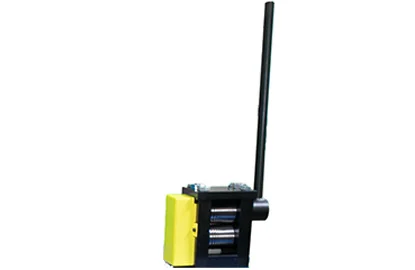

The Manual Wire Pointer (also known as the Hand Pointer) provides a simple solution to the wire pointing process.
The Hand Pointer saves time and produces more accurate results than hand-filing or hand-grinding to reduce wire diameter to draw through a die.
Once enough material has passed through the die, it can be gripped by a puller and then drawn around the block. The roller has several dies to repeat until the desired point size is achieved.

Key Benefits
Discover the key features of the Sjogren Manual/Hand Pointer using our interactive model, or scroll down to explore more about the manual version of the Sjogren wire pointer and additional options.
1Wire Range
The manual pointer handles a perfect range of wire diameters for easy operator use. The standard unit contains 15 grooves to point wire diameters from 0.18" to .156" / 0,45mm to 4mm.
2Compact and Lightweight
Designed to fit on any work surface, the manual wire pointers size is perfect for mounting at a work site or on a separate pedestal using four M10 bolts.
Dimensions:
- Width: 7.5"
- 191 mm
- Depth: 3.8"
- 97 mm
- Height: 6.3"
- 160 mm
- 17.2" including arm
- 437 mm including arm
- 160 mm
- Weight: 25 lbs.
- 11,4 kg
3Durable and Strong Rolls
Grooved rolls are made from through hardened tool steel and heat treated to Rc 59-61 for durability and managing your toughest wire rod.
4Rugged Construction
Designed for longevity and heavy use, the manual wire pointer from Sjogren is constructed with rugged steel plates with a black oxide finish.
5Gear-Driven Roll Shafts
Gear-driven roll shafts are supported on needle bearings and then grease-packed for longevity and reliability
6Manual/Power Combo Option
Need more flexibility? We offer a manual/power pointer combo machine to provide a wider range of wire diameters in one place!
Why Choose Sjogren's Manual Wire Pointer?
The Hand/Manual Wire Pointer is made for easier wire drawing startup, enhancing production efficiency and speed.
-
1. Save Time
- Eliminate strenuous and time-consuming hand filing or filing
-
2. Flexible Mounting
- Anywhere you desire, easy to install with just four M10 bolts
-
3. Electricity-Free
- Gear-powered, no need for electrical outlets, making this more nimble
-
4. Durable
- Enjoy ease-of-use with minimal maintenance, built with heavy-duty materials
Industries & Applications
The Sjogren Manual Wire Pointer is trusted by major players in these industries and many more:

Industrial & Construction Manufacturing

Aluminum & Welding Wire Manufacturing

Wire Processing & Wire Production

Aerospace

Automotive
Connect With A Specialist
Work with our team of wire tooling experts to determine the ideal part for you, or let us know which you need! Our team is here to support your production in any way we can.
See some of our satisfied customers




Manual Wire Pointer FAQ
Do I need to lubricate my manual pointer?
The pointer is permanently lubricated and the internal gears and bearings would only require attention if the lube becomes contaminated.
Occasionally the rolls should be cleaned to remove steel dust/chips.
How do I use the manual pointer?
Simple instructions:
- Starting with 4,8mm (.188 inch) diameter or smaller wire, use the Hand Pointer to reduce the diameter for approximately 50mm (2.0 inches) in length until the wire fits through the first die.
- The Pointer is operated by raising the arm lever to a vertical position, inserting the wire end into the appropriate groove and then rotating the handle 90° or more downward toward the operator.
- rotating the arm lever in the opposite direction will reverse the rolls, pushing the wire back out.
- rotating the arm lever in the opposite direction will reverse the rolls, pushing the wire back out.
- The wire must be worked several times back and forth through the pointer groove, rotating the wire axially 90° in between roll rotations to obtain a round diameter of the necessary size and length.
- If the wire is not axially rotated 90° periodically, the point cross-section will be oval shaped and not round. This will create problems at the die.
- If the wire is not axially rotated 90° periodically, the point cross-section will be oval shaped and not round. This will create problems at the die.
- Continue the pointing process through the descending sequence of grooves until the desired point diameter is obtained.
See next FAQ for safety precautions
Note: Use caution and keep clear of rotating equipment during operation.
How do I ensure the best outcome for my pointed wire?
NEVER jam oversize rod into an opening or attempt to skip grooves.
ALWAYS roll point progression and rotate the rod as explained above.
If the wire is not axially rotated 90° periodically, the point cross-section will be oval shaped and not round, creating problems at the die.
What does the Sjogren Manual/Hand Pointer cost?
Sjogren stands out in the market with unparalleled quality. Our pricing is tailored to your specific production requirements.
We offer volume pricing discounts, sharing the savings from manufacturing larger quantities directly with you. Consider this for bulk orders.
Depending on material costs, a manual pointer may cost a few thousand or more, but it comes with Sjogren's quality assurance guarantee for life and comprehensive support for all your wire tooling and quality testing needs.
Can I get custom rollers for my wire?
Sjogren is all about customization! We have functioned on an "Any System, Any Part" philosophy since our inception a century ago.
Get in touch with our team and let us know your specific production details and desired outcomes, and our expert team of engineers will work to develop something.
It is a rare case that we have to point you elsewhere, but if we can't do it, we will do our best to find someone that can!
Want to see more from Sjogren?
See our Power Pointer option designed for heavier-duty rod and wire drawing jobs or dive into our news section to find the latest updates from ''how-to' articles to upcoming events and past news.
Experience the Sjogren advantage—where simple ideas shape extraordinary solutions.
Check Out Sjogren News
See more of what Sjogren has to offer from educational content to the latest products and events. Subscribe to stay in-the-know!

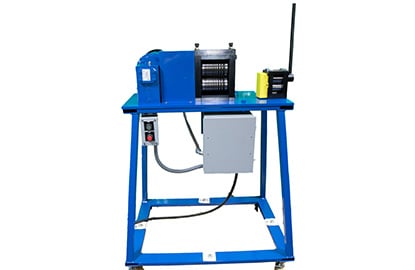

See The Power Pointer
