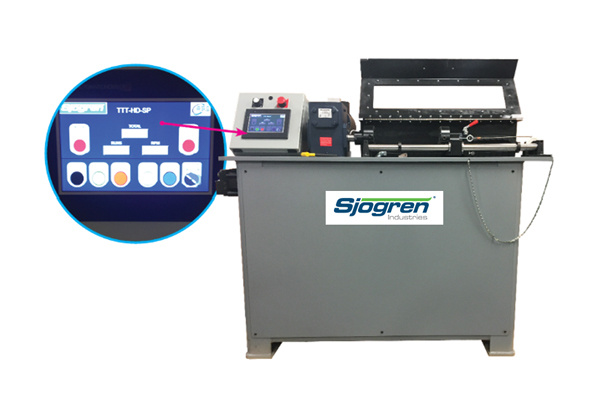

Torsion Twist Tester
The Ultimate Solution for Wire Quality Twist Testing
Twelve Twist Programs to Guarantee Flawless High Carbon Steel Wire and Copper/Aluminum Rod
Product Overview
Sjogren’s Torsion Twist Tester is available in three distinct models, each designed to cater to a broad spectrum of testing needs. It offers 12 customizable twisting programs, complete with cycle memory, ensuring comprehensive testing. Ideal for assessing brittleness, inclusions, hidden seams, and other defects, this tester is essential for evaluating high carbon steel wire or copper/aluminum rods.
The Torsion Twist Tester meticulously rotates a wire sample around its center to evaluate brittleness, inclusions, hidden seams, and other imperfections. Available in three models accommodating wire diameters from .010″ to .750″ (0.2mm to 19mm), it empowers your quality testing team to achieve faster, more efficient, and assured results.
Key Benefits
Discover the key features of the Torsion Twist Tester using our interactive model, or scroll down to explore more about the quality testing automation standard in the wire industry from Sjogren Industries!

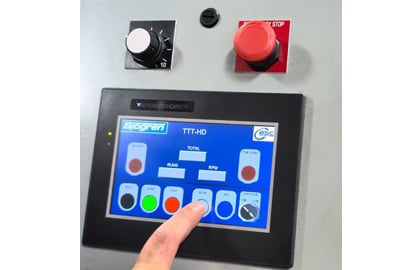

1Programmable
Programmable counter with automatic forward/reverse capability. The Sjogren TTT includes a digital, touch screen display for efficiency and quality.
2Holding Chucks
The TTT from Sjogren features advanced holding chucks with replaceable jaws, delivering reliable and precise clamping force for a secure and uniform grip on test pieces.
3Semi-Automatic
Safe, semi-automatic operation provides consistent output test results: meets ASTM Test Specifications E558 and A930

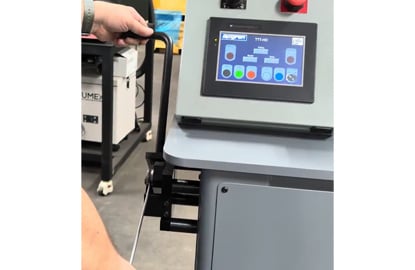

4Angle Bender (optional)
Not Shown on Interactive model, a manual bender is available on the left of the machine to add a 90° bend to each side of the test rod/wire to ensure firm grip in chucks, especially for very hard steel.
5Linear Weight
Depending on test specifications, in order to avoid small diameter wires coiling upon themselves, a linear weight can be introduced to prevent this.
The weight is dependent on the strength of the material and the test specifications.
6Models for Any Strength
Light, medium, and heavy-duty models available ranging form 1/3hp to 1.5hp for testing tensile strengths up to 450,000 PSI and speeds of up to 120 RPM with test sample lengths from as small as 2" (0,50 mm) to 24" (610 mm).
Why Choose Sjogren's Torsion Twist Tester?
The TTT meets ASTM Test Specifications E558 and A930 for ultimate quality assurance of your wire or rod.
-
1. Reliability
- Semiautomatic and digital, set your test parameters from RPMs to runs with touchscreen display
-
2. Options
- With three models available and a wide range of jaws, your testing is secure with Sjogren Industries
-
3. Visibility
- The TTT has a large viewing window on the safety closure allowing for visual confirmation of test sample quality
-
4. Flexibility
- Easy and dynamic, programmable testing allows you to set any parameters you or your customer requires
Industries & Applications
The Sjogren Torsion Twist Tester is trusted by many industries that require quality assurance including:

Industrial & Construction Manufacturing

Wire Processing & Wire Production

Aerospace

Automotive
Product Ranges For The Torsion Twist Tester
View Tech Specs for TTT Models

Specs | LD Model | MD Model | HD Model |
---|---|---|---|
Power | 1/3 HP 220V; 3 Amp; 1 PH, 60Hz | 1 Hp, 220 VAC; 5 Amp; 1 PH, 50/60 Hz | 1-1/2 HP 220V; 10 Amp; 1 PH, 60Hz |
Wire Range | .010″ to .090″ 0,25 mm to 2,3 mm |
.15″ to .375″ 3,81 mm to 9,53 mm |
.090″ to .312″ 2,3 mm to 8,0 mm |
Max Tensile Strength | 450,000 PSI (3100 Mpa) |
70,000 PSI (483 Mpa) Copper or aluminum | 450,000 PSI (3100 Mpa) or with extended capacity up to .375″ (9,5 mm) dia. material at 220,000 PSI (1860 Mpa) |
Sample Length Capacity | 2″ to 15″ 0,50 mm to 380 mm |
6″ to 20″ 152 mm to 500 mm |
6″ to 24″ 150 mm to 610 mm |
Max Operating Speed | 120 RPM | 60 RPM | 30 RPM |
Machine Width | 56" 1422 mm |
56" 1422 mm |
56" 1422 mm |
Machine Depth | 27" 685 mm |
27" 685 mm |
27" 685 mm |
Machine Height | 50" 1270 mm |
50" 1270 mm |
50" 1270 mm |
Working Height at Centerline of Wire |
39" 1000 mm |
39" 1000 mm |
39" 1000 mm |
Connect With A Specialist
Work with our team of wire tooling experts to determine the ideal part for you, or let us know which you need! Our team is here to support your production in any way we can.
See some of our satisfied customers




Torsion Twist Tester FAQ
Is there a benefit to running the test in reverse?
The Torsion Twist Tester is completely programmable to any test specifications. The option to reverse and forward the twist is completely dependent on your customers test specifications. The reverse can show any deformation after being twisted in one way, confirming if any breaks or inclusions were inflicted during the forward twist.
Do my test parameters stay loaded in the programmable display?
Your parameters will stay on the machine until you select the option to reset your test settings.
What does the home button do?
The home button indexes the rotating chuck to standard setting so you can reload it with a new material, or bring it back to the beginning setting of the test.
What does the Sjogren TTT cost?
Sjogren stands out in the market with unparalleled quality. Our pricing is tailored to your specific production requirements.
Depending on material costs and your requirements and added features, a Torsion Twist Tester generally costs roughly in the mid $40k range.
All Sjogren products come with Sjogren's quality assurance guarantee for life and comprehensive support for all your wire tooling and quality testing needs.
What if my jaws are not gripping my test material?
Sjogren is here to help! We offer custom and standard jaw replacements. Reach out to the team using the form below or email sales@sjogren.com to provide us your jaw details.
