AR | Adjustable Wire Guide Rollers

Precision Modular Rod And Wire Guiding

Modular wire guides for strip stock and any shaped wire, in any direction.

Product Overview

Sjogren’s AR Adjustable Roller Wire Guides ensure precise guidance for strip stock, shaped or round wire, and rod in any direction. These units are fully compatible with roller guides from other manufacturers.

The AR Series Wire Guides are versatile, serving various applications from wire mills to equipment manufacturers. They accommodate a wide range of material sizes, offer easy locking, and have low maintenance and installation costs, making them a smart choice for any direction!

They offer accurate wire guidance with minimal friction, and can be custom-designed to match your production.

Get your AR Guide Quote!

Key Benefits

Explore the essential features of our AR wire guide roller series with our interactive model, or scroll down to access detailed technical specifications, including precise measurements and information and further down some frequently asked questions!

Jump to Tech Specs

1 Hand Wheel

The hand wheel allows you to adjust both rolls simultaneously around the centerline of the unit

2 Easy Setting

Set screw located on main body allows for easy locking of the roll spacing into position for operation

3 Flexibility

With a variety of mounting holes, you can attach additional sections or place in any desired location.

Additionally, the guides can handle a variety of wire and rod types as well as flat cable from a coil

4 Hardened Steel Rollers

The durable, hardened steel rollers improve wear life and are not static, allowing for wire to roll smoothly across the guides rather than sliding, thereby minimizing marking risks

5 Straightener Opportunity

Can be combined with a wire straightener for inlet and outlet control of the wire

Why Choose Sjogren's AR Wire Guide Rollers?

The AR Series is made for a variety of wire and cable productions and can be customized to any operation.

1. Multiple Models

With 5 different models and 3 different sizes, we have something to fit any production pre-designed

2. Multi-Application

The AR series can manage wire, rod, and cable, in round, flat, or specialty shapes

3. Manual Adjust & Set

Set your guides easily with a wheel to adjust, and a set screw to set and get rolling

4. Low Cost, Easy Install

The AR series has flange mounts for easy install, and comes at a low cost, with minimal maintenance

Industries and Applications

The Sjogren AR Wire Guide Rollers are trusted by major players in a variety of industries serving and including these and more:

Industrial & Construction Manufacturing

Durability and longevity for tough productions

Wire Processing & Wire Production

Used for various wire drawing applications for minimal downtime and various product types

Energy & Power

Long life and reliability for essential wire components in energy sector

Medical Wire Production

Reliable precision where high-quality standards are required

Automotive

Designed for high tensile wires in various diameters

Aerospace

Reliable precision in mission-critical products in aerospace materials and parts

Industrial & Construction Manufacturing

Durability and longevity for tough productions

Wire Processing & Wire Production

Used for various wire drawing applications for minimal downtime and various product types

Energy & Power

Long life and reliability for essential wire components in energy sector

Medical Wire Production

Reliable precision where high-quality standards are required

Automotive

Designed for high tensile wires in various diameters

Reliable precision in mission-critical products in aerospace materials and parts

Product Measurements and Technical Specifications

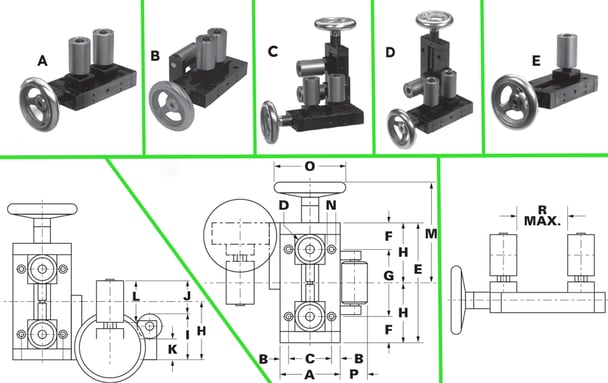

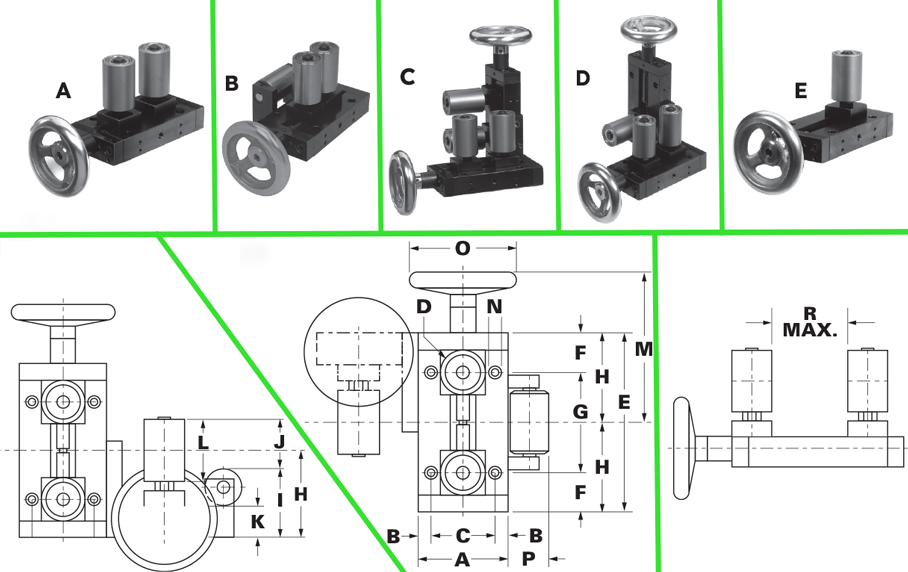

AR Wire Guide Technical Specifications

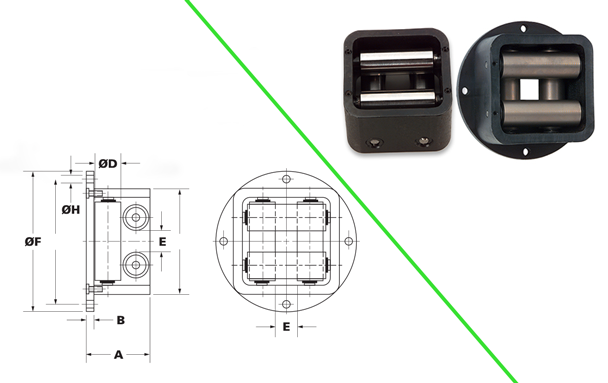

View RB Models And Measurements

	RB 5M Part # 338444-01	RB 10M Part # 338320-02	RB 20M Part # 447697-00	RB 30 Part # 447648-00
Wire Diameter	up to .197″ up to 5 mm	up to .394″ up to 10 mm	.394″-.787″ 10-20 mm	.394″-1.181″ 10-30 mm
A	1.44″ 36,6 mm	2.68″ 68 mm	3.70″ 94 mm	5.42″ 137 mm
B	.19″ 4,8 mm	.31″ 8,0 mm	.31″ 8,0 mm	.5″ 12 mm
C	2″ 51 mm	4″ 102 mm	5.5″ 140 mm	8″ 203 mm
Diameter D	.5″ 12,7 mm	1.102″ 28 mm	1.496″ 38 mm	1.875″ 48,5 mm
E	.433″ 11 mm	.787″ 20 mm	1.260″ 32 mm	2.953″ 75 mm
Diameter F	3″ 76 mm	5.31″ 135 mm	7.5″ 190 mm	11.81″ 300 mm
G	2.520″ 64 mm	4.724″ 120 mm	6.693″ 170 mm	10.433″ 265 mm
Diameter H	.220″ 5,6 mm	.276″ 7,0 mm	.281″ 7,0 mm	.359″ 9,6 mm

Connect With A Specialist

Work with our team of wire tooling experts to determine the ideal part for you, or let us know which you need! Our team is here to support your production in any way we can.

Tell Us Your Specs - Get Your Solution!

See some of our satisfied customers

Adjustable Wire Guide Roller FAQ

Learn more from frequently asked questions and addressed common concerns about our AR Wire Guides from others like you!

Will the AR be compatible with my unit from a different manufacturer?
Yes! We have designed our AR wire guides to completely align with any comparable inlet guide and any machine to ensure your worn model is replaced with Sjogren quality, worry free.

If a standard option is not available, we have expert engineers that will design your custom AR guide to fit your production.
Why rollers on the roller guides?
Sliding wire causes more friction, and with friction comes marking.

The rollers allow the wire to roll, rather than slide, into or out of the machine, keeping friction at a minimum, and your wire and cable or flat stock in top shape.
What if our rollers seize?
Depending on your production and lubrication, it is possible that with time the rollers will get “gunked up”.

Regular, planned preventive maintenance is essential to maintaining your roller guides.

They are built to last, and we are here to assist with troubleshooting and replacement as needed.
What are some common signs of wear to stay ahead of unplanned downtime?
Watch out for an amber color on your rolls. This indicated the temperature has reached 450 to 500°F/ 232°C to 260°C. This is a sign of bearing failure. Keep a thermometer nearby to check weekly on high-intensity productions.

Keep your lubricants at bay. Ensure a regular cleanup between new coils, or every shift to ensure longevity.
What do these AR guides cost?
Crafted from premium materials and engineered with precision, our products stand out for their durability, often outlasting typical wire guides by double.

The longevity and reliability of our products offer unmatched value. Additionally, we provide volume pricing on nearly all items, allowing you to benefit from cost efficiencies when ordering in bulk.

Our production process is optimized to reduce costs when manufacturing five or more units in a single run, and we share these savings with you.
