Wire Puller Hooks
Hooks For All Your Wire Pulling Needs
Product Overview

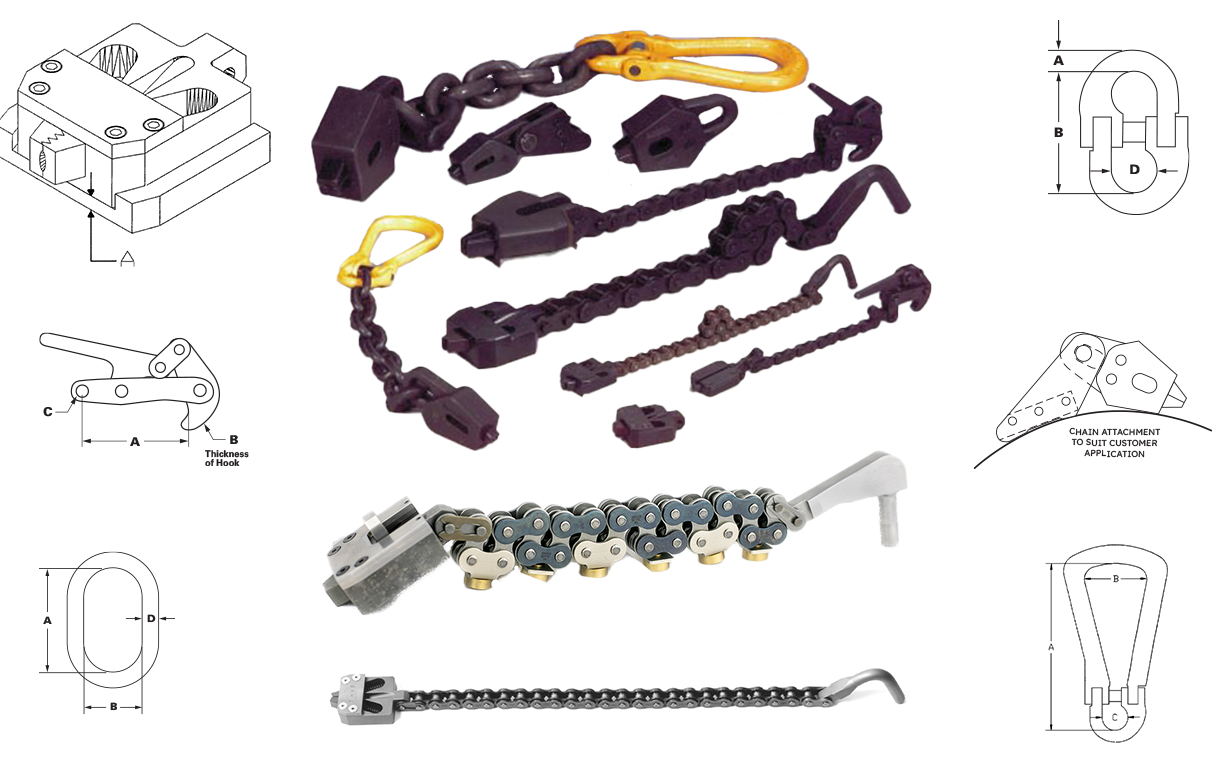

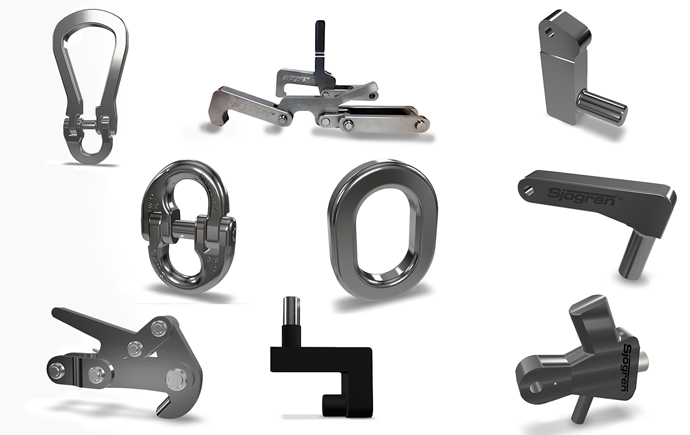

Sjogren Hooks are crucial for your wire drawing and puller grip assembly. Review our technical details to find the right hook for you. Whether you need oblong, hammerlock couplings, top-hole hooks, or long and short-throw options, Sjogren has you covered with both standard and custom solutions.
Explore our selections and request a quote today!
Jump to:

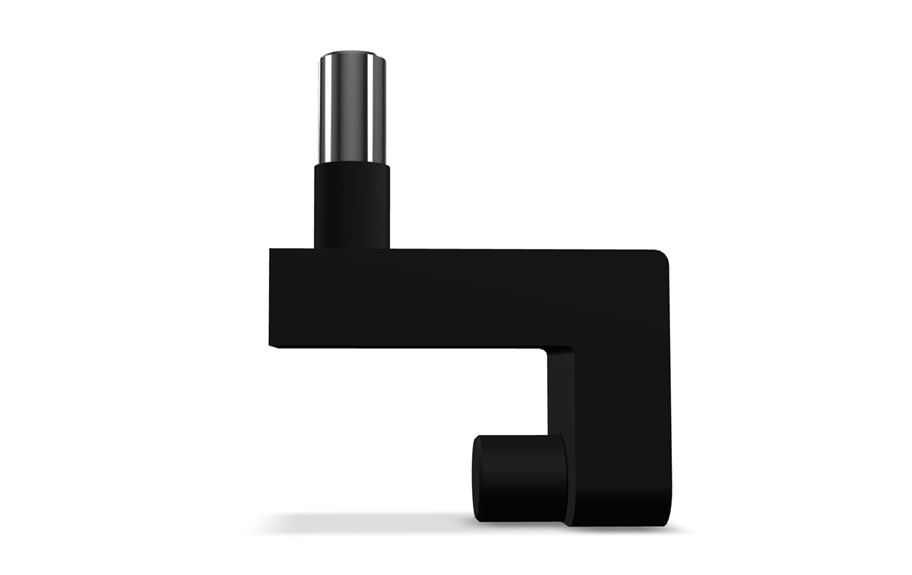

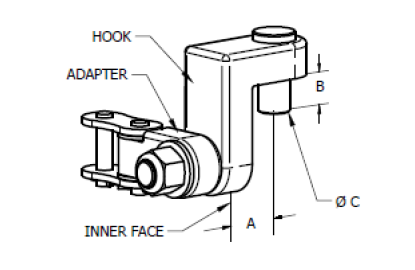

Top Hole Hooks
Product Specifications & Options For Top Hole Hooks
Our Top-Hole hooks are designed for light-duty wire pulling- often used on SH model pulling blocks. Review the specs below for our standard top-hole hooks to match your puller block.
View Top Hole Hook Options
Part
NumberAdapter Chain Size Pull Rating A B C Hole ∅ in Block 228422-01 119639-01 80 & 100 3000 / 5000 lbs.
1361 / 2268 kgs1.17″
29.6 mm.77″
19.6 mm.768″
19.5 mm.787″
20 mm228422-03 119639-01 80 & 100 3000 / 5000 lbs
1361 / 2268 kgs1.05″
26.6 mm.87″
22.1 mm.730″
18.5 mm.747″
19 mm

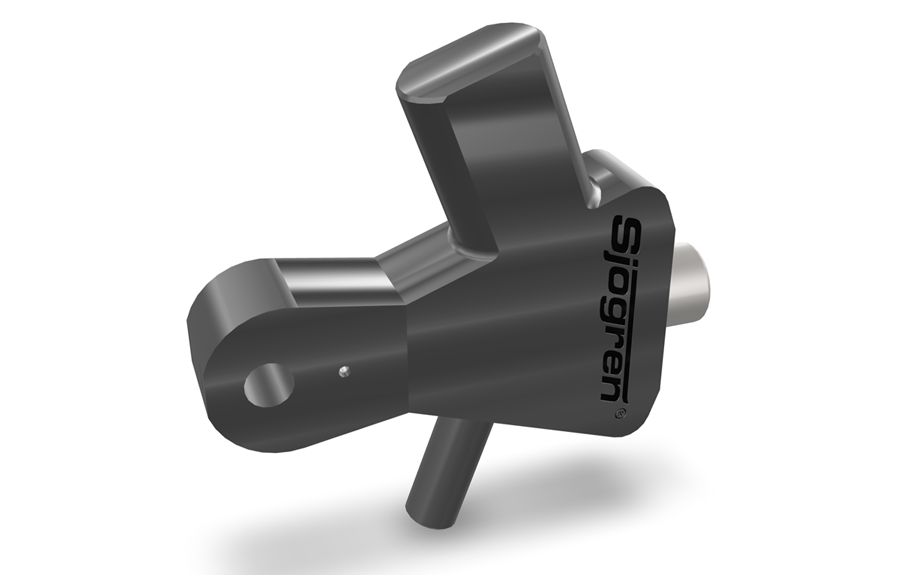

Swivel Hooks
Model Specifications & Options For Swivel Hooks
Our swivel hooks are designed for wire pulling with ease for your pulling block. Review the specs below for our standard swivel hook to match your puller block. The xx will be replaced by the revision that is specific to your Hook "A" and any other customization.
View Swivel Hook Options
Part Number Length “B” Range ∅ Hook “A” Range 338986-xx
0.6-1.4”
15-35,5 mm0.39-1.18″
10,0-30,0 mm

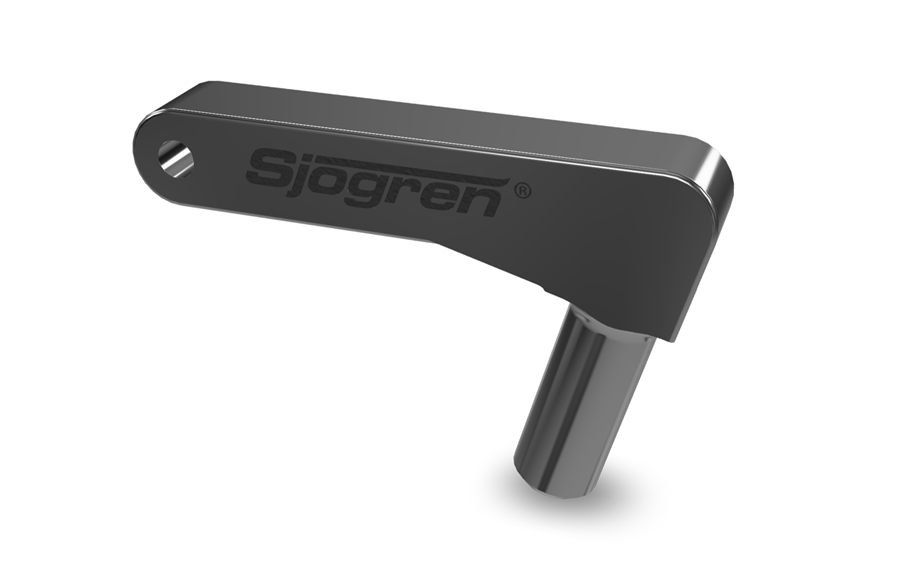

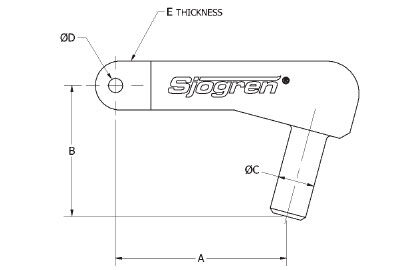

Sleeper and Hartley Hooks
Specifications & Options For Sleeper & Hartley Model Hooks
The SH hooks are designed for light-duty, Sleeper & Hartley model pulling blocks. Review the specs below for our standard SH hooks to match your puller block.
View S&H Hooks
Part No. Hook Size Length
“A”Length
“B”Diameter
“C”Pin Diameter
“D”Thickness
“E”Max Pull Rating
(lbs./kg)Weight
(lbs./kg)107262-00 #1 1.94″
49,21 mm1.88″
47,63 mm0.44″
11,11 mm0.22″
5,56 mm0.38″
9,53 mm3,000 lbs.
1360,8 kg.25 lbs.
0,11 kg107264-00 #2 2.63″
66,68 mm2.00″
50,80 mm0.56″
14,29 mm0.22″
5,56 mm0.50″
12,70 mm5,000 lbs.
2268 kg.5 lbs.
0,23 kg206152-00 #3 3.25″
82,55 mm2.25″
57,15 mm0.63″
15,88 mm0.33″
8,33 mm0.75″
19,05 mm8,000 lbs.
3628,8 kg.75 lbs.
0,34 kg204258-00 #4 3.75″
95,25 mm3.13″
79,38 mm0.88″
22,23 mm0.39″
9,92 mm1.00″
25,40 mm15,000 lbs.
6804 kg1.5 lbs.
0,68 kg204258-23 #4 3.75″
95,25 mm3.13″
79,38 mm1.16″
29,5 mm0.39″
9,92 mm1.00″
25,40 mm15,000 lbs.
6804 kg2 lbs.
0,91 kg204258-35 #4 3.75″
95,25 mm3.13″
79,38 mm0.77″
19,5 mm0.39″
9,92 mm1.00″
25,40 mm15,000 lbs.
6804 kg1.75 lbs.
0,79 kg

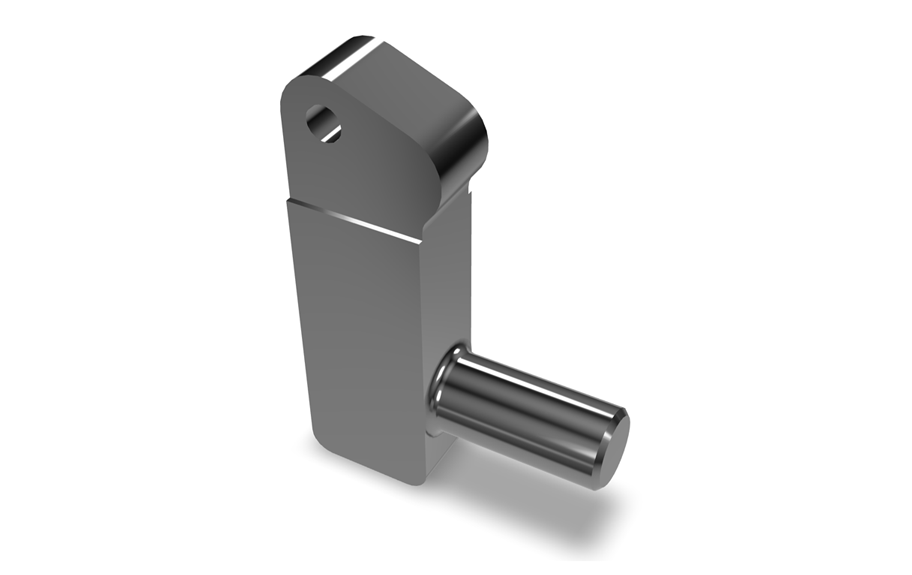

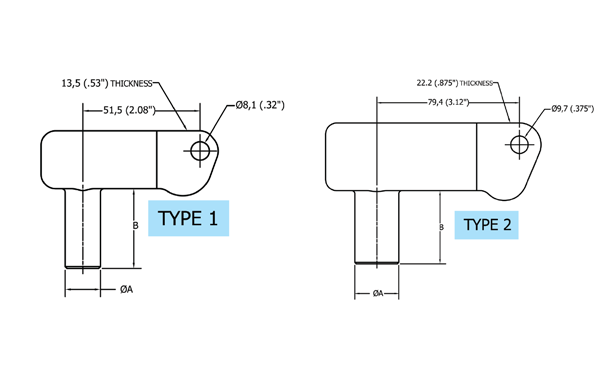

Roller Chain Hooks
Specifications & Options For Roller Chain (RC) Model Hooks
The RC hooks are designed for light-duty pulling blocks and have two standard types. Review the specs below for our standard RC hooks to match your puller block.
View RC (Roller Chain) Hook Options
Body Style Part Number ∅ Hook
“A” RangeLength
“B” RangeMax Pull Rating
(lbs./kg)Weight
lbs./kg)Type 1 228565-xx .315″ -.77″
8 mm-19,5 mm1.38″ -1″
35 mm-25 mm3,300 lbs.
1497 kg.56 lbs.
0,3 kgType 2 339052-xx 1.160″ -0.768″
29,5 mm-19,5 mm1″ -1.91″
25 mm-48,5 mm10,000 lbs.
4535 kg2.2 lbs.
1 kg

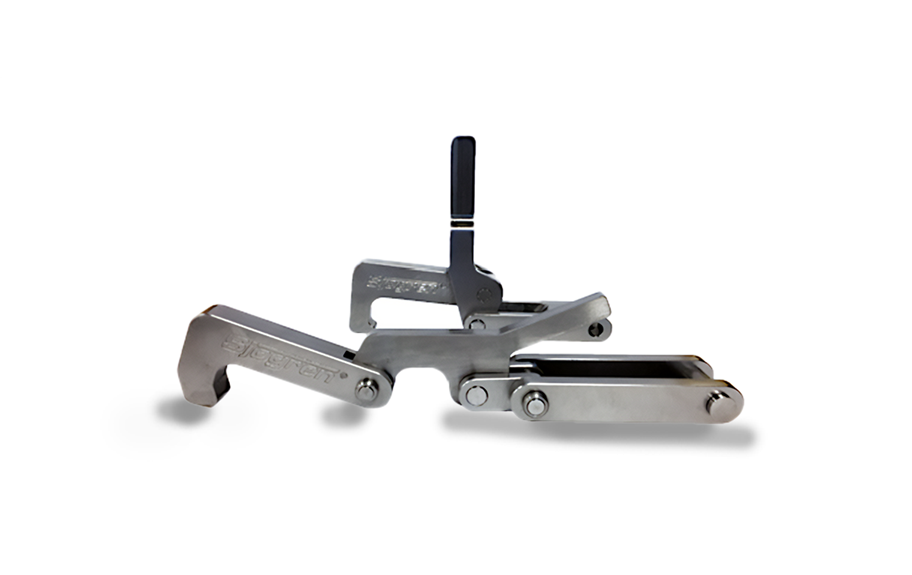

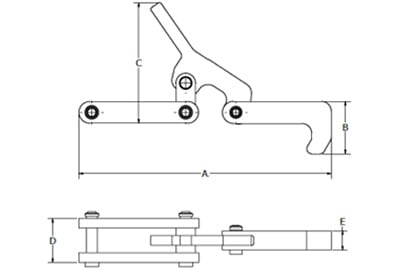

Long Throw - Short Throw Hooks
Specifications & Options For Long & Short Throw Hooks
The LT/ST style hooks are designed to be used in a key slot side application. They are rated for 15,000lbs. (7,000kg) pull force. The Long Throw version extends to 81mm when released, enabling all tension in the system to be removed. The Short Throw version will extend to 20mm when released, enabling all tension in the system to be removed. Both versions offer a quick release lever mechanism with only two moving parts. Review the specs below for our two standard models to match your puller block.
View Long & Short Throw Hook Options
Part No. Hook Size Length
“A”Length
“B”Height
“C”Thickness
“D”Width
“E”Max Pull Rating
(lbs./kg)Weight
(lbs./kg)339073-00 SHORT 9.67″
248 mm2.75″
70 mm6.81″
173 mm2.25″
57 mm0.75″
19 mm15,400 lbs.
7,000 kg5.45 lbs.
2,4 kg228624-00 LONG 12.84″
326 mm2.63″
67 mm6.15″
156 mm2.25″
57 mm1″
25,4 mm15,400 lbs.
7,000 kg5.75 lbs.
2,6 kg

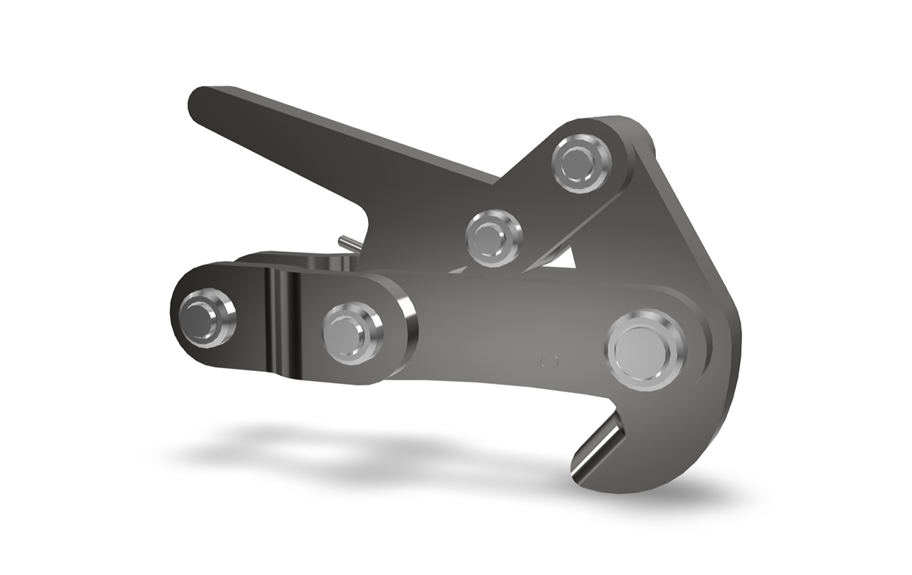

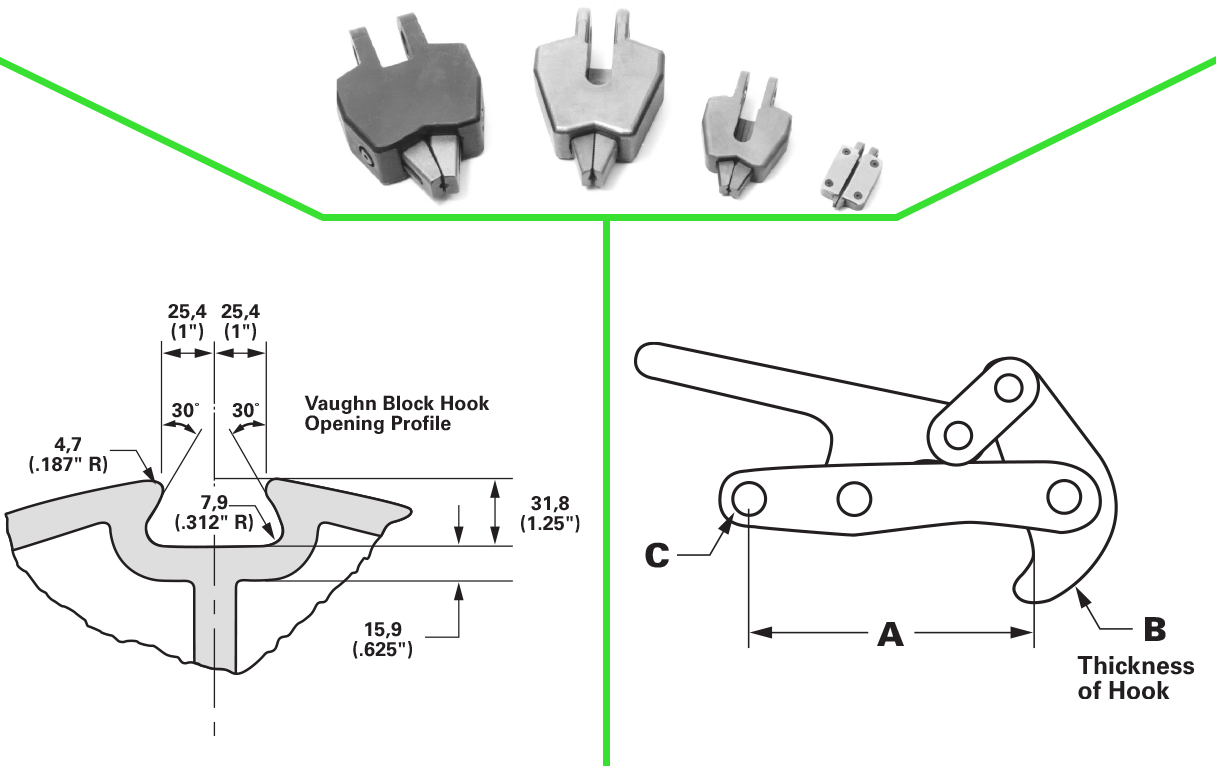

Quick Release Hooks
Specifications & Options For Quick Release Hooks
The QR hooks are designed Vaughn-style pulling blocks to enable easier handling by your operator. Review the specs below for our two standard models to match your puller block.
View Quick-Release Hook Options
Part
NumberHook Size Length
“A”Thickness
“B”Diameter
“C”Max Pull
Rating
(lbs./kg)Weight/Ft.
(lbs./kg)206991-00 Small 2.50″
63,50 mm0.38″
9,53 mm0.20″
5,16 mm1,000 lbs.
453,6 kg.5 lbs.
0,23 kg206990-00 Large 3.88″
98,43 mm0.50″
12,70 mm0.44″
11,11 mm8,000 lbs.
3628,8 kg1.25 lbs.
0,57 kg

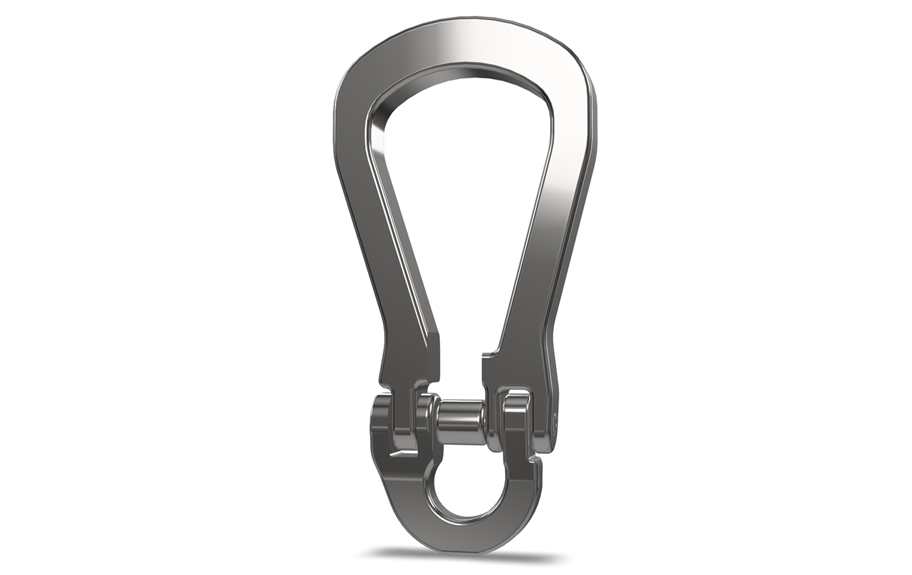

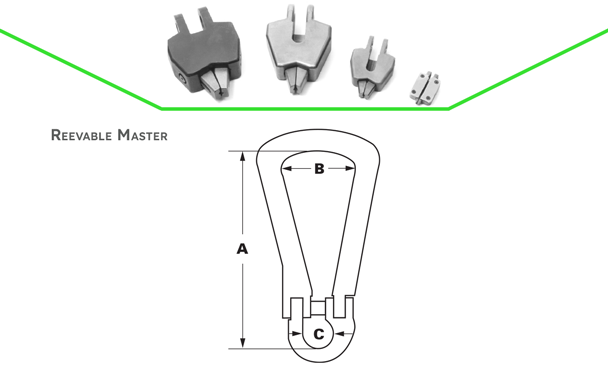

Reevable Master Hooks
Specifications & Options For Reevable Master Hooks
The Reevable Master (RM) hooks are designed Vaughn and Morgan-style pulling blocks. Review the specs below for our two standard models to match your puller block.
View Reevable Master Hook Options
Part
NumberLink
SizeLength
“A”Width
“B”Width
“C”Max Pull
Rating
(lbs./kg)Weight
(lbs./kg)227222-01 0.25″
6,35 mm5.00″
127,00 mm2.00″
50,80 mm0.56″
14,29 mm3,000 lbs.
1360,8 kg.5 lbs.
0,2 kg227222-02 0.38″
9,53 mm6.38″
161,93 mm2.63″
66,68 mm0.75″
19,05 mm6,000 lbs.
2721,6 kg1.25 lbs.
0,6 kg227222-03 0.50″
12,70 mm7.38″
187,33 mm2.88″
73,03 mm0.94″
23,81 mm10,000 lbs.
4536,0 kg2 lbs.
0,9 kg227222-04 0.63″
15,88 mm9.00″
228,60 mm3.25″
82,55 mm1.25″
31,75 mm15,000 lbs.
6804,0 kg3.5 lbs.
1,6 kg227222-05 0.75″
19,05 mm10.38″
263,53 mm4.13″
104,78 mm1.38″
34,93 mm25,000 lbs.
11340,0 kg5.75 lbs.
2,6 kg

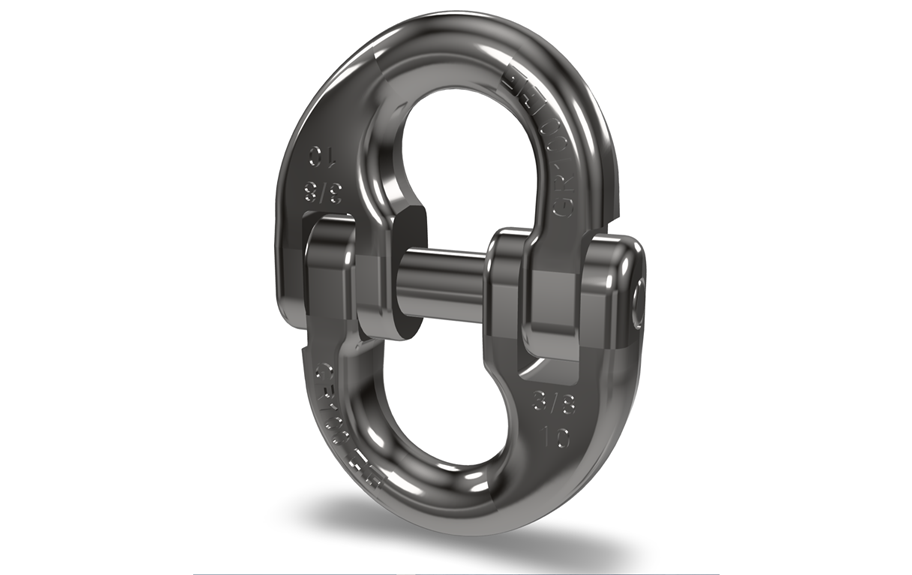

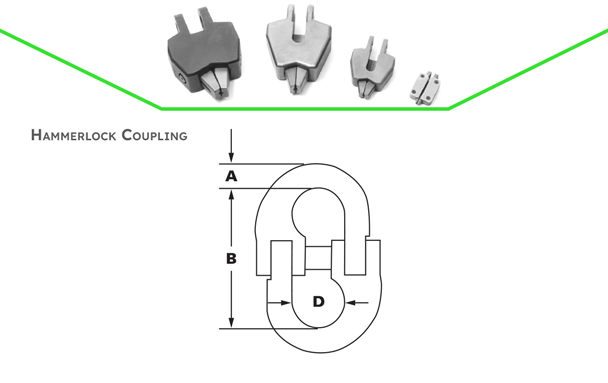

Hammerlock Couplings
Specifications & Options For Hammerlock Couplings
The Hammerlock Coupling by Sjogren is designed Vaughn and Morgan-style pulling blocks. Review the specs below for our two standard models to match your puller block.
View Hammerlock Coupling Hook Options
Part
NumberLink
SizeDiameter
“A”Length
“B”Diameter
“D”Max Pull
Rating
(lbs./kg)Weight
(lbs./kg)227223-02 0.25″
6,35 mm0.31″
7,94 mm1.81″
46,04 mm0.50″
12,70 mm3,000 lbs.
1360,8 kg.25 lbs.
0,1 kg227223-03 0.38″
9,53 mm0.44″
11,11 mm2.81″
71,44 mm0.81″
20,64 mm6,000 lbs.
2721,6 kg.5 lbs.
0,2 kg227223-04 0.50″
12,70 mm0.63″
15,88 mm3.38″
85,73 mm1.25″
31,75 mm10,000 lbs.
4536,0 kg1.25 lbs.
0,6 kg227223-05 0.63″
15,88 mm0.75″
19,05 mm4.06″
103,19 mm1.50″
38,10 mm15,000 lbs.
6804,0 kg2.25 lbs.
1,0 kg227223-06 0.75″
19,05 mm0.88″
22,23 mm4.81″
122,24 mm1.81″
46,04 mm25,000 lbs.
11340,0 kg3.5 lbs.
1,6 kg227223-07 0.88″
22,23 mm1.00″
25,40 mm5.44″
138,11 mm2.13″
53,98 mm30,000 lbs.
13608,0 kg6 lbs.
2,7 kg227223-08 1.00″
25,40 mm1.25″
31,75 mm5.75″
146,05 mm2.19″
55,56 mm40,000 lbs.
18144,0 kg8.5 lbs.
3,9 kg227223-09 1.25″
31,75 mm1.50″
38,10 mmm7.19″
182,56 mm2.81″
71,44 mm60,000 lbs.
27216,0 kg15.5 lbs.
7,0 kg

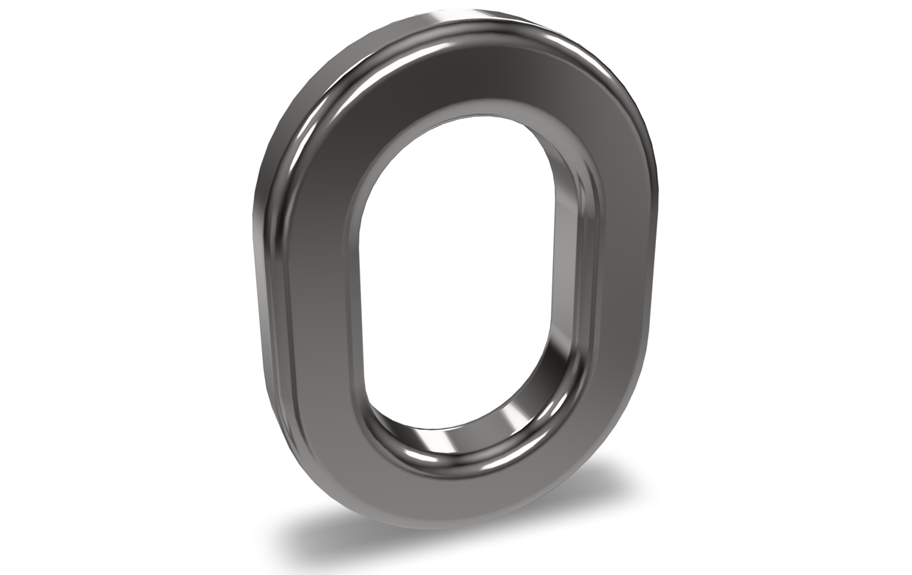

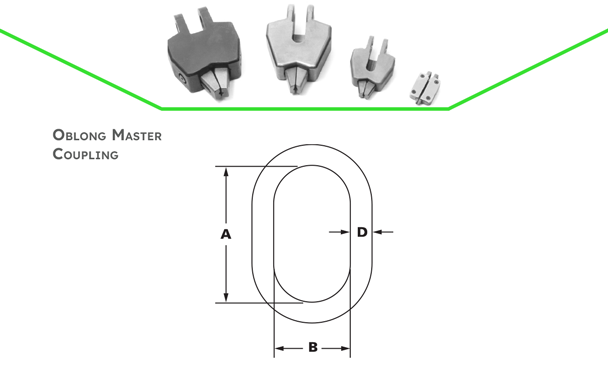

Oblong Master Hooks
Specifications & Options For Oblong Master Hooks
The Oblong Master Hook by Sjogren is designed a variety of wire pulling block assemblies with a wide range of pull forces from 3,000 lbs. to 60,000 lbs. Review the specs below for our two standard models to match your puller block.
View Oblong Master Hook Options
Part
NumberLink
SizeDiameter
“A”Length
“B”Diameter
“D”Max Pull
Rating
(lbs./kg)Weight
(lbs./kg)119082-01 0.25″
6,35 mm1.50″
38,10 mm0.88″
22,23 mm0.38″
9,53 mm3,000 lbs.
1360,8 kg.25 lbs.
0,1 kg119082-02 0.38″
9,53 mm2.00″
50,80 mm1.25″
31,75 mm0.50″
12,70 mm6,000 lbs.
2721,6 kg5 lbs.
0,2 kg119082-03 0.50″
12,70 mm2.50″
63,50 mm1.50″
38,10 mm0.69″
17,46 mm10,000 lbs.
4536,0 kg1 lbs.
0,5 kg119082-04 0.63″
15,88 mm3.00″
76,20 mm1.75″
44,45 mm0.81″
20,64 mm15,000 lbs.
6804,0 kg1.5 lbs.
0,7 kg119082-05 0.75″
19,05 mm3.50″
88,90 mm2.00″
50,80 mm0.94″
23,81 mm25,000 lbs.
11340,0 kg2.5 lbs.
1,1 kg119082-06 0.88″
22,23 mm4.00″
101,60 mm2.25″
57,15 mm1.06″
26,99 mm30,000 lbs.
13608,0 kg3.25 lbs.
1,5 kg119082-07 1.00″
25,40 mm5.25″
133,35 mm3.00″
76,20 mm1.25″
31,75 mm40,000 lbs.
18144,0 kg6 lbs.
2,7 kg119082-08 1.25″
31,75 mm6.25″
158,75 mm3.50″
88,90 mm1.50″
38,10 mm60,000 lbs.
27216,0 kg9 lbs.
4,1 kg
Industries and Applications
Sjogren’s Pulling Accessories span all industries for any pulling production needs, form large to small. Here are just a few:
Automotive
Ensures precision in wire processing for vehicle components
Aerospace
Provides secure grip and adjustment for high-precision wire in aircraft production
Construction Manufacturing
Reliable for heavy-duty pulling in structural applications from rebar/concrete reinforcements to roofing nails and fasteners
Wire Processing
Efficient handling of diverse wire types
Medical and Scientific Instruments
Supports precision applications with consistent performance
Welding and Mesh Weaving Wire
Strong pull forces with ultimate control
Industrial & Construction Manufacturing
Durability and longevity for tough productions
Wire Processing & Wire Production
Used for various wire drawing applications for mark-free wire extrusion and production
Energy & Power
Long life and reliability for essential wire components in energy sector
Medical Wire Production
Mark-free precision guides for wires and cables in high-quality applications
Automotive
Designed for high tensile wires in various diameters
Mesh & Welding Manufacturing
Diverse capabilities with durability and precision for any application
See some of our satisfied customers
Get A Quote For Your Matching Wire Pulling Hook For Your Puller Block Assembly– Fast & Reliable Pricing and Delivery!
Share your specifications for the wire puller block and grip, or let us know the ideal part that suits your needs, including any custom requirements. Our team will swiftly provide a personalized quote. Secure the optimal solution for precision wire tooling today!
