LD | Light Duty Straighteners

Optimized Wire Straightening at Budget-Friendly Costs

Product Overview

An economical solution for applications where frequent re-feeding or wire size adjustments aren’t required. The LD Light Duty Straightener Series features independently adjustable rolls on a single-plane assembly, ensuring consistent alignment and quick setup. Precision-engineered V-groove rolls with ball bearings provide extended roll life and stable performance. Available with custom groove profiles to match specific wire requirements, the LD Series is ideal for no frills, cost-effective straightening. This can handle very small wire to absolutely massive loads!

Get your Light Duty Straightener Quote!

Key Benefits

Learn more and interact with a model of the LD straightener or dive into technical specifications down the page.

Jump to Tech Specs

1 Economical Design

Affordable option for a variety of applications. This is our budget-friendly solution for projects that require efficiency without potentially unnecessary extras, ensuring reliable performance, no matter the job.

2 Custom Groove Profiles

V-groove rolls available to match specific wire types as well as custom precision shapes to match your wire exactly. Our rolls are machined in-house, never outsourced, even on small orders. Our LD also can handle a wider wire diameter range of 0,8 mm to 30,0 mm!

3 Single-Plane Assembly or Modular

Independently adjustable rolls ensure precise alignment on a single plane, or opt for a modular design to accommodate both horizontal and vertical adjustments tailored to your requirements.

4 Extended Roll Life

Hardened and polished rolls guarantee reliable straightening even under high tension. Our high-precision straightening utilizes a maximum number of rolls to deliver adequate reverse bend cycles for high-strength wire. Standard rolls feature a V-shape, with optional groove profiles available upon request.

5 Various Use Cases Small TO XXL

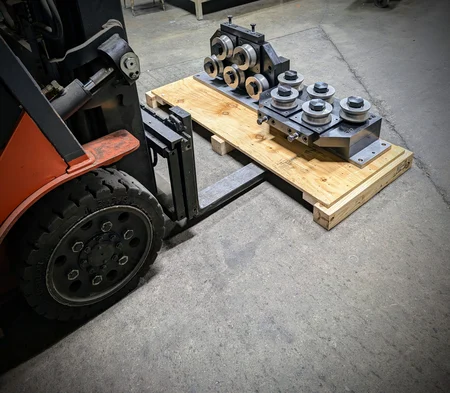

Our LD straighteners may not have many frills, but they get tough jobs done, light and small to heavy and hefty! See this example from one of our customers in 2024!

Why Choose Sjogren's Light Duty Straighteners?

The LD Straightener is ideal for a variety of production lines where frequent adjustments aren’t required and cost is more important. Its modular design allows for easy setup and long-term performance.

1. Cost Effective

Economic solution for many applications

2. Compact Setup

Lightweight and easy to install

3. Durable Rolls

Standard V-groove ball-bearing rolls provide extended life.

4. Flexible Configurations

Single plane or 2-plane applications available with custom groove profiles to suit your application.

Industries and Applications

The LD Straightener Series is designed to meet the precision needs of various industries, providing consistent performance and easy setup for no-frills wire processing.

Wire & Cable Manufacturing
Ideal for wire processing with consistent alignment for your smaller jobs and your largest!
Automotive Manufacturing
Used for forming wire components with precision.
Construction & Infrastructure
Handles mesh and reinforcing wire with stable performance.
Industrial Equipment
Suitable for almost any-duty wire used in manufacturing machinery and tools.
Wire & Cable Manufacturing
Ideal for wire processing with consistent alignment for your smaller jobs and your largest!
Automotive Manufacturing
Used for forming wire components with precision.
Construction & Infrastructure
Handles mesh and reinforcing wire with stable performance.
Industrial Equipment
Suitable for almost any-duty wire used in manufacturing machinery and tools.

Product Measurements and Technical Specifications

Light Duty Wire Straightener for 0,8 mm - 7,0 mm Specifications

The smaller of our two Light Duty Straightener models handles wire diameters from 0,8 mm to 7,0 mm with up to 3 to 9 rolls for alignment tailored to your production.

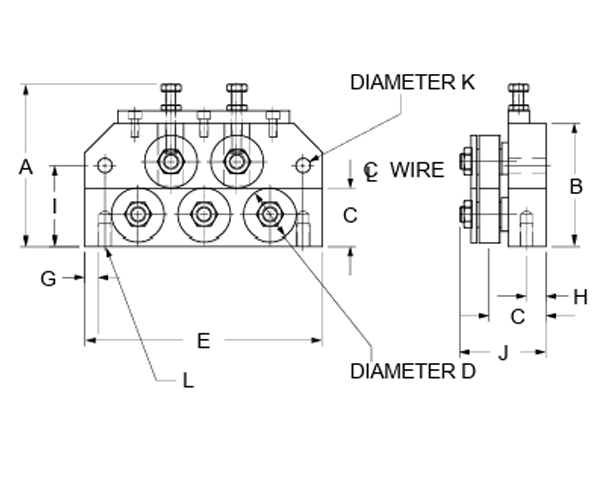

Light Duty Measurements for 0,8 mm - 7,0 mm

Model LD 22 LD 23 LD 30 LD 31 LD 32 LD 35 LD 40 LD 45
A 90 mm 90 mm 122 mm 122 mm 122 mm 117 mm 140 mm 152 mm
B 55 mm 55 mm 74 mm 74 mm 74 mm 80 mm 102 mm 112 mm
C 27 mm 2,5 mm 33 mm 33,5 mm 34 mm 38 mm 43 mm 46 mm
D Diameter 22 mm 23 mm 30 mm 31 mm 32 mm 35 mm 40 mm 45 mm
G 15 mm 15 mm 15 mm 15 mm 15 mm 15 mm 20 mm 20 mm
H 10 mm 10 mm 10 mm 10 mm 15 mm 15 mm 15 mm 15 mm
I 35 mm 35 mm 45 mm 45 mm 45 mm 52 mm 60 mm 70 mm
J 38 mm 38,5 mm 48 mm 48,5 mm 49 mm 57 mm 66 mm 75 mm
K Diameter 6,5 mm 6,5 mm 8,7 mm 8,7 mm 8,7 mm 11 mm 11 mm 13 mm
L M6 M6 M8 M8 M8 M10 M10 M12

Technical Specifications for Light Duty Series for 0,8 mm - 7,0 mm

Model Straightener Rolls Diameter D Wire Diameter Range Possible Number of Straightener Rolls Measurement E for 3 Straightener Rolls Measurement E for 5 Straightener Rolls Measurement E for 7 Straightener Rolls Measurement E for 9 Straightener Rolls
LD 22 22 mm 0,8 – 1,5 mm 3, 5, 7, 9 74 mm 100 mm 126 mm 152 mm
LD 23 23 mm 1,0 – 2,0 mm 3, 5, 7, 9 74 mm 100 mm 126 mm 152 mm
LD 30 30 mm 1,5 – 3,0 mm 3, 5, 7, 9 82 mm 120 mm 158 mm 196 mm
LD 31 31 mm 1,8 – 3,5 mm 3, 5, 7, 9 82 mm 120 mm 158 mm 196 mm
LD 32 32 mm 2,0 – 4,0 mm 3, 5, 7, 9 82 mm 120 mm 158 mm 196 mm
LD 35 35 mm 2,5 – 4,5 mm 3, 5, 7, 9 128 mm 171 mm 214 mm 257 mm
LD 40 40 mm 3,0 – 5,0 mm 3, 5, 7, 9 130 mm 180 mm 230 mm 280 mm
LD 45 45 mm 5,0 – 7,0 mm 3, 5, 7, 9 160 mm 238 mm 316 mm 394 mm

Light Duty Straightener for 7,0 mm - 30,0 mm Model Technical Specifications

The larger of our two Light Duty Straightener (LD Series) covers wire diameters from 7,0 mm to 30,0 mm  with options ranging from 3 to 9 rolls per plane depending on model.

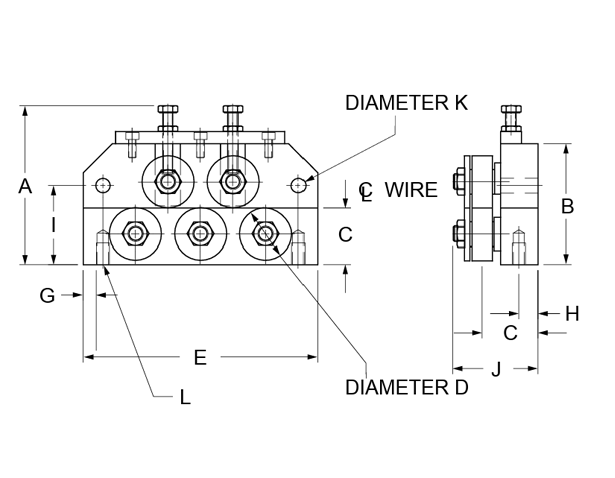

LD Light Duty 7,0 mm - 30,0 mm Series Measurements

Model LD 52 LD 80 LD 801 LD 110 LD 125 LD 150
A 170 mm 218 mm 320 mm 286 mm 431 mm 469 mm
B 119 mm 167,5 mm 171,5 mm 175 mm 240 mm 260,5 mm
C 56 mm 81 mm 120 mm 112 mm 160 mm 180 mm
D Diameter 52 mm 80 mm 80 mm 110 mm 125 mm 150 mm
G 20 mm 45 mm 47 mm 60 mm 106 mm 96 mm
H 20 mm 25 mm 71,5 mm 58,7 mm 98,7 mm 90,8 mm
I 90 mm 125 mm 180 mm 146,6 mm 220 mm 235 mm
J 84,5 mm 120,5 mm 146 mm 153 mm 206 mm 226 mm
K Diameter 13 mm 13 mm 17 mm 17 mm 17 mm 17 mm
L M12 M16 M20 M20 M20 M20

Technical Specifications for Light Duty Models for 0,8 mm - 7,0 mm

Model Straightener Rolls Diameter D Wire Diameter Range Possible Number of Straightener Rolls Measurement E for 3 Straightener Rolls Measurement E for 5 Straightener Rolls Measurement E for 7 Straightener Rolls Measurement E for 9 Straightener Rolls
LD 52 52 mm 7,0 – 9,0 mm 3, 5, 7, 9 164 mm 242 mm 320 mm 320 mm
LD 80 80 mm 8,0 – 15,0 mm 3, 5, 7 220 mm 350 mm 470 mm —
LD 801 80 mm 5,0 – 15,0 mm 5, 7 336 mm 466 mm — —
LD 110 110 mm 10,0 – 20,0 mm 3, 5, 7 322 mm 472 mm 622 mm —
LD 125 125 mm 15,0 – 25,0 mm 5, 7 500 mm 680 mm — —
LD 150 150 mm 20,0 – 30,0 mm 5, 7 632 mm 852 mm — —
