Product Overview

Sjogren’s Die Stringer is a go-to for safer wire stringing in wet-draw applications in the wire drawing industry. The motorized die stringer provides an easier, safer method to stringing dies on wire leaders for loading into wet draw machines.

With a max pull of 390 lbs. (177 kg) and a wire diameter range from .188" to .025" or 0,635 mm to 4,775 mm, your stringing prep is here. Optional wire pointer can be added to the mobile cart, with manual or power capability!

The Standard Unit is supplied with an electric motor driven pulling drum and die support bracket integrally mounted on a base plate.

The Die Stringer from Sjogren Industries is an efficient way to prepare wet drawing machines for the dies that need to be replaced. This can be done independently from the drawing machine, enabling faster changeover!

For added help, we have an optional die room puller that can assist with checking die size after grinding.

Key Benefits

Discover the key features of the Die Stringer with our interactive model or scroll down to explore more about the safer method for stringing dies from Sjogren Industries!

We also offer the Sjogren Die Room Puller for checking the size of a die after grinding. See the quick specs below!

1Safety Cover

Our safety cover prevents operation when opened, keeping your operators safe from the moving wheel. If opened when running, the machine will shut down.

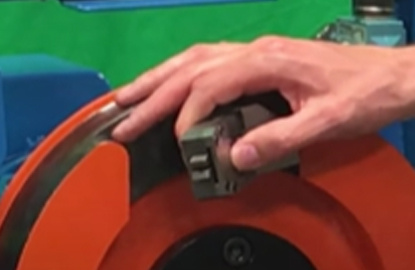

2SH Thumb Release Grip

Sjogren's Thumb-Release Grip is added for easy jaw pull-back for easy insertion and removal of wire.


Die-Stringer-Puller-Grip-visual-from-Sjogren-Industies



3Hands-Free Operation

The Sjogren Motorized Die Stringer features a foot-pedal control, ensuring enhanced safety with its hands-free functionality.

4Optional Pointer

A manual wire pointer or power wire pointer can be added to the die stringer to enhance production speeds and efficient gripping with a precision pointed wire.

Manual---Hand-Pointer-for-Wire-for-product-listing-page



5Die Box

A die box where the die rolls against can be filled with a wet lubricant to enable the wire to run smoothly through the stringer.

Why Choose Sjogren's Motorized Die Stringer?

The Die Stringer from Sjogren enhances your speed and significantly improves operator safety.

  1. 1. Safety

  2. Setting up wire drawing operations is a dangerous job, the die stringer enhances operator safety, making stringing safer
  3.
  1. 2. Mobility

  2. The Die Stringer is optionally mounted on an easy-to-maneuver, heavy-duty caster-wheeled base, making it easy to move between production lines
  1. 1. Speed

  2. With your operators able to string more efficiently, the die stringer enhances your wire drawing speeds
  3.
  1. 2. Easy Lube

  2. A swiveling die support bracket with reservoir for your lubricant is right next to the stringer, keeping things running smoothly.

Industries & Applications

The Sjogren Die Stringer is trusted by many industries that require quality, safety and consistency:

Construction and Infrastructure Icon

Industrial & Construction Manufacturing

Speed on base for construction and heavy duty processing made easy
Wire Drawing and Wire Production Industries Served by Sjogren

Wire Processing & Wire Production

The Die Stringer brings flexibility, efficiency and mobility to each wire drawing line
jewelry and fine wire industries served by Sjogren

Jewelry and Fine Wire

where delicate wire processing needs die stringing for bracelets and necklaces
energy and power transmission industry icon

Energy Sector

High-tensile wire and for long draw processes use the stringer for quality and speed

automotive industries served by Sjogren

Automotive

Ensure any high-quality wire is drawn with efficiency

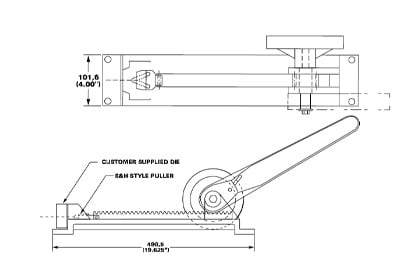

Sjogren's Die Room Puller Tech Specs

View Tech Specs and Model Options for the Die Room Puller Die-Room-Puller-Model-Specs-from-Sjogren-Industries

For Checking Size of Die After Grinding

Part
Number
Grip Head
Model
Max Wire
Size
Min Wire
Size
Weight
(lbs./kg)
404236-01 SH #0 .078"
2,0 mm
-- 29.5 lbs.
13,4 kg
404236-00 SH #1 1.56"
4,0 mm
.0625"
1,6 mm
29.5 lbs.
13,4 kg
404236-02 SH #2 .203"
5,2 mm
.125"
3,2 mm
30 lbs.
13,6 kg
404236-03 SH #3 .375"
9,5 mm
.0937"
2,4 mm
30.5 lbs.
13,9 kg
404236-04 SH #4 .5"
12,7 mm
.25"
6,3 mm
31.75 lbs.
14,4kg

NOTE: Maximum pull for all sizes is 1,500 lbs (680,4 kg).

Connect With A Specialist

Work with our team of wire tooling experts to determine the ideal part for you, or let us know which you need! Our team is here to support your production in any way we can.

See some of our satisfied customers

Fenn Torin | Sjogren Partner
Loos and Co Logo | a Sjogren Partner
Insteel- Wire | A Sjogren Partner
Lincoln Electric | Sjogren's Happy Customers

Sjogren Die Stringer FAQ

Learn more from frequently asked questions and addressed common concerns about Sjogren's Motorized Die Stringer from others like you.

What are the capabilities for diameter and pull force for the die stringer?

The Die Stringer can manage wire from .188" to .025" or 0,635 mm to 4,775 mm with mac pull of 390lbs. or 177kg.

Why won't the grip accept my wire easily?

The ends of wire before entering the die stringer are not always rounded our pointed enough. pointing is recommended, and for precision and efficient pointing, the optional manual or power pointer is a highly recommended addition to your stringer.

How is the drum set up on the die stringer?

A 12" (304,8 mm) diameter drum features clutch-type mounting for easy manual positioning.

What does the Sjogren Die Stringer cost?

Sjogren stands out in the market with unparalleled quality. Our pricing is tailored to your specific production requirements.

The cost of a die stringer varies significantly, ranging from $10,000 to the mid-$20,000s or more in some cases. This is heavily influenced by material costs at the time of purchase, your specific needs, and any additional features.

We provide the stringer as a benchtop model without a base and with a manual pointer, along with options for a swivel-caster frame for enhanced mobility, available with either a manual or hydraulic pointer. While several factors can affect the total cost, the return on investment is typically realized within six months due to increased efficiencies.

All Sjogren products come with Sjogren's quality assurance guarantee for life and comprehensive support for all your wire tooling and quality testing needs.

How is the DS powered?



3/4 HP, single-phase, 115/230 VAC motor equipped with a foot switch for precise operator control.

This versatile single-phase design is an ideal choice for any production facility, offering easy mobility and compatibility with standard outlets for seamless integration.
