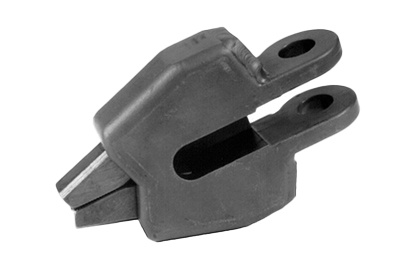

Medium Duty Vaughn Wire Pullers
Built for Strength and Efficiency
High-Performance Wire Pullers for Vaughn-Style Blocks
Product Overview
Sjogren’s Medium Duty Wire Pullers are designed for Vaughn-style blocks, featuring a lightweight one-piece casting that enhances operator efficiency. These pullers accommodate wire diameters up to 1.25″ (31.8mm) and handle pulling forces up to 50,154 lbs. (22,750 kg). The optional thumb-release mechanism allows for quick, one-handed operation, making it ideal for demanding industrial applications.
Only available from Sjogren and our affiliates noted on our rep locator page!
Key Benefits
Get to know the medium duty puller with our interactive model, highlighting some of its key benefits! This puller is designed for Vaughn-style pulling blocks.
You can also skip right down to technical specifications which will provide you dimensions and options.
We also provide:
- standard recommended full puller assemblies
- accessories
- spare parts including jaws and springs!

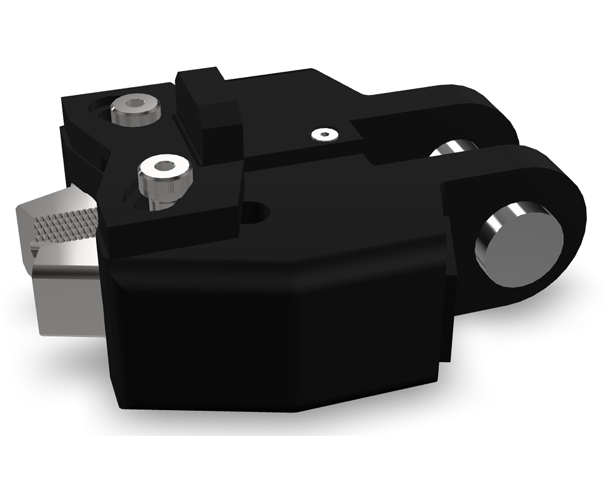

1 Lightweight
One-piece casting is lightweight but still can hang with the big boys. This makes the operators job easier and more efficient.
2 Optional Thumb-Release
An Optional thumb Release model allows for one-handed operation. It opens both jaws simultaneously, increasing efficiency.
3 Wide Range of Wire Sizes
Accommodates wire diameters up to 1.25″, covering diverse applications.
4 High Wire-Pulling Capacity
Handles up to 50,154 lbs. ensuring reliability for heavy-duty applications. Works with leaf-style chains with quick-release hook assemblies and link-chain for heavier loads.
5 Cast One-Piece Body
The one piece, cast body adds durability and longevity to your puller assemblies life, reducing downtime and enhancing productivity.
6 Jaw Lips
lips mid jaw allow for easy insertion for pointed wire, further enhancing performance and speed on the production line.
Why Choose the Medium Duty Wire Puller Model from Sjogren?
Engineered for high-volume industrial use, Sjogren’s medium duty/Vaughn-style Wire Puller combines strength, efficiency, and ease of use — ensuring reliable performance under the most demanding conditions.
1. Consistent Grip Under High Loads
Maintains secure wire hold up to 50,154 lbs without slippage or deformation.
2. Fast, One-Handed Operation
Optional thumb-release mechanism allows for quick jaw opening and closing, increasing efficiency.
3. Lightweight but Strong
One-piece casting reduces machine load while handling heavy-duty applications.
4. Minimal Downtime with Easy Jaw Replacement
Jaws can be replaced quickly using a hex key, ensuring continuous operation.
Industries and Applications
The Medium Duty Vaughn Puller line from Sjogren is designed to meet the demands of key industries including but not at all limited to:
Automotive
Ensures precision in wire processing for vehicle components
Aerospace
Provides secure grip and adjustment for high-precision wire in aircraft production.
Construction Manufacturing
Reliable for heavy-duty pulling in structural applications from rebar/concrete reinforcements to roofing nails and fasteners
Wire Processing
Provides secure grip and adjustment for high-precision wire in aircraft production.
Medical and Scientific Instruments
Supports precision applications with consistent performance.
Automotive
Ensures precision in wire processing for vehicle components
Aerospace
Provides secure grip and adjustment for high-precision wire in aircraft production.
Construction Manufacturing
Reliable for heavy-duty pulling in structural applications from rebar/concrete reinforcements to roofing nails and fasteners
Wire Processing
Provides secure grip and adjustment for high-precision wire in aircraft production.
Medical and Scientific Instruments
Supports precision applications with consistent performance.
V-Series Wire Puller Product Measurements and Technical Specifications
Sjogren’s Vaughn Wire Puller has the versatility to accept a wide range of wire diameters and pulling force and totally compatible as a replacement for Vaughn-style wire pullers/wedge grips, working with both leaf-style chains with quick release hook assemblies as well as link chain for heavier loads.
The V-Series thumb-release offers easily replaceable jaws using only a hex key wrench and is compatible with a variety of Vaughn-style puller chains and assemblies, just like the standard Vaughn wedge grips.
The V-Series thumb-release offers easily replaceable jaws using only a hex key wrench and is compatible with a variety of Vaughn-style puller chains and assemblies, just like the standard Vaughn wedge grips.

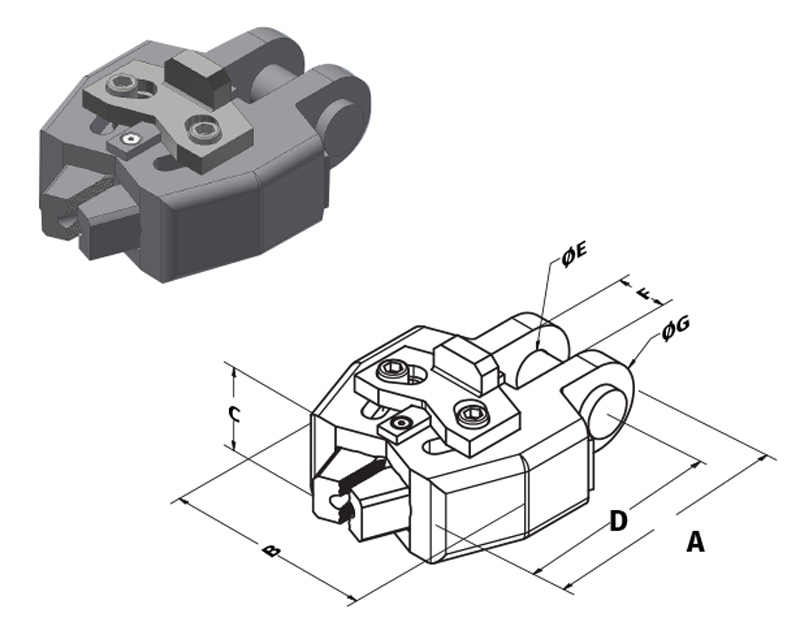

V-TR Thumb Release Wedge Grip Specifications
Thumb Release Puller Models and Tech Specs
Part No. Grip Head Model Max. Pointed Size Min. Wire Size Max. Pull (lbs./kgs) A B C D DIA “E” F G Weight (lbs./kgs) 306095-03 117-142D-TR .75″
19.0 mm.375″
9.5 mm15,000 lbs.
6803.8 kg5.44″
138.2 mm4.25″
108 mm1.75″
44.5 mm4.56″
115.8 mm.625″
16 mm0.81″
20.6 mm2.13″
54.1 mm6.5 lbs.
2.94 kg406712-28 117-96A-TR 1.000″
25.4 mm0.625″
15.8 mm30,000 lbs.
13607.8 kg5.68″
144.3 mm4.63″
117.5 mm1.88″
47.6 mm4.75″
120.7 mm.845″
21.4 mm1.13″
28.6 mm1.37″
34.8 mm8.0 lbs.
3.63 kg407374-03 117-192A-TR 1.06″
27 mm.750″
19.1 mm55,000 lbs.
24,948 kg7.81″
198.4 mm6.5″
165.1 mm3″
76.2 mm6.31″
160.3 mm1.5″
38.1 mm1.5″
38.1 mm3″
76.2 mm7.5 lbs.
3.4 kg

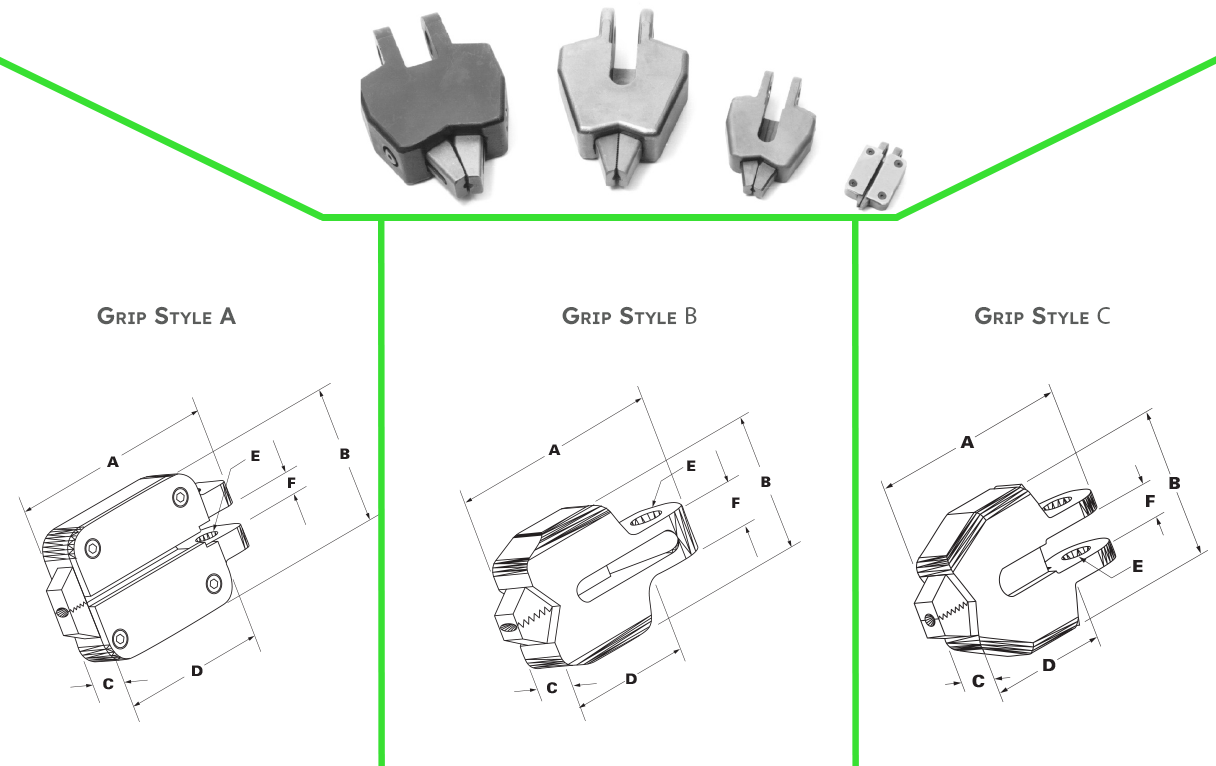

V-Series Wedge Grip Specifications
View Medium-Duty V-Series Puller Models and Tech Specs
Body
StylePart No.*
Grip Head Model
Max. Pointed Size Min. Wire
SizeMax. Pull (lbs./kgs) A B C D DIA “E” F Weight (lbs./kgs) A 306092-02
117-142A .125″
3,2 mm— 1,000 lbs.
455 kg2.31″
58,74 mm1.50″
38,10 mm0.56″
14,29 mm1.81″
46,04 mm0.25″
6,35 mm0.25″
6,35 mm.375 lbs.
0,2 kgsB 306093-02 117-138A .25″
6,4 mm.062″
1,6 mm8,000 lbs.
3636 kg3.00″
76,20 mm2.00″
50,80 mm0.75″
19,05 mm1.81″
46,04 mm0.44″
11,11 mm0.63″
15,88 mm.75 lbs.
0,3 kgC 306094-02 117-140A .5″
12,7 mm.187″
4,8 mm10,000 lbs.
4545 kg3.75″
95,25 mm2.94″
74,61 mm1.00″
25,40 mm2.38″
60,33 mm0.56″
14,29 mm0.63″
15,88 mm1.5 lbs.
0,7 kgsC 306095-02 117-142D .75″
19,1 mm.375″
9,5 mm15,000 lbs.
6818 kgs5.44″
138,11 mm4.25″
107,95 mm1.75″
44,45 mm3.81″
96,84 mm0.63″
15,88 mm0.81″
20,64 mm6 lbs.
2,7 kgsC 406712-02 117-96Ap; 1.0″
25,4 mm.625″
15,9 mm30,000 lbs.
13636 kgs5.56″
141,29 mm4.63″
117,48 mm1.88″
47,63 mm3.81″
96,84 mm0.88″
22,23 mm1.13″
28,58 mm7.5 lbs.
3,4 kgsC 306096-02 117-186C** 1.0″
25,4 mm.625″
15,9 mm30,000 lbs.
13636 kgs5.69″
144,46 mm4.63″
117,48 mm1.88″
47,63 mm3.81″
96,84 mm0.88″
22,23 mm1.13″
28,58 mm7.5 lbs.
3,4 kgsC 407374-02 117-192A** 1.25″
31,8 mm1.0″
25,4 mm50,000 lbs.
22727 kgs7.81″
198,44 mm6.50″
165,10 mm3.00″
76,20 mm4.50″
114,30 mm1.50″
38,10 mm1.50″
38,10 mm24 lbs.
10,9 kgs**Complete assembly, includes all components as shown above
**Retaining screw in body to match slot in jaws

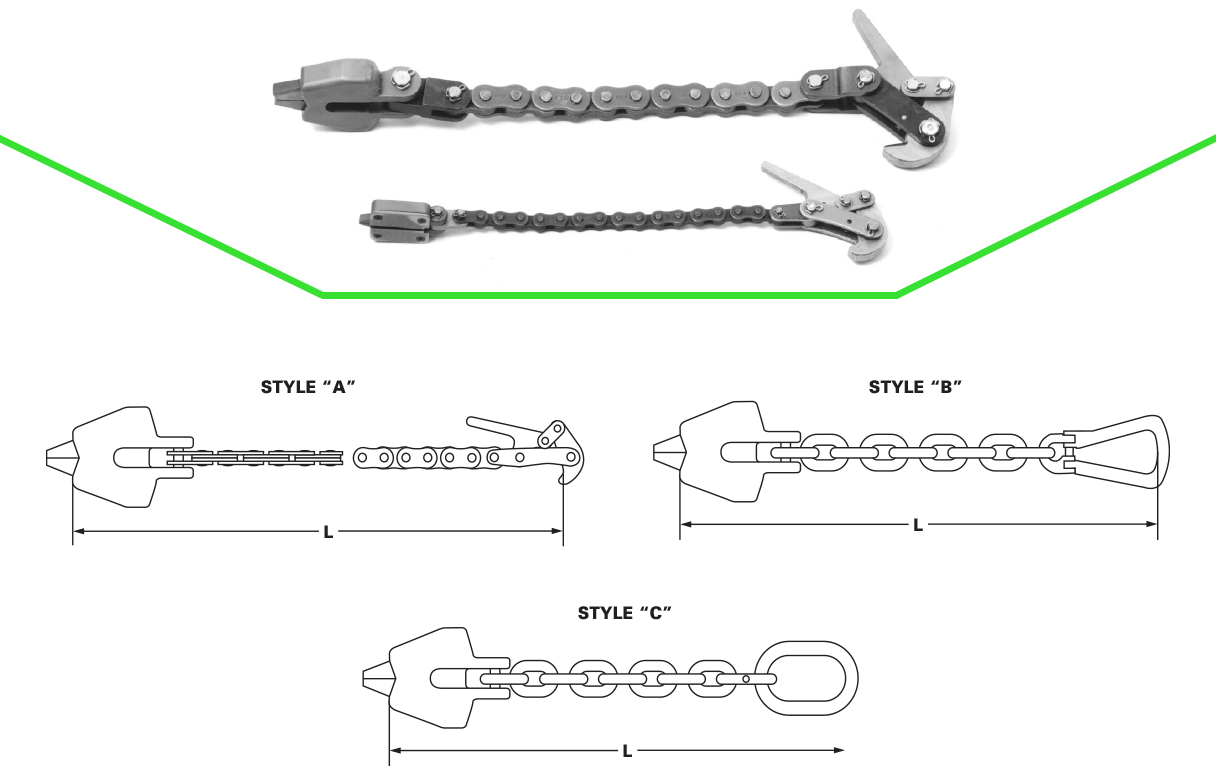

Vaughn-Style (V-Series) Wire Grip Standard Assemblies
For our V-Series Puller Models designed for Vaughn wire pulling grips, we have curated a selection of standardized recommended assemblies. These are pre-designed with part numbers for straightforward selection. Discover our recommendations below!
View V-Series Standard Recommended Assembly Options
Assembly Style Assembly
NumberGrip Head Number Max.
Pointed
SizeMin.
Wire
SizeMax.
Pull
(lbs./kg)Chain
StyleChain Size Hook
StyleHook
SizeStandard
Length
“L”Weight (lbs./kg) Replaces
Vaughn
ModelA 306092-01 117-142A .125″
3,2 mmN/A 1,000 lbs.
453,6 kgLeaf AL522 Quick-Release Small 14.5″ 1.25 lbs.
0,6 kg117-123A B 307956-00 117-142A .125″
3,2 mmN/A 1,000 lbs.
453,6 kgLink 3/16 Reevable .25 13.25″ 1.25 lbs.
0,5 kg117-134B A 306093-01 117-138A .25″
6,4 mm.062″
1,57 mm5,000 lbs.
2268 kgLeaf BL822 Quick-Release Large 19.375″ 3.75 lbs.
1,7 kg117-130A A 307957-00 117-138A .25″
6,4 mm.062″
1,6 mm2,000 lbs.
907,2 kgLeaf BL822 Quick-Release Medium 19.375″ 3.5 lbs.
1,6 kg117-132B A 306094-01 117-140A .50″
12,7 mm.187″
4,7 mm8,000 lbs.
3628,8 kgLeaf BL1034 Quick-Release Large 20.375″ 4.5 lbs.
2,0 kg117-129B B 307958-00 117-140A .50″
12,7 mm.187″
4,7 mm10,000 lbs.
453,6 kgLink 1/2 Reevable .5 24.625″ 6.5 lbs.
2,9 kg117-129A A 306095-01 117-142D .75″
19,0 mm.375″
9,5 mm8,000 lbs.
3628,8 kgLeaf BL1034 Quick-Release Large 22.5″ 9.25 lbs.
38,8 kg117-157A B 307959-00 117-142D .75″
19,0 mm.375″
9,5 mm15,000 lbs.
6804 kgLink 3/4 Reevable .75 36″ 20 lbs.
9,0 kgs117-132B C 4067121-01 117-96A 1.0″
25,4 mm.625″
15,9 mm30,000 lbs.
13608 kgLink 7/8 Oblong .87 38.25″; 21.75 lbs.
9,9 kg117-130B C 306096-00 117-186C 1.0″
25,4 mm.625″
15,9 mm30,000 lbs.
13608 kgLink 7/8 Oblong .87 38.25″ 21.75 lbs.
9,9 kg117-188A C 407383-00 117-208A 1.125″
28,6 mm.875″
22,2 mm30,000 lbs.
13608 kgLink 7/8 Oblong .87 26.125″ 29.25 lbs.
13,3 kg117-156B C 407374-00 117-192A 1.125″
28,6 mm.875″
22,2 mm40,000 lbs.
18144 kgLink 1 Oblong 1 31.5″ 56 lbs.
25,4 kg117-191A
Accessories & Chains/Hooks for Vaughn Wire Pulling Grips
Our comprehensive assemblies for all pullers come with an extensive array of options, including safety chains, roller chains, and hooks that range from quick-release options to reevable masters, hammerlock couplings and oblong masters. These options ensure seamless integration into any production line. Discover more about your accessory and assembly options below.
Accessories

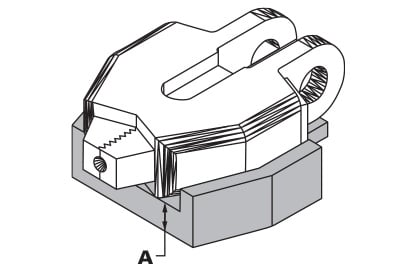

View Aluminum Shoes for Vaughn Style Grips
An optional aluminum shoe can help reduce marking on the capstan caused by slap during start-up.
Part No. Fits Grip Head Thickness “A” 338298-00 117-142A 0.25″
6,35 mm338299-00 117-138A 0.25″
6,35 mm338300-00 117-140A 0.50″
12,70 mm338125-00 117-142D/142D-TR 0.75″
19,05 mm338301-00 117-96A /96A-TR 0.50″
12,70 mm338302-00 117-186C 0.50″
12,70 mm338303-00 117-208A 0.50″
12,70 mm338297-00 117-192A 0.50″
12,70 mm
Chains/Hooks for Vaughn (V-Series) Model Pullers
Our comprehensive assemblies for all of our offered wire pulling grips come with an extensive array of options, including link and leaf-style chains, and hooks such as top hole and swivel hooks with adapters, ensuring seamless integration into any production line. Discover more about wire puller assembly options below!

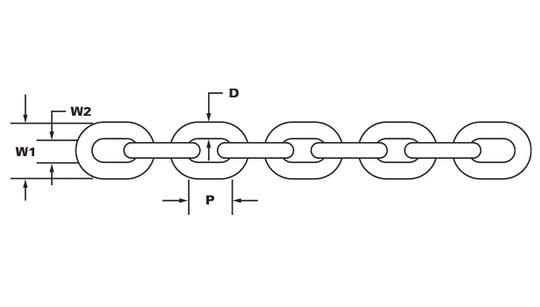

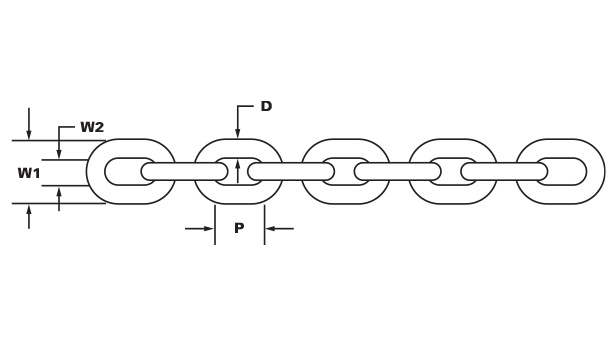

Link-Style Chain
View Link-Chain Options
Size Pitch
“P”Diameter
“D”Width
Outside
“W1”Width
Inside
“W2”Max Pull
Rating
(lbs./kg)Weight/Ft.
(lbs./kg)3/16″ 0.63″
15,88 mm0.19″
4,76 mm0.75″
19,05 mm0.31″
7,94 mm2,000 lbs.
907,2 kg.5 lbs.
0,7 kg1/4″ 0.81″
20,64 mm0.28″
7,14 mm1.00″
25,40 mm0.38″
9,53 mm3,000 lbs.
1360,8 kg.75 lbs.
1,1 kg3/8″ 1.19″
30,16 mm0.38″
9,53 mm1.44″
36,51 mm0.50″
12,70 mm6,000 lbs.
2721,6 kg1.5 lbs.
2,2 kg1/2″ 1.50″
38,10 mm0.50″
12,70 mm1.81″
46,04 mm0.69″
17,46 mm10,000 lbs.
4536,0 kg2.5 lbs.
3,7 kg5/8″ 1.88″
47,63 mm0.63″
15,88 mm2.25″
57,15 mm0.88″
22,23 mm15,000 lbs.
6804,0 kg4 lbs.
6,0 kg3/4″ 2.25″
57,15 mm0.75″
19,05 mm2.63″
66,68 mm1.00″
25,40 mm25,000 lbs.
11340,0 kg5.5 lbs.
8,2 kg7/8″ 2.50″
63,50 mm0.88″
22,23 mm3.13″
79,38 mm1.19″
30,16 mm30,000 lbs.
13608,0 kg7.5 lbs.
11,2 kg1″ 3.00″
76,20 mm1.00″
25,40 mm3.63″
92,08 mm1.38″
34,93 mm40,000 lbs.
18144,0 kg10.25 lbs.
15,3 kg1 1/4″ 3.75″
95,25 mm1.25″
31,75 mm4.50″
114,30 mm1.69″
42,86 m60,000 lbs.
27216,0 kg15.5 lbs.
23,1 kg

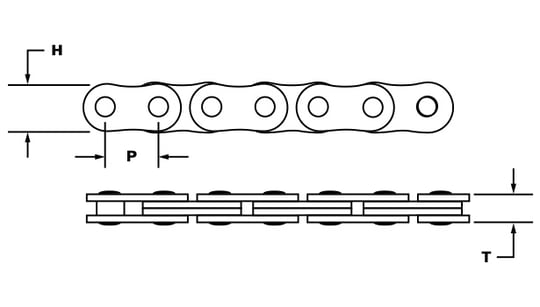

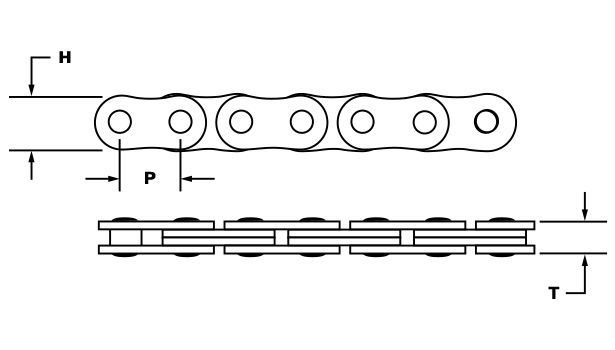

Leaf-Style Chain
View Leaf-Chain Options
Size Pitch
“P”Height
“H”Thickness
“T”Max Pull Rating
(lbs./kg)Weight
(lbs./kg)AL-522 0.63″
15,88 mm0.50″
12,70 mm0.38″
9,53 mm1,500 lbs.
680,4 kg.5 lbs.
0,7 kgBL-822 1.00″
25,40 mm0.94″
23,81 mm0.75″
19,05 mm5,000 lbs.
2268 kg1.5 lbs.
2,2 kgBL-1034 1.25″
31,75 mm1.13″
28,58 mm1.38″
34,93 mm10,000 lbs.
4536,0 kg4 lbs.
6,0 kgBL-1044 1.25″
31,75 mm1.13″
28,58 mm1.50″
38,10 mm13,600 lbs.
6168,85 kg5 lbs.
2,2 kgBL-1046 1.25″
31,75 mm1.13″
28,58 mm2.00″
50,80 mm13,600 lbs.
6168,85 kg6 lbs.
2,7 kgs

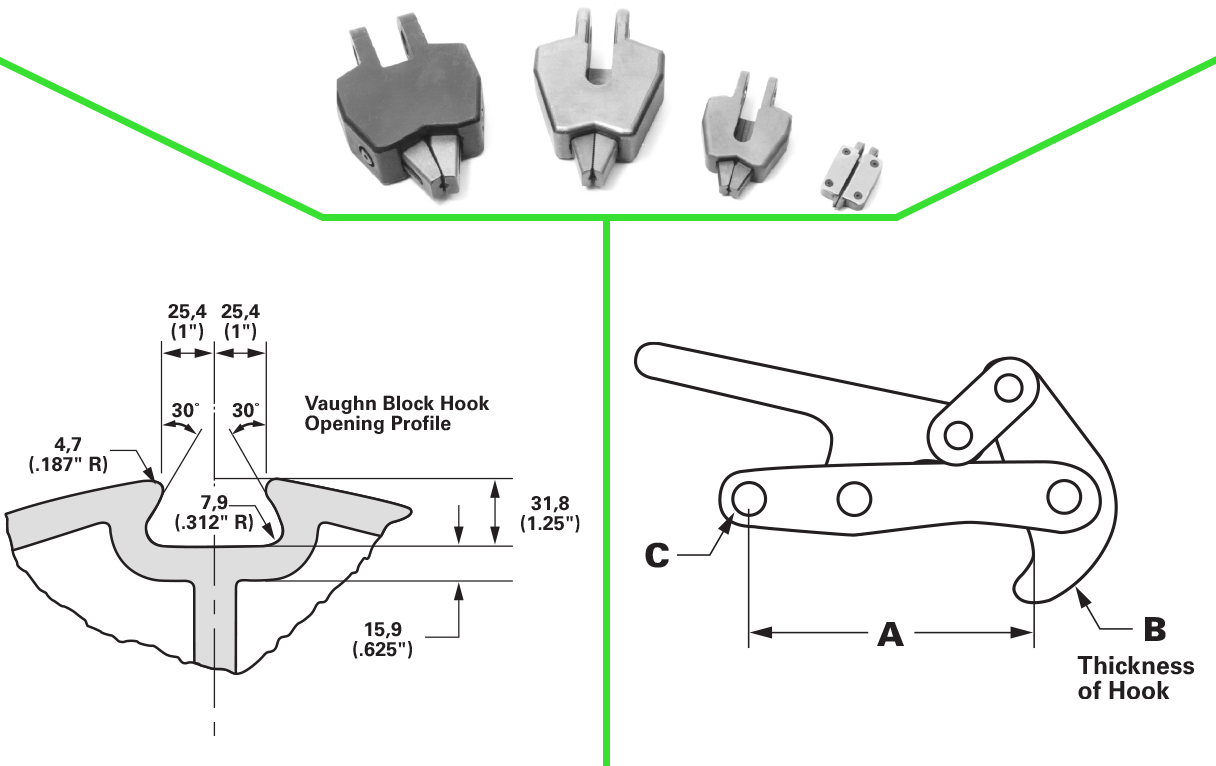

Hooks for Vaughn (V-Series) Wire Pullers
View Quick-Release Hook Options
Part
NumberHook Size Length
“A”Thickness
“B”Diameter
“C”Max Pull
Rating
(lbs./kg)Weight/Ft.
(lbs./kg)206991-00 Small 2.50″
63,50 mm0.38″
9,53 mm0.20″
5,16 mm1,000 lbs.
453,6 kg.5 lbs.
0,23 kg206990-00 Large 3.88″
98,43 mm0.50″
12,70 mm0.44″
11,11 mm8,000 lbs.
3628,8 kg1.25 lbs.

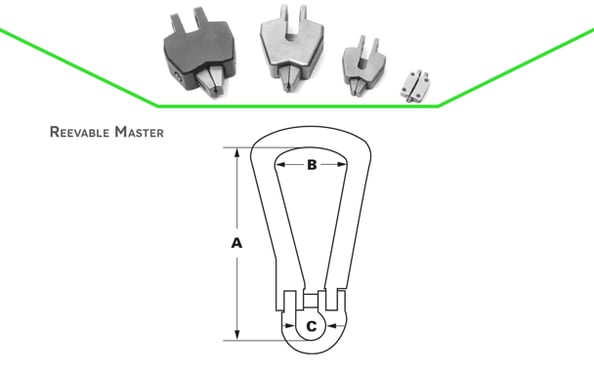

0,57 kgView Reevable Master Hook Options
Part
NumberLink
SizeLength
“A”Width
“B”Width
“C”Max Pull
Rating
(lbs./kg)Weight
(lbs./kg)227222-01 0.25″
6,35 mm5.00″
127,00 mm2.00″
50,80 mm0.56″
14,29 mm3,000 lbs.
1360,8 kg.5 lbs.
0,2 kg227222-02 0.38″
9,53 mm6.38″
161,93 mm2.63″
66,68 mm0.75″
19,05 mm6,000 lbs.
2721,6 kg1.25 lbs.
0,6 kg227222-03 0.50″
12,70 mm7.38″
187,33 mm2.88″
73,03 mm0.94″
23,81 mm10,000 lbs.
4536,0 kg2 lbs.
0,9 kg227222-04 0.63″
15,88 mm9.00″
228,60 mm3.25″
82,55 mm1.25″
31,75 mm15,000 lbs.
6804,0 kg3.5 lbs.
1,6 kg227222-05 0.75″
19,05 mm10.38″
263,53 mm4.13″
104,78 mm1.38″
34,93 mm25,000 lbs.
11340,0 kg5.75 lbs.

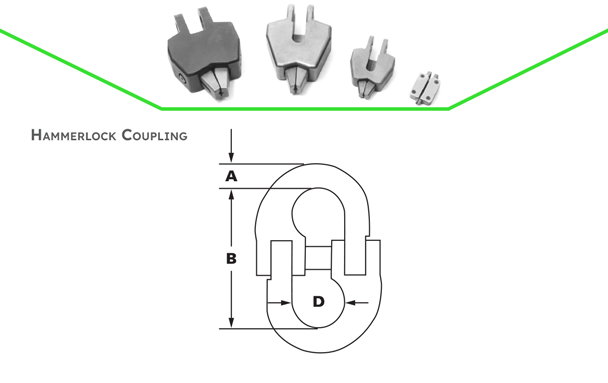

2,6 kgView Hammerlock Coupling Hook Options
Part
NumberLink
SizeDiameter
“A”Length
“B”Diameter
“D”Max Pull
Rating
(lbs./kg)Weight
(lbs./kg)227223-02 0.25″
6,35 mm0.31″
7,94 mm1.81″
46,04 mm0.50″
12,70 mm3,000 lbs.
1360,8 kg.25 lbs.
0,1 kg227223-03 0.38″
9,53 mm0.44″
11,11 mm2.81″
71,44 mm0.81″
20,64 mm6,000 lbs.
2721,6 kg.5 lbs.
0,2 kg227223-04 0.50″
12,70 mm0.63″
15,88 mm3.38″
85,73 mm1.25″
31,75 mm10,000 lbs.
4536,0 kg1.25 lbs.
0,6 kg227223-05 0.63″
15,88 mm0.75″
19,05 mm4.06″
103,19 mm1.50″
38,10 mm15,000 lbs.
6804,0 kg2.25 lbs.
1,0 kg227223-06 0.75″
19,05 mm0.88″
22,23 mm4.81″
122,24 mm1.81″
46,04 mm25,000 lbs.
11340,0 kg3.5 lbs.
1,6 kg227223-07 0.88″
22,23 mm1.00″
25,40 mm5.44″
138,11 mm2.13″
53,98 mm30,000 lbs.
13608,0 kg6 lbs.
2,7 kg227223-08 1.00″
25,40 mm1.25″
31,75 mm5.75″
146,05 mm2.19″
55,56 mm40,000 lbs.
18144,0 kg8.5 lbs.
3,9 kg227223-09 1.25″
31,75 mm1.50″
38,10 mmm7.19″
182,56 mm2.81″
71,44 mm60,000 lbs.
27216,0 kg15.5 lbs.

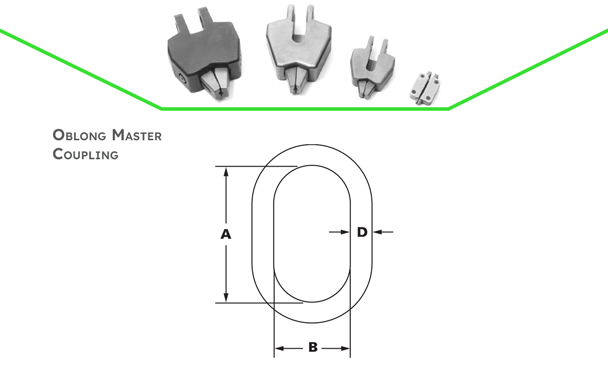

7,0 kgView Oblong Master Hook Options
Part
NumberLink
SizeDiameter
“A”Length
“B”Diameter
“D”Max Pull
Rating
(lbs./kg)Weight
(lbs./kg)119082-01 0.25″
6,35 mm1.50″
38,10 mm0.88″
22,23 mm0.38″
9,53 mm3,000 lbs.
1360,8 kg.25 lbs.
0,1 kg119082-02 0.38″
9,53 mm2.00″
50,80 mm1.25″
31,75 mm0.50″
12,70 mm6,000 lbs.
2721,6 kg5 lbs.
0,2 kg119082-03 0.50″
12,70 mm2.50″
63,50 mm1.50″
38,10 mm0.69″
17,46 mm10,000 lbs.
4536,0 kg1 lbs.
0,5 kg119082-04 0.63″
15,88 mm3.00″
76,20 mm1.75″
44,45 mm0.81″
20,64 mm15,000 lbs.
6804,0 kg1.5 lbs.
0,7 kg119082-05 0.75″
19,05 mm3.50″
88,90 mm2.00″
50,80 mm0.94″
23,81 mm25,000 lbs.
11340,0 kg2.5 lbs.
1,1 kg119082-06 0.88″
22,23 mm4.00″
101,60 mm2.25″
57,15 mm1.06″
26,99 mm30,000 lbs.
13608,0 kg3.25 lbs.
1,5 kg119082-07 1.00″
25,40 mm5.25″
133,35 mm3.00″
76,20 mm1.25″
31,75 mm40,000 lbs.
18144,0 kg6 lbs.
2,7 kg119082-08 1.25″
31,75 mm6.25″
158,75 mm3.50″
88,90 mm1.50″
38,10 mm60,000 lbs.
27216,0 kg9 lbs.
4,1 kg
Replacement Parts for V-Series Wire Puller Models
All of our pullers have standard replacement jaws and springs for easy maintenance and replacement. See all your options for Vaughn grips below.
Replacement Jaws
View Replacement JAWS for V-Series Wedge Grip Models
Part Number Jaw Model Fits Grip Head Sketch Dimensions (Inches)
Standard Diamond
Tooth Pattern
# (per inch)Custom Tooth
Patterns*
(TPI)**A B C D Ø E DIAMOND STRAIGHT 206061-01 117-136D 117-142A 0.25″
6,35 mm0.88″
22,23 mm0.25″
6,35 mmN/A N/A 25 16 N/A 206058-01 117-136D 117-138A 0.38″
9,53 mm1.38″
34,93 mm0.38″
9,53 mmN/A N/A 25 16 10, 16, 25 206060-01 117-136C 117-140A 0.63″
15,88 mm2.06″
52,39 mm0.50″
12,70 mm1.00″
25,40 mm0.31″
7,94 mm25 10, 16 25 206059-01 117-136B 117-142D 0.94″
23,81 mm3.63″
92,08 mm0.94″
23,81 mm1.56″
39,69 mm0.53″
13,49 mm16 10 10, 16 206062-01 117-136E 117-96A 0.94″
23,81 mm3.56″
90,49 mm0.94″
23,81 mm1.00″
25,40 mm0.63″
15,88 mm16 10 10,16 206640-01 117-226B 117-186C 0.94″
23,81 mm3.63″
92,08 mm0.94″
23,81 mm1.56″
39,69 mm0.63″
15,88 mm10 16 10 227150-00 117-208B 117-208A 1.25″
31,75 mm3.88″
98,43 mm1.25″
31,75 mm1.00″
25,40 mm0.63″
15,88 mm10 N/A 16 206728-02 117-192B 117-192A 1.25″
31,75 mm5.00″
127,00 mm1.25″
31,75 mm1.00″
25,40 mm0.88″
22,23 mm10 16 10, 16 206059-07 117-136B-S 117-142D-TR 0.94″
23,81 mm3.63″
92,08 mm0.94″
23,81 mm1.56″
39,69 mm0.53″
13,49 mm16 10 10, 16 227965-08 117-136E-S 117-96A-TR 0.94″
23,81 mm3.56″
90,49 mm0.94″
23,81 mm1.56″
39,69 mm0.63″
15,88 mm16 10 10, 16 *Other custom tooth patterns available upon request
**TPI=Teeth Per Inch
Springs
View Replacement Springs for V-Series Wedge Grip Models
Part No. Fits Grip Head Outside Diameter “D” Free Length “L” Replaces Vaughn No. 106103-29 117-142A 0.19″
4,76 mm0.88″
22,23 mm117-60E 106109-01 117-138A 0.34″
8,73 mm0.94″
23,81 mm117-34-5A-598 106109-03 117-140A 0.28″
7,14 mm2.25″
57,14 mm117-34-3A-415 106109-02 117-142D 0.50″
12,70 mm3.13″
79,38 mm117-34-3A-416 106109-05 117-96A 0.55″
13,89 mm3.13″
79,38 mm117-34-5A-646 106109-05 117-186C 0.55″
13,89 mm3.13″
79,38 mm117-34-5A-646 106109-05 117-208A 0.55″
13,89 mm3.13″
79,38 mm117-34-5A-646 106109-07 117-192A 0.81″
20,64 mm3.50″
88,90 mm117-34-10A-850
Download the Application Data Sheet
Complete the Application Data Sheet to engage our expert engineering team today and implement Sjogren quality straighteners into your production!
Want to See Other Puller Models?
Look into our other light duty models, or dive back into our main product page to find the right model for you!
Experience the Sjogren advantage—where simple ideas shape extraordinary solutions.
Head Back to the Main Product Page
Dive into our main product page and find the right model for your wire pulling needs.
Show Me All ProductsLight Duty Pullers
See the details of our non-thumb release model pullers for light-duty applications here!
Show Me Light Duty PullersSee some of our satisfied customers
V-Series Vaughn Puller FAQ
Learn more from frequently asked questions about our Vaughn-Style wire puller models from others like you!
What makes Sjogren’s Medium Duty Wire Pullers different from competitors?
Our pullers feature a lightweight one-piece casting and a thumb release for easy, one-handed operation — features that are rare in similar products. Additionally, we offer the fastest lead times in the industry, allowing you to stay on schedule in a pinch!
What is the recommended maintenance schedule for V-Series pullers and parts?
Recommended Product Maintenance Schedule
Jaw Type Material Frequency Vaughn Low Carbon 9 Months Medium Carbon 6 Months High Carbon 3 Months Non-Ferrous 12–18 Months Maintenance is essential to avoid unplanned downtime! See the above chart for recommendations. This is also dependent on how often these are being used. Heavy usage will impact how long the parts will last.
Contact us with your model number and wire specs for custom options. You can use the contact form at the bottom of this page or you can email our team directly at sales@sjogren.com.
Are replacement parts readily available?
Yes, we aim to stock all standard replacement parts, including jaws and springs for quick shipping and easy installation.
How does the thumb release mechanism improve safety and efficiency?
The ergonomic thumb release allows for quick, one-handed adjustments, making it easier and safer to load and unload wire, even with gloves on.
What do these models cost?
Our products are made of the highest quality materials, with precision engineering.
We do offer volume pricing on almost all of our products, so take this into consideration when requesting quotation!
It costs our manufacturing line less to produce 5 or more of a product than it does to produce 1 in one run, and we share these savings with you.
Are the pullers compatible with non-Vaughn-style blocks?
Although these are designed specifically for Vaughn-style blocks, they may be the right solution. We know every production is different, so its important to discuss with a specialist and possibly, one of our engineers, to ensure we are providing the best solutions for your production.
Contact us with the details of your capstan, production operation, and your wire specs for custom options. You can use the contact form at the bottom of this page or you can email our team directly at sales@sjogren.com.
Get Your Custom Puller Quote – Fast & Reliable Pricing and Delivery!
Tell us your puller head, pulling dog, assembly, chain, or parts needs, and our team will provide a tailored quote quickly. Get the best solution for precision wire straightening today!
