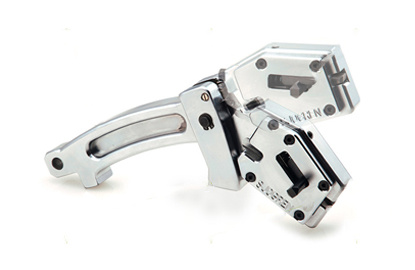

Sjogren Wire Puller | Sjogren Dog
Product Overview
The Sjogren Wire Puller (Sjogren Dog) is an innovative wire pulling solution engineered for enhanced safety and efficiency. Its one-handed operation reduces operator fatigue and allows for quick adjustments. Built to withstand demanding wire drawing environments, the Sjogren Dog is compatible with various puller assemblies and capstan diameters, delivering reliable, high-performance results.
Only available from Sjogren and our affiliates noted on our rep locator page!
Key Benefits
Explore the Sjogren Pulling Dog through our interactive model, showcasing its key benefits!
You can also skip right down to technical specifications which will provide you dimensions and options for recommended assemblies.
We also provide replacement parts below, too!
1 Ergonomic One-Handed Operation
2 Pivoting Head
3 Retractable Jaw Slide-Plate
4 Capstan-Ready Feet
5 Chromed Surface=Longevity
6 Dual-Sided Jaws
Why Choose this Sjogren Wire Puller?
1. Increased Efficiency
2. Extended Tool Life
3. Versatile Integration
4. Operator Safety and Comfort
Industries and Applications
The Sjogren Puller Dog is designed for industries where precision and consistent grip strength are essential for wire handling and processing:

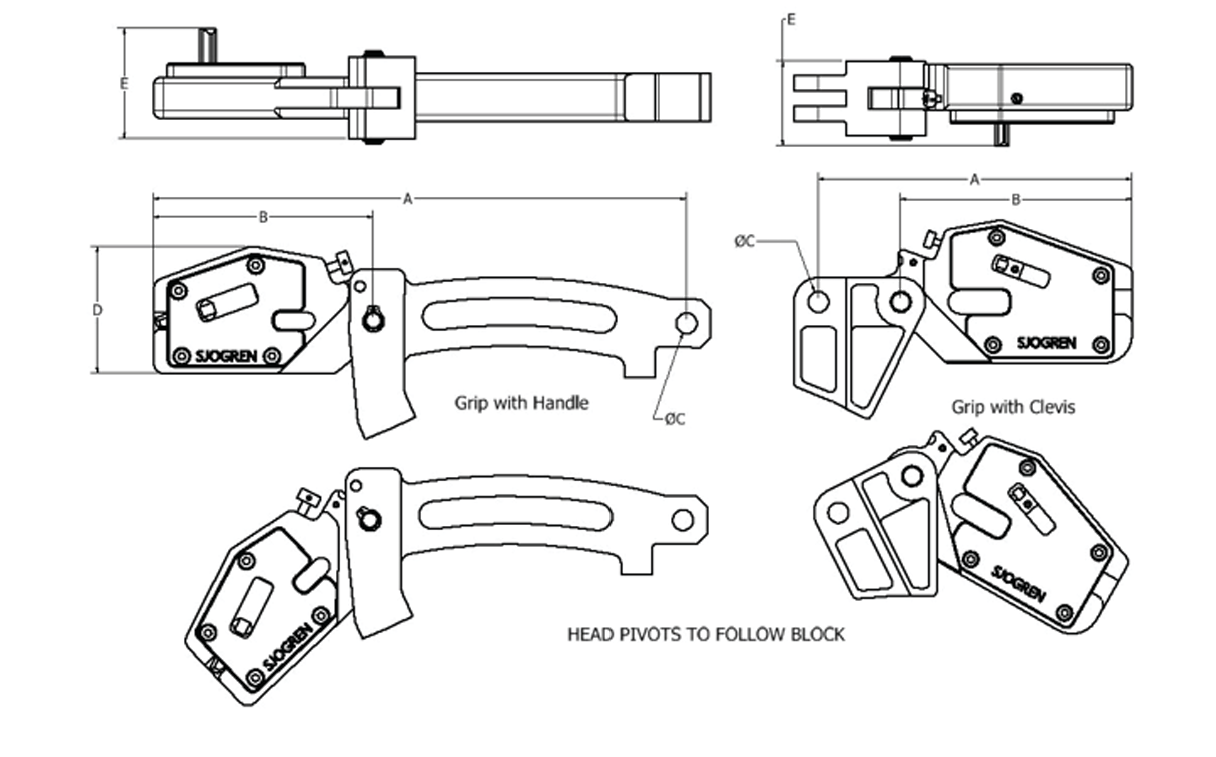

Product Measurements and Technical Specifications with Recommended Assemblies
Sjogren Wire Puller (SD) Specifications
View SD Sjogren Dog Technical Specifications
Part No. Description Max Pointed Size Min Wire Size A (in) B (in) C (in) D (in) DIA “E” (in) Max Pull (lbs./kg) Weight (lbs./kg) 448287-00 SD-6.35MM Grip w/ Handle – CCW .250″ (6,35 mm) .062″ (1,57 mm) 9.7″ (246 mm) 4.0″ (102 mm) .38″ (9,7 mm) 2.3″ (59 mm) 2.1″ (53 mm) 5,000 lbs. / 2,268 kg 4 lbs. / 1.77 kg 448287-01 SD-6.35MM Grip w/ Handle – CW .250″ (6,35 mm) .062″ (1,57 mm) 9.7″ (246 mm) 4.0″ (102 mm) .38″ (9,7 mm) 2.3″ (59 mm) 2.1″ (53 mm) 5,000 lbs. / 2,268 kg 4 lbs. / 1.77 kg 448287-02 SD-6.35MM Grip w/ Clevis – CCW .250″ (6,35 mm) .062″ (1,57 mm) 5.6″ (142 mm) 4.0″ (102 mm) .38″ (9,7 mm) 2.3″ (59 mm) 2.1″ (53 mm) 5,000 lbs. / 2,268 kg 3.3 lbs. / 1.5 kg 448287-05 SD-6.35MM Grip w/ Clevis – CW .250″ (6,35 mm) .062″ (1,57 mm) 5.6″ (142 mm) 4.0″ (102 mm) .38″ (9,7 mm) 2.3″ (59 mm) 2.1″ (53 mm) 5,000 lbs. / 2,268 kg 3.3 lbs. / 1.5 kg 448328-00 SD-12.7MM Grip w/ Handle – CCW .500″ (12,7 mm) .190″ (4,83 mm) 11.9″ (302 mm) 5.6″ (143 mm) .51″ (12,8 mm) 3.5″ (88 mm) 2.2″ (55 mm) 13,600 lbs. / 6,182 kg 8.1 lbs. / 3.68 kg 448328-01 SD-12.7MM Grip w/ Handle – CW .500″ (12,7 mm) .190″ (4,83 mm) 11.9″ (302 mm) 5.6″ (143 mm) .51″ (12,8 mm) 3.5″ (88 mm) 2.2″ (55 mm) 13,600 lbs. / 6,182 kg 8.1 lbs. / 3.68 kg 448328-04 SD-12.7MM Grip w/ Clevis – CCW .500″ (12,7 mm) .190″ (4,83 mm) 7.4″ (187 mm) 5.6″ (143 mm) .51″ (12,8 mm) 3.5″ (88 mm) 2.2″ (55 mm) 13,600 lbs. / 6,182 kg 7.23 lbs. / 3.29 kg 448328-05 SD-12.7MM Grip w/ Clevis – CW .500″ (12,7 mm) .190″ (4,83 mm) 7.4″ (187 mm) 5.6″ (143 mm) .51″ (12,8 mm) 3.5″ (88 mm) 2.2″ (55 mm) 13,600 lbs. / 6,182 kg 7.23 lbs. / 3.29 kg View Standard Recommended Assemblies
Part No. Description Assembly Extended Length 886551-24 SD 6.35MM – CCW includes Grip, Handle,
#80 Safety Chain, RC-1 Hook29.7″ / 754 mm 886551-25 SD 6.35MM – CW includes Grip, Handle,
#100 Safety Chain, RC-2 Hook44″ / 1118 mm 886574-06 SD 12.7MM – CCW includes Grip, Handle,
#140 Safety Chain, RC-2 Hook48.5″ / 1231 mm 886574-07 SD 12.7MM – CW includes Grip, Handle,
BL1044 Leaf Chain, RC-2 Hook49″ / 1245 mm
Replacement Parts for SD Model Pullers
View Replacement Parts

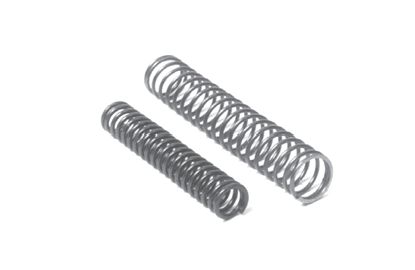

Springs

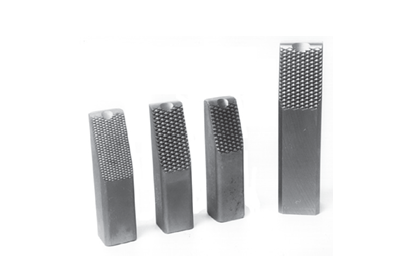

Part No. Fits Grip Head LC-026D-11M SD6.35 mm – Sliding Jaw LC-042G-09M SD12.7 mm – Sliding Jaw 106103-29 SD6.35 mm & SD12.7 mm – Fixed Jaw Jaws
Part No. Fits Grip Head 228424-00 SD6.35 mm 25 TPI S/C – 2 Required 228483-00 SD12.7 mm 25 TPI S/C – 2 Required
Download the Application Data Sheet
Complete the Application Data Sheet to engage our expert engineering team today and implement Sjogren quality straighteners into your production!
See some of our satisfied customers
Sjogren Puller FAQ
What is the recommended maintenance schedule for the Sjogren Dog?
Recommended Maintenance Schedule
Jaw Type Material Frequency SJOGREN DOG Low Carbon 9 Months Medium Carbon 6 Months High Carbon 3 Months Non-Ferrous 12–18 Months Maintenance is essential to avoid unplanned downtime! See the above chart for recommendations. This is al dependent on how often these are being used. Heavy usage will impact how long the parts will last.
Contact us with your model number and wire specs for custom options. You can use the contact form at the bottom of this page or you can email our team directly at sales@sjogren.com.
How does the ergonomic design benefit operators?
The one-handed thumb release allows operators to insert and adjust wire quickly, reducing strain and improving workflow efficiency.
How do I know which jaw size or model I need?
Check the technical specifications table for jaw size compatibility or contact our team for guidance based on your production setup.
Is the puller compatible with my existing capstan setup?
Yes, the Sjogren Puller Dog is designed to be compatible with a wide range of capstan sizes and puller assemblies, which most likely includes yours! Send us photos of your setup to sales@sjogren.com to confirm!
What do these models cost?
Our products are made of the highest quality materials, with precision engineering.
We do offer volume pricing on almost all of our products, so take this into consideration when requesting quotation!
It costs our manufacturing line less to produce 5 or more of a product than it does to produce 1 in one run, and we share these savings with you.
How does the quick-change jaw system improve productivity?
Fast jaw replacement reduces downtime, allowing for uninterrupted production runs.
