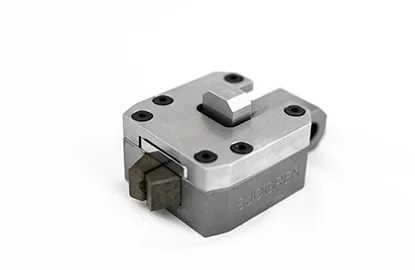

Thumb-Release Light Duty Puller
Product Overview
The Thumb Release Light Duty Puller is designed for faster, safer wire handling with simplified one-handed operation. Its ergonomic thumb release enhances safety and efficiency, while quick-release jaws allow for rapid wire changes. Compatible with Sleeper-Hartley style puller assemblies and replacement jaws, this puller supports greater spindle uptime and operational versatility. Only available from Sjogren and our affiliates noted on our rep locator page!
Key Benefits
Explore the innovative Sleeper & Hartley style light duty thumb-release puller through our interactive model, showcasing its essential benefits. Specifically crafted for S&H style pulling blocks, this puller exemplifies precision and reliability.
You can also skip right down to technical specifications which will provide you dimensions and options.
We also provide:
- standard recommended full puller assemblies
- accessories
- spare parts including jaws and springs!
1 Ergonomic Thumb Release
2 Quick-Change Jaws
3 High-Strength, Ergo Spring Assembly
4 Flexible Chain & Hook Options

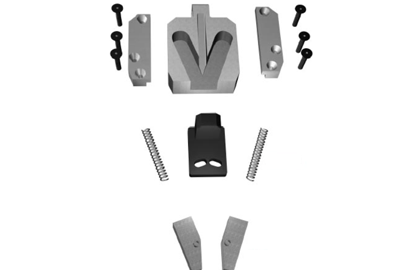

5 Maintenance-Friendly Design
Why Choose the Thumb-Release Light-Duty Wire Puller?
1. One-Handed Operation
2. Quick Replacement Jaws
3. Lightweight & Durable Design
4. Versatile Compatibility
Industries and Applications
The Thumb Release Light Duty Puller serves industries requiring precision and adaptability in wire handling processes. Key industries include:
Product Measurements and Technical Specifications

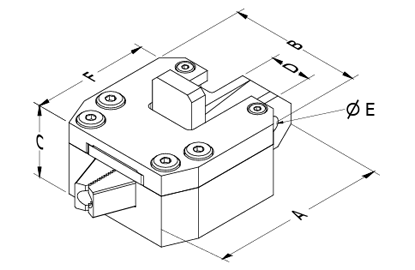

Thumb Release Puller Specifications
View Thumb Release Puller Models and Tech Specs
Part No. Grip Head Model Max. Pointed Size Min. Wire Size Max. Pull (lbs./kgs) A B C D DIA “E” F Weight (lbs./Kgs) 338393-00 SH #1 TR .156″
(4,0 mm).0625″
(1,6 mm)2,000 lbs.
(907,2 kg)2.5″
(63,50 mm)1.75″
(44,45 mm).87″
(22,10 mm).40″
(10,16 mm).219″
(5,56 mm)1.94″
(49,21 mm).75 lbs.
(0,3 kg)338550-00 SH #2 TR .203″
(5,2 mm).125″
(3,2 mm)3,000 lbs.
(1.360,8 kg)2.75″
(69,85 mm)2.00″
(50,80 mm)1.13″
(28,70 mm).50″
(12,70 mm).219″
(5,56 mm)2.12″
(53,85 mm)1.25 lbs.
(0,6 kg)339046-00 SH #2A TR .217″
(5,5 mm).028″
(0.7 mm)3,000 lbs.
(1.360,8 kg)3.00″
(76,20 mm)2.00″
(50,80 mm)1.13″
(28,70 mm).88″
(22,23 mm).32″
(8,20 mm)2.12″
(53,85 mm)1.5 lbs.
(0,68 kg)338322-00 SH #3 TR .375″
(9,5 mm).091″
(2,3 mm)7,500 lbs.
(3402 kg)3.38″
(85,85 mm)2.38″
(60,45 mm)1.26″
(32,00 mm).84″
(21,34 mm).33″
(8,33 mm)2.50″
(63,50 mm)1.75 lbs.
(0,8 kg)338548-00 SH #4 TR .5″
(12,7 mm).25″
(6,4 mm)10,000 lbs.
(4536 kg)4.50″
(114,30 mm)3.25″
(82,55 mm)1.75″
(44,45 mm)1″
(25,40 mm).39″
(9,93 mm)3.25″
(82,55 mm)4.75 lbs.
(2,15 kg)339060-00 SH #5 TR .75″
(19,1 mm).3125″
(7,9 mm)13,000 lbs.
(5897 kg)6.30″
(160,02 mm)4.50″
(114,30 mm)1.90″
(48,26 mm)1.49″
(37,85 mm).58″
(14,68 mm)4.65″
(118,11 mm)10 lbs.
(4,53 kg)339083-00 SH #6 TR .875″
(22,2 mm).375″
(9,5 mm)25,000 lbs.
(11340 kg)6.85″
(174,00 mm)5″
(127,00 mm)1.90″
(48,36 mm)1.47″
(37,31 mm).70″
(17,86 mm)4.41″
(112,08 mm)11.1 lbs.
(5,03 kg)

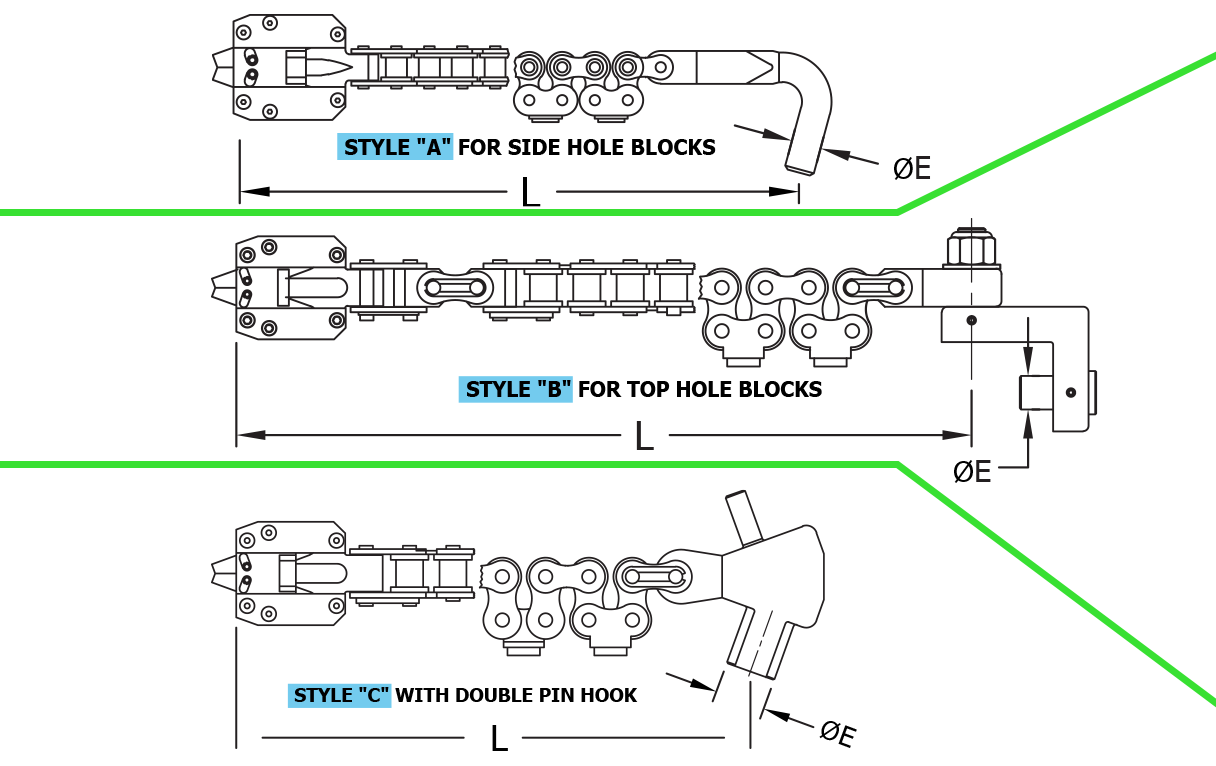

SH-TR Grip Standard Assemblies
View SH-TR Standard Assembly Options
Assembly No. Grip Head Model Max. Pointed Size Min. Wire Size Max. Pull (lbs./kg) Assembly Style Chain Size Hook Pin Diameter “∅E” Extended Length “L” Collapsed Length “L” Weight (lbs./kg) 338393-04 SH#1-TR .162″
4,1 mm.062″
1,57 mm1,400 lbs.
636 kgA #50 Safety .438″
11,1 mm19.79″
503 mm12.29″
312,2 mm2.2 lbs.
1 kg338393-19 SH#1-TR .162″
4,1 mm.062″
1,57 mm1,400 lbs.
636 kgA #50 Safety 1.165″
29,5 mm23.85″
605,7 mm16.35″
415,2 mm4.4 lbs.
2 kg338393-31 SH#1-TR .162″
4,1 mm.062″
1,57 mm1,400 lbs.
636 kgA #50 Safety .625″
15,9 mm22.85″
580,3 mm15.35″
389,8 mm3.0 lbs.
1.4 kg338550-01 SH#2-TR .207″
5,3 mm.125″
3,18 mm1,500 lbs.
(682 kgA #50 Safety .56″
14,2 mm20.72″
526,3 mm13.22″
335,8 mm3.0 lbs.
1.4 kg338550-07 SH#2-TR .207″
5,3 mm.125″
3,18 mm1,500 lbs.
682 kgA #80 Safety 1.165″
29,5 mm26.96″
684,8 mm18.96″
481,6 mm7.3 lbs.
3.3 kg339046-01 SH#2A-TR .217″
5,5 mm.028″
0,7 mm3,000 lbs.
1364 kgC #80 Safety 1.165″ & .472″
29,5 & 12 mm21.0″
533 mm13.0″
330 mm6.5 lbs.
3 kg338322-04 SH#3-TR .375″
9,5 mm.093″
2,36 mm3,000 lbs.
1364 kgA #80 Safety .625″
5,9 mm23.12″
587,2 mm15.12″
384 mm5.5 lbs.
2.5 kg338322-27 SH#3-TR .375″M
9,5 mm.093″
2,36 mm5,000 lbs.
2268 kgA #100 Safety 1.165″
29,5 mm39.56″
1004,9 mm24.56″
623,9 mm11 lbs.
5 kg886555-09 SH#3-TR .375″
9,5 mm.093″
2,36 mm3,000 lbs.
1364 kgB #80 Safety .768″
19,5 mm28.81″
731,8 mm18.81″
447,8 mm8.5 lbs.
3.9 kg886555-10 SH#3-TR .375″
9,5 mm.093″
2,36 mm5,000 lbs.
2268 kgB #100 Safety .768″
19,5 mm1052,5 mm 26.94″
671,5 mm13 lbs.
5.9 kg338322-45 SH#3-TR .375″
9,5 mm.093″
2,36 mm3,000 lbs.
1364 kgA #80 Safety 1.165″
29,5 mm31.77″
806,9 mm19.77″
502,1 mm7.4 lbs.
3,4 kg338322-67 SH#3-TR .375″
9,5 mm.093″
2,36 mm3,000 lbs.
1364 kgC #80 Safety 1.165″ & .472″
29,5 mm & 12 mm21.73″
552 mm13.73″
349 mm6.8 lbs.
3,1 kg338548-01 SH#4-TR .500″
12,7 mm.250″
6,35 mm5,000 lbs.
2268 kgA #100 Safety .880″
22,35 mm38.94″
989 mm29.94″
608 mm12.3 lbs.
5,6 kg338548-12 SH#4-TR .500″
12,7 mm.250″
6,35 mm5,000 lbs.
2268 kgA #100 Safety 1.165″
29,5 mm38.94″
989 mm23.94″
608 mm13 lbs.
5.9 kg338548-07 SH#4-TR .500″
12,7 mm.250″
6,35 mm5,000 lbs.
2268 kgC #100 Safety 1.165″ & .472″
29,35 mm & 12 mm36.91″
938 mm21.91″
557 mm13 lbs.
5,9 kg

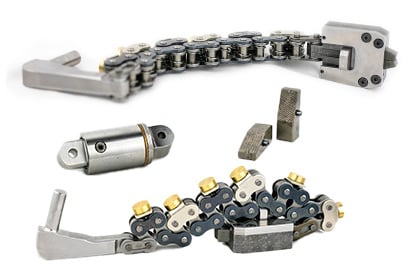

Chains/Hooks for SH-TR Model Pullers
Chains for SH-TR Pullers
View Safety Chain Options
Part No. Chain Size Max Die Pull (lbs. / kg) Pitch Length “A” Standard Length
(Extended) “B”Standard Length
(Collapsed) “C”447747-01 50 1,500 lbs.
681,8 kg.625″
15,87 mm15.62″
396,75 mm8.12″
206,25 mm447614-041 80 3,000 lbs.
1363,6 kg1.00″
25,4 mm17.00″
431,80 mm9.00″
228,60 mm447713-02 100 5,000 lbs
2272,7 kg1.25″
31,75 mm31.25″
539,75 mm16.25″
412,75 mm448355-01 140 10,000 lbs
4536,0 kg1.75″
44,45 mm33.25″
844,55 mm19.25″
488,95 mm*Standard length chain includes a master link for each end for connection to wedge grip and hook. Longer chain lengths available by adding spring sections.

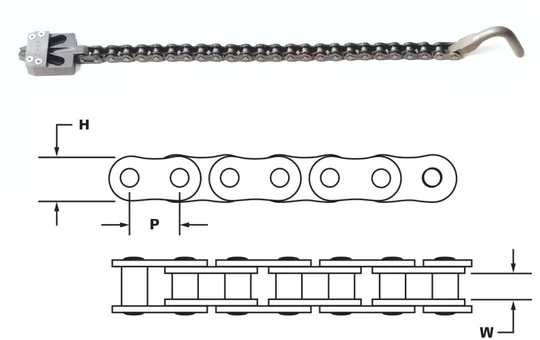

View Roller Chain Options
Size
Pitch
“P”Height
“H”Width
“W”Max Pull Rating
(lbs./kg)Weight
(lbs./kg)520 0.63″
15,88 mm0.56″
14,29 mm0.25″
6,35 mm1,000 lbs.
453,6 kg0.5 lbs.
0,7 kg50
0.63″
15,88 mm0.56″
14,29 mm0.38″
9,53 mm1,500 lbs.
680,4 kg.75 lbs.
1,1 kg80 1.00″
25,40 mm0.94″
23,81 mm0.63″
15,88 mm3,000 lbs.
1360,8 kg1.5 lbs.
2,2 kg100 1.25″
31,75 mm1.13″
28,58 mm0.75″
19,05 mm5,000 lbs.
2268 kg2.5 lbs.
3,7 kg140 1.75″
44,45 mm1.63″
41,28 mm1.00″
25,40 mm10,000 lbs.
4536 kg4.75 lbs.
2,15 kg160 2.00″
50,80 mm2.00″
50,80 mm1.25″
31,75 mm13,000 lbs.
5896,8 kg6.25 lbs.
2,83 kg
Hooks for SH-TR Pullers
View Top Hole Hook Options
Part
NumberAdapter Chain Size Pull Rating A B C Hole ∅ in Block 228422-01 119639-01 80 & 100 3000 / 5000 lbs.
1361 / 2268 kgs1.17″
29.6 mm.77″
19.6 mm.768″
19.5 mm.787″
20 mm228422-03 119639-01 80 & 100 3000 / 5000 lbs
1361 / 2268 kgs1.05″
26.6 mm.87″
22.1 mm.730″
18.5 mm.747″
19 mmView Swivel Hook Options
Part Number Length “B” Range ∅ Hook “A” Range 338986-xx
0.6-1.4”
15-35,5 mm0.39-1.18″
10,0-30,0 mmView Available S&H-TR Hooks
Part No. Hook Size Length
“A”Length
“B”Diameter
“C”Pin Diameter
“D”Thickness
“E”Max Pull Rating
(lbs./kg)Weight
(lbs./kg)107262-00 #1 1.94″
49,21 mm1.88″
47,63 mm0.44″
11,11 mm0.22″
5,56 mm0.38″
9,53 mm3,000 lbs.
1360,8 kg.25 lbs.
0,11 kg107264-00 #2 2.63″
66,68 mm2.00″
50,80 mm0.56″
14,29 mm0.22″
5,56 mm0.50″
12,70 mm5,000 lbs.
2268 kg.5 lbs.
0,23 kg206152-00 #3 3.25″
82,55 mm2.25″
57,15 mm0.63″
15,88 mm0.33″
8,33 mm0.75″
19,05 mm8,000 lbs.
3628,8 kg.75 lbs.
0,34 kg204258-00 #4 3.75″
95,25 mm3.13″
79,38 mm0.88″
22,23 mm0.39″
9,92 mm1.00″
25,40 mm15,000 lbs.
6804 kg1.5 lbs.
0,68 kg204258-23 #4 3.75″
95,25 mm3.13″
79,38 mm1.16″
29,5 mm0.39″
9,92 mm1.00″
25,40 mm15,000 lbs.
6804 kg2 lbs.
0,91 kg204258-35 #4 3.75″
95,25 mm3.13″
79,38 mm0.77″
19,5 mm0.39″
9,92 mm1.00″
25,40 mm15,000 lbs.
6804 kg1.75 lbs.
0,79 kgView RC (Roller Chain) Hook Options
Body Style Part Number ∅ Hook
“A” RangeLength
“B” RangeMax Pull Rating
(lbs./kg)Weight
lbs./kg)Type 1 228565-xx .315″ -.77″
8 mm-19,5 mm1.38″ -1″
35 mm-25 mm3,300 lbs.
1497 kg.56 lbs.
0,3 kgType 2 339052-xx 1.160″ -0.768″
29,5 mm-19,5 mm1″ -1.91″
25 mm-48,5 mm10,000 lbs
4535 kg2.2 lbs
1 kg
Replacement Parts for SH Model Pullers
View Replacement JAWS for SH-TR Puller Models
View Replacement JAWS for SH-TR Puller Models
Set Part No. Model A B C D Ø E Teeth per Inch (Diamond) 886233-00 SH #1 TR 0.44″ (11,11 mm) 1.19″ (30,16 mm) 0.44″ (11,11 mm) 0.38″ (9,53 mm) 0.27″ (6,75 mm) 25 886234-00 SH #2 TR 0.50″ (12,70 mm) 1.31″ (33,34 mm) 0.50″ (12,70 mm) 0.38″ (9,53 mm) 0.27″ (6,75 mm) 16 886235-00 SH #3 TR 0.56″ (14,29 mm) 1.50″ (38,10 mm) 0.56″ (14,29 mm) 0.50″ (12,70 mm) 0.31″ (7,94 mm) 16 886236-00 SH #4 TR 0.75″ (19,05 mm) 2.00″ (50,80 mm) 0.63″ (15,88 mm) 0.50″ (12,70 mm) 0.44″ (11,11 mm) 16 Replacement Springs for SH-TR Puller Models

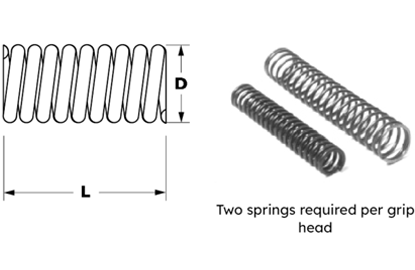

S&H-TR Part No. Model “D” “L” Wire Diameter “D” LC-026C-12M SH #1 TR 0.23″ (5,95 mm) 1.50″ (38,10 mm) 0.03″ (0,79 mm) 106110-01 SH #2 TR 0.25″ (6,35 mm) 1.50″ (38,10 mm) 0.03″ (0,79 mm) 106110-05 SH #3 TR 0.30″ (7,54 mm) 2.00″ (50,80 mm) 0.03″ (0,79 mm) 106103-43 SH #4 TR 0.42″ (10,72 mm) 2.50″ (63,50 mm) 0.05″ (1,19 mm)
Download the Application Data Sheet
Complete the Application Data Sheet to engage our expert engineering team today and implement Sjogren quality straighteners into your production!
Want to See Other Puller Models?
Look into our other light duty models, or dive back into our main product page to find the right model for you!
Experience the Sjogren advantage—where simple ideas shape extraordinary solutions.
Head Back to the Main Product Page
Light Duty Pullers
See some of our satisfied customers
SH-TR FAQ
What is the difference between a regular SH puller and the Thumb-Release models?
The Thumb release model allows easy one-handed management to grip a wire and to release it. See this video for a visual representation!
What is the recommended maintenance schedule for SH pullers and parts?
Recommended Product Maintenance Schedule
Maintenance is essential to avoid unplanned downtime! See the above chart for recommendations. This is also dependent on how often these are being used. Heavy usage will impact how long the parts will last.Contact us with your model number and wire specs for custom options. You can use the contact form at the bottom of this page or you can email our team directly at sales@sjogren.com.
What wire sizes can the Thumb Release Puller handle?
It handles wire sizes ranging from 0.156″ (3.96 mm) to 0.937″ (23.8 mm), with a maximum pull capacity of 13,600 lbs (6,169 kg) depending on the model.
How does the thumb release mechanism improve safety and efficiency?
The ergonomic thumb release allows for quick, one-handed adjustments, making it easier and safer to load and unload wire, even with gloves on.
What do these models cost?
Our products are made of the highest quality materials, with precision engineering.
We do offer volume pricing on almost all of our products, so take this into consideration when requesting quotation!
It costs our manufacturing line less to produce 5 or more of a product than it does to produce 1 in one run, and we share these savings with you.
Can I switch out the jaws quickly during operation?
Yes, the quick-change jaw design allows for rapid replacements without tools, reducing downtime and improving efficiency.
