NL | Narrow Line Straightener

Precision Straightening for High-Tension, Multi-Wire Applications

Product Overview

The Narrow Line Wire Straightener is engineered for precision straightening in compact production environments. Ideal for high-strength cable manufacturing and multi-wire processing, it ensures consistent alignment under high-tension loads.

With left and right-hand models, quick-release levers for rapid changeover, and precision-machined grooved rolls, the Narrow Line Series is built for efficiency and long-term performance in demanding applications. The Narrow Line Straightener is ideal for strand galvanizing or annealing, weaving, or mesh applications. A secondary use is in the oil and gas industries for control line straightening.

Play with our interactive model here and find some of the NL straighteners key benefits.

Grab your quote now or jump down to tech specs to find your ideal model

Get your Quote Today!

Key Benefits

1 Compact Footprint

Provides superior stability and alignment compared to cold-rolled assemblies.

2 Quick-Release Levers

Fast roll changeover minimizes downtime and increases output.

3 Precision Grooved Rolls

Custom groove profiles ensure consistent wire alignment and tension.

4 Left and Right-Hand Models

Simplifies integration into multi-line production setups.

5 High Load Capacity

Engineered for consistent performance under continuous high-tension loads.

Why Choose Sjogren's Narrow Line Straighteners?

The The Narrow Line Series is ideal for precision straightening in high-tension, multi-wire applications where space is limited. It may not be suitable for extremely large-diameter or flexible wire.

1. Space-Saving Design

Fits into tight production lines without performance loss

2. Fast Adjustments

Quick-release mechanism minimizes downtime

3. Adaptable Groove Profiles

Handles various wire shapes with precision

4. High-Tension Performance

Consistent alignment under heavy loads

Industries and Applications

The IS Wire Straightener delivers precise inch-based wire processing, making it perfect for consistent, medium-to-high volume tasks. However, it may not be the best choice for ultra-flexible or large-diameter wires.

Wire & Cable Manufacturing
Compact design allows installation in tight production lines
High-Strength Cable Production
Maintains alignment under continuous high load
Automotive Manufacturing
Supports high-accuracy wire processing for critical components
Medical Manufacturing
Precision straightening for surgical and specialty wires
Wire and Mesh Weaving
Ideal for multi-wire processing in weaving systems
Oil and Gas Industries
Aids in control line straightening for drilling rigs, ensuring smooth cabling down the pipe
Wire & Cable Manufacturing
Compact design allows installation in tight production lines
High-Strength Cable Production
Maintains alignment under continuous high load
Automotive Manufacturing
Supports high-accuracy wire processing for critical components
Medical Manufacturing
Precision straightening for surgical and specialty wires
Wire and Mesh Weaving
Ideal for multi-wire processing in weaving systems
Oil and Gas Industries
Aids in control line straightening for drilling rigs, ensuring smooth cabling down the pipe

Product Measurements and Technical Specifications

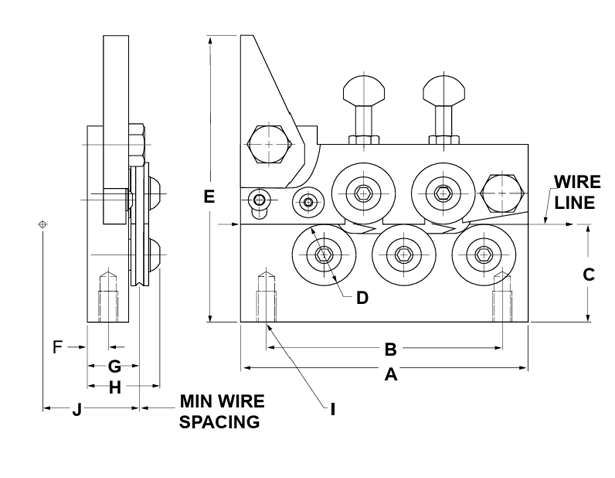

Measurements

Model NL 507 U NL 507 NL 507-7 NL 245 NL 245M NL 245-7
A 143 mm 143 mm 183 mm 236 mm 236 mm 290 mm
B 117,5 mm 117,5 mm 157 mm 204 mm 153 mm 258 mm
C 51 mm 51 mm 51 mm 70 mm 70 mm 70 mm
D DIA. 32 mm 32 mm 32 mm 47 mm 47 mm 47 mm
E 149 mm 149 mm 149 mm 266 mm 257 mm 266 mm
F 10 mm 11 mm 11 mm 13 mm 9,1 mm 13 mm
G 26 mm 33 mm 33 mm 33,3 mm 26 mm 33,3 mm
H 36 mm 48 mm 48 mm 52 mm 43,3 mm 52 mm
I .38" -
16THD
.38" -
16THD
.38" -
16THD
.50" -
13THD
M 12 .50" -
13THD
J 28,5 mm 35,5 mm 36,5 mm 38 mm 30 mm 36,5 mm

Technical Specifications

Part # Model Straightener Rolls Diameter D Wire Diameter Range Number of Straightener Rolls Below Number of Adjustable Straightener Rolls Above Minimum Wire Spacing
338532-00 NL 507U 32 mm 1.5 – 3.0 mm 3 2 28.5 mm
338503-00 NL 507 32 mm 1.5 – 3.0 mm 3 2 36.5 mm
447809-00 NL 245 47 mm 3.0 – 6.0 mm 3 2 38 mm
448214-00 NL 245M 47 mm 2.0 – 6.3 mm 3 2 30 mm
338503-01 NL 507-7 32 mm 1.5 – 3.0 mm 4 3 36.5 mm
447809-03 NL 245-7 47 mm 3.0 – 6.0 mm 4 3 38 mm

Download the Application Data Sheet

Complete the Application Data Sheet to engage our expert engineering team today and implement Sjogren quality NL Straighteners into your production!

Tell Us Your Specs - Get Your Solution!

See some of our satisfied customers

NL Straightener FAQ

Learn more from frequently asked questions about our Narrow Line Series straighteners from others like you!

Get Your Custom NL straightener Quote – Fast & Reliable Pricing and Delivery!

Tell us your wire processing needs, and our team will provide a tailored quote quickly. Get the best solution for precision wire straightening today!
