PB Series Pivot Bar Wire Straighteners

Innovative Pivot Bar Design for Quick Setup, Versatile Mounting, and Reliable Performance

Product Overview

The Pivot Bar Wire Straightener offers a modular and innovative solution for wire straightening needs. Designed to maximize efficiency, this straightener model minimizes space requirements and setup time, eliminating the necessity for complex and costly mounting base plates. Equipped with precision-grooved rolls, the PB Series ensures optimal performance for wire diameters ranging from 0.8 mm to 15 mm.

Play with our interactive model here and find some of the PB straighteners key benefits.

Grab your quote now or jump to tech specs further down the page to find your ideal model

Get your PB Quote Today!

Key Benefits

1 Quick-Release Lever with Locking Handle

Allows for easy opening without affecting roll adjustments, facilitating swift wire changeovers and minimizing downtime.

2 Modular Design

Standardized straightener units can be positioned in vertical or horizontal orientations on a common base plate or flat machine mounting surface, providing adaptability to various machine configurations and production processes.

3 Versatile Configuration

Available with 5, 7, 9, 11, or 13 straightener rolls, the PB series accommodates wire diameters ranging from 0.08 mm to 15 mm, ensuring optimal straightening precision across various applications.

4 Precision Grooved Rolls

Standard rolls feature V-grooves with precision ball bearings for various wire sizes and greased for extended life. Optional groove profiles are available upon request to meet specific processing needs. Sjogren precision delivers unmatched quality in virtually any-shaped groove.

5 Compact and Lightweight

The design yields lower weight and is compact, saving valuable space on the production floor.

6 Digital Precision (Optional Feature)

Optional digital readout or micrometer heads for enhanced precision and repeatability.

Why Choose the Pivot Bar Straightener?

The PB Series Pivot Bar Wire Straightener is designed for quick and precise wire straightening with minimal setup time.

1. Superior Build Quality

Precision-ground components ensure maximum accuracy and longevity..

2. Reduced Downtime

Quick-release mechanisms and tool-less adjustments streamline operations.

3. Customization Options

Various roll configurations and materials to match your production needs.

4. Proven Industry Performance

Trusted by manufacturers worldwide for consistent and reliable results.

Industries and Applications

The PB Series Pivot Bar Wire Straightener is trusted across multiple industries where precise wire straightening is critical, including but not limited to:

Aerospace & Automotive: Delivers exacting straightness for precision applications.
Spring & Fastener Production: Reduces stress and defects in formed wire parts.
Aerospace & Automotive: Delivers exacting straightness for precision applications.
Medical & Fine Wire Processing: Supports high-tolerance requirements for specialty wires.
Aerospace & Automotive: Delivers exacting straightness for precision applications.
Spring & Fastener Production: Reduces stress and defects in formed wire parts.
Aerospace & Automotive: Delivers exacting straightness for precision applications.
Medical & Fine Wire Processing: Supports high-tolerance requirements for specialty wires.

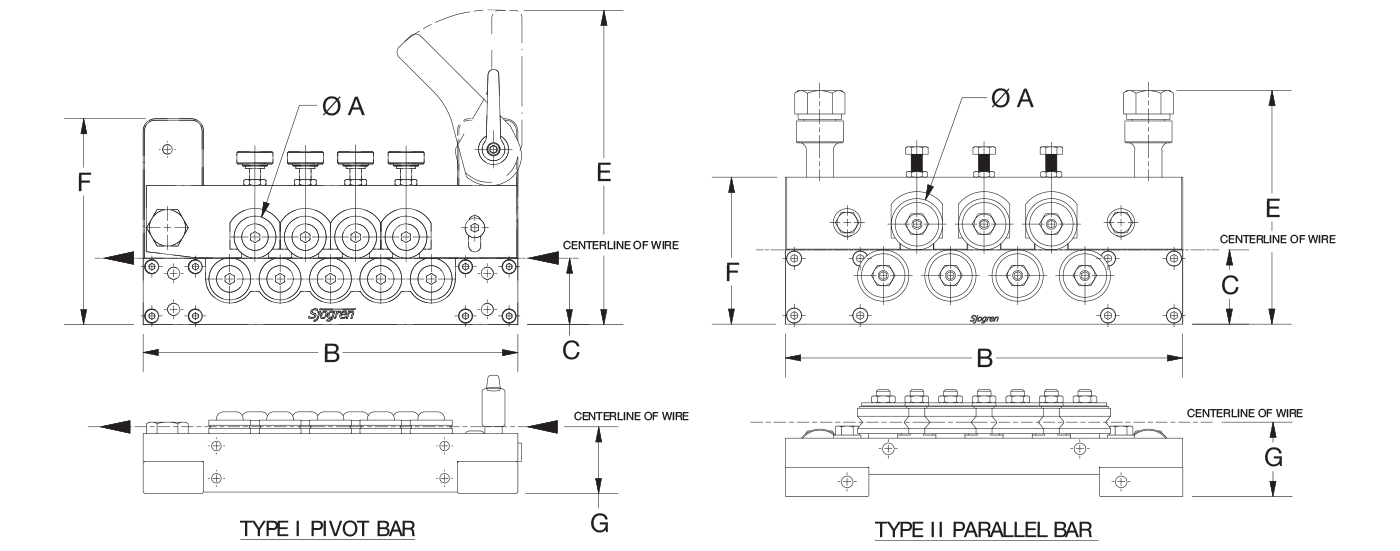

Product Configurations and Technical Specifications

MODEL TYPE WIRE DIA. RANGE
(mm)		 DIAMETER "A" C E F G "B" 5 ROLL "B" 7 ROLL "B" 9 ROLL "B" 11 ROLL "B" 13 ROLL
PB-10 I 0,08 - 0,4 10 mm 28 mm 136 mm 74 mm 28 mm 100 mm 113 mm 126 mm 139 mm 152 mm
PB-13 I 0,2 - 0,5 13 mm 30 mm 142 mm 79 mm 30 mm 107 mm 123 mm 139 mm 155 mm 171 mm
PB-16 I 0,4 - 0,8 16 mm 32 mm 156 mm 99 mm 32 mm 126 mm 146 mm 166 mm 186 mm 206 mm
PB-22 I 0,8 - 1,5 22 mm 35 mm 165 mm 108 mm 35 mm 144 mm 171 mm 197 mm 224 mm 250 mm
PB-23 I 1,0 - 2,0 23 mm 35 mm 165 mm 108 mm 35 mm 140 mm 167 mm 195 mm 223 mm 250 mm
PB-26 I 1,0 - 2,5 26 mm 37 mm 193 mm 110 mm 37 mm 152 mm 183 mm 214 mm 245 mm 276 mm
PB-30 I 1,5 - 3,0 30 mm 38 mm 200 mm 118 mm 38 mm 166 mm 202 mm 238 mm 274 mm 310 mm
PB-31 I 1,8 - 3,5 31 mm 38 mm 200 mm 118 mm 38 mm 170 mm 207 mm 244 mm 281 mm 318 mm
PB-32 I 2,0 - 4,0 32 mm 38 mm 200 mm 118 mm 38 mm 172 mm 210 mm 2487 mm 286 mm 324 mm
PB-35 I 2,5 - 4,5 35 mm 50 mm 255 mm 153 mm 50 mm 202 mm 245 mm 288 mm 331 mm 374 mm
PB-40 I 3,0-5,0 40 mm 53 mm 258 mm 153 mm 53 mm 220 mm 270 mm 320 mm 370 mm 420 mm
PB-45 II 5,0-7,0 45 mm 65 mm 204 mm 129 mm 65 mm 289 mm 348 mm 407 mm 466 mm NA
PB-47 II 4,0-8,0 47 mm 65 mm 204 mm 129 mm 65 mm 289 mm 348 mm 407 mm 466 mm NA
PB-52 II 7,0-9,0 52 mm 70 mm 209 mm 134 mm 70 mm 324 mm 391 mm 458 mm 525 mm NA
PB-80 II 8,0-15,0 80 mm 90 mm 225 mm 173 mm 90 mm 39 mm 486 mm 576 mm NA NA
**PB straighteners will need a baseplate added if purchasing a two-plane. Keep this in mind for costing purposes. PB-40 is .5" thick by 5" wide, for example.

Download the Application Data Sheet

Complete the Application Data Sheet to engage our expert engineering team today and implement Sjogren quality PB Straighteners into your production!

Tell Us Your Specs - Get Your Solution!
