IS | Inch Series Wire Straightener
Product Overview
Engineered for inch-based wire processing, the IS Wire Straightener offers unmatched precision, robust durability, and adaptable configurability to cater to a wide range of manufacturing requirements.
Designed for high-accuracy straightening, this unit guarantees superior wire alignment and consistency. Is this the straightener you need?
Play with our interactive model here and find some of the IS straighteners key benefits.
Grab your quote now or jump to tech specs further down the page to find your ideal model
Key Benefits
1 Precision-Machined Baseplate
2 Quick-Release Cam Handle
3 Versatile Configuration
4 Customizable Precision Grooved Rolls
5 Digital Precision (Optional Feature)
Why Choose the Inch Series (IS) Straightener?
1. Precision Engineering
2. Stable Design
3. Fast & Easy Adjustments
4. Versatile Design
Industries and Applications
The IS Wire Straightener delivers precise inch-based wire processing, making it perfect for consistent, medium-to-high volume tasks. However, it may not be the best choice for ultra-flexible or large-diameter wires.

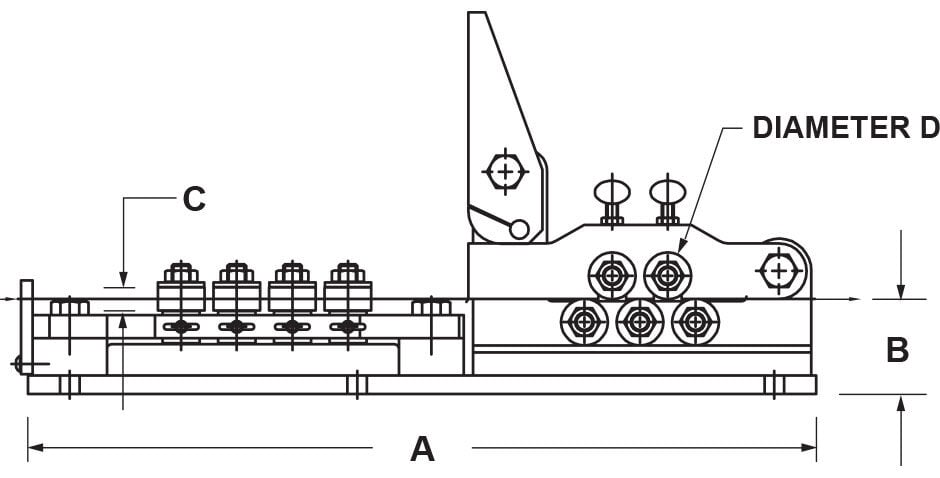

Product Measurements and Technical Specifications
Measurements
| Model | A | B | C | Diameter D |
|---|---|---|---|---|
| S10A | 9.12" | 1.06" | 0.09" | 0.19" |
| S15A | 8.12" | 1.21" | 0.109" | 0.25" |
| 715A | 11.25" | 1.50" | 0.16" | 0.38" |
| 319A | 10.12" | 1.50" | 0.20" | 0.50" |
| 812A | 12.62" | 1.50" | 0.20" | 0.50" |
| 116 | 10.75" | 1.53" | 0.28" | 0.75" |
| 116 (9x9) | 13.00" | 2.00" | 0.28" | 0.75" |
| 507 | 21.25" | 2.56" | 0.62" | 1.26" |
| 507 (9x9) | 23.75" | 2.56" | 0.62" | 1.26" |
| 507N | 13.31" | 2.50" | 0.62" | 1.26" |
| 507JR | 10.82" | 2.25" | 0.62" | 1.26" |
| 245 | 23.00" | 3.18" | 0.88" | 1.85" |
| 169 | 28.25" | 3.62" | 1.05" | 2.44" |
| 353 | 29.25" | 4.25" | 1.12" | 3.25" |
| 377 | 32.00" | 4.62" | 1.50" | 2.75" |
| 342 | 56.00" | 6.88" | 3.50" | 5.75" |
Technical Specifications
| Model | Roll Diameter D | Wire Diameter Range | Rolls per Plane | Total Rolls | Weight (lbs) |
|---|---|---|---|---|---|
| S10A | 0.19" | .0015 - .010" | 21 | 42 | 5.2 |
| S15A | 0.25" | .0015 - .010" | 16 | 32 | 3.1 |
| 715A | 0.38" | .003 - .015" | 14H - 10V | 24 | 7 |
| 319A | 0.50" | .015 - .032" | 16 | 32 | 7 |
| 812A | 0.50" | .015 - .032" | 14H - 10V | 24 | 9 |
| 116 | 0.75" | .030 - .062" | 9H - 5V | 14 | 12 |
| 116 (9x9) | 0.75" | .030 - .062" | 9 | 18 | 12 |
| 507 | 1.26" | .062 - .125" | 9H - 5V | 14 | 60 |
| 507 (9x9) | 1.26" | .062 - .125" | 9 | 18 | 76 |
| 507N | 1.26" | .062 - .125" | 5 | 10 | 20 |
| 507JR | 1.26" | .062 - .125" | 5 | 10 | 17 |
| 245 | 1.85" | .125 - .250" | 7H - 5V | 12 | 110 |
| 169 | 2.44" | .250 - .375" | 7H - 5V | 12 | 185 |
| 353 | 3.25" | .375 - .500" | 5 | 10 | 230 |
| 377 | 2.75" | .500 - .750" | 5 | 10 | 230 |
| 342 | 5.75" | .500 - 1.000" | 5 | 10 | 750 |
Download the Application Data Sheet
Complete the Application Data Sheet to engage our expert engineering team today and implement Sjogren quality IS Straighteners into your production!
See some of our satisfied customers
IS Straightener FAQ
How do I order replacement rolls to stay ahead of downtime?
You can order on our website. Fill out the form below to place your order conveniently! Alternatively, you can email our team directly at sales@sjogren.com.
What are the assembly orientation options for the IS straightener?

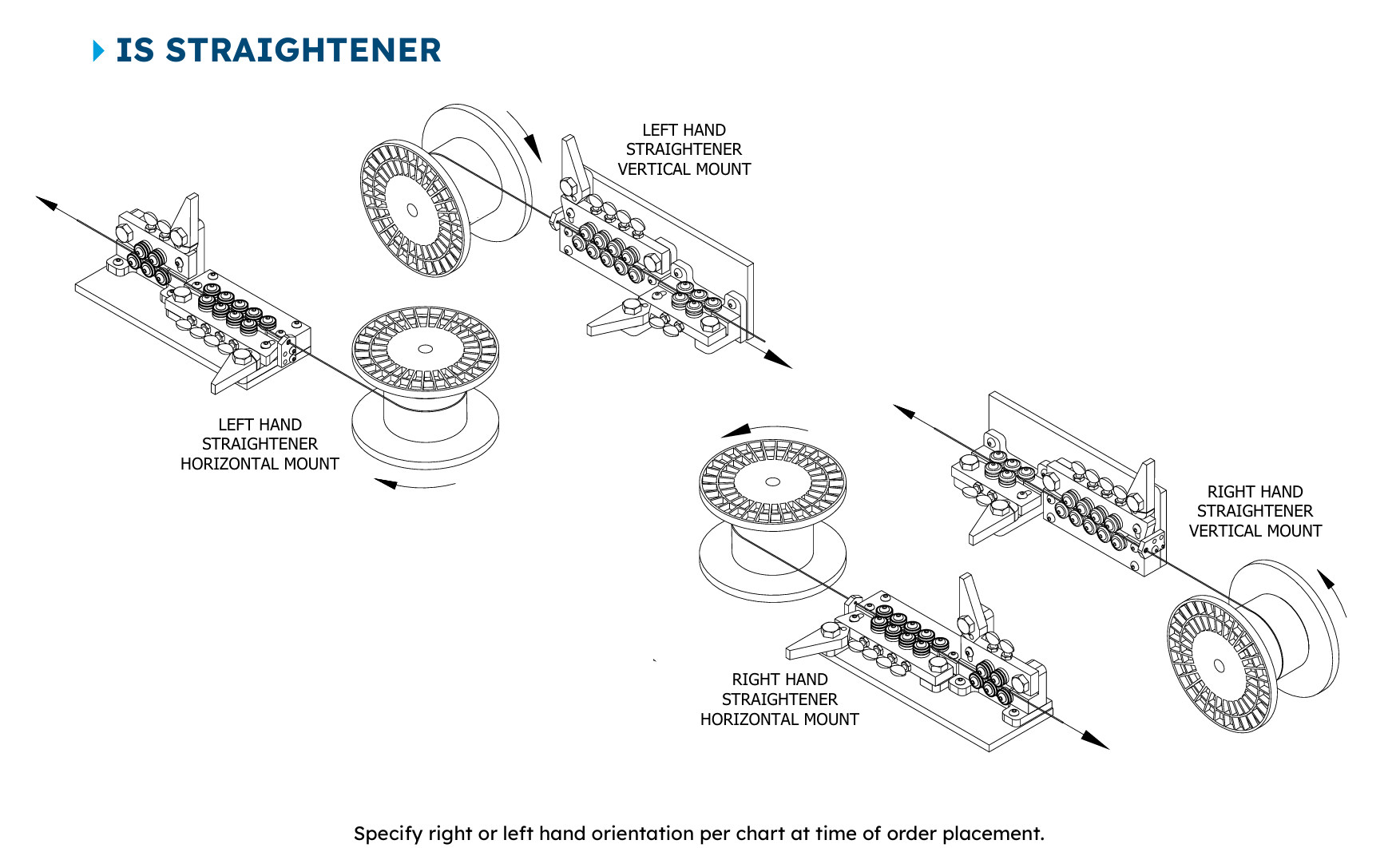

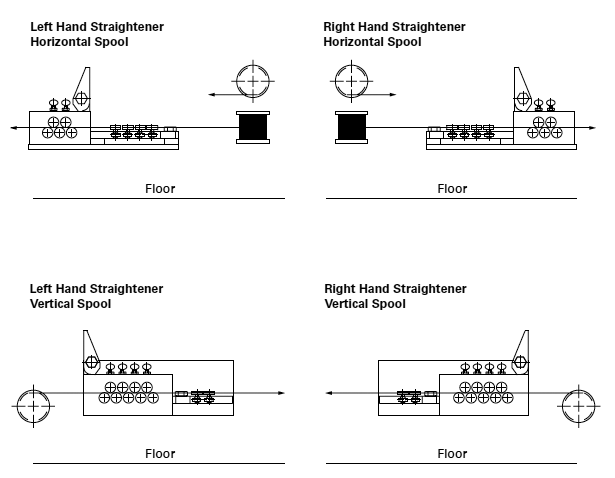

There are 4 assembly orientations for the IS straightener. Review the following image and align your production with the image that matches!
Our team can assess your wire specs and recommend the ideal roll materials, groove designs, and setup for optimal performance. Contact us for a consultation!
Your straightener orientation will be selected based on your current or proposed production setup. Our straightener orientation sheet can provide visual guidance.
What kind of maintenance is required for these straighteners?
Minimal maintenance is required. The precision ball-bearing-supported rolls are greased for life, ensuring long-lasting performance. Regular inspection is recommended, and other parts are replaced very infrequently, but here is a reference guide for your rolls:
It’s all about the roll and the material you are running
Groove Type Material Replacement Frequency VEE Low Carbon 9 months VEE Medium Carbon 6 months VEE High Carbon 3 months VEE Nonferrous 12-18 months Radius Low Carbon 12 months Radius Medium Carbon 9 months Radius High Carbon 6 months Radius Nonferrous 15-21 months Can the IS Wire Straightener withstand high-temperature environments?
Yes, the IS Wire Straightener is built with durable materials and precision machining to perform reliably in high-temperature manufacturing settings.
How do I know the best configuration for my operation?
Our team can assess your wire specs and recommend the ideal roll materials, groove designs, and setup for optimal performance. Contact us for a consultation!
Your straightener orientation will be selected based on your current or proposed production setup. Our straightener orientation sheet can provide visual guidance.
How does the IS Wire Straightener compare to other models in the Sjogren lineup?
The IS Wire Straightener is optimized for inch-based precision applications and offers high durability. If you need metric configurations, the EC straightener is probably a good fit. If you need ultra-heavy-duty processing, we offer other models, like the HD straightener that may be a better fit.
Get Your Custom IS Series Quote – Fast & Reliable Pricing and Delivery!
Tell us your wire processing needs, and our team will provide a tailored quote quickly. Get the best solution for precision wire straightening today!
